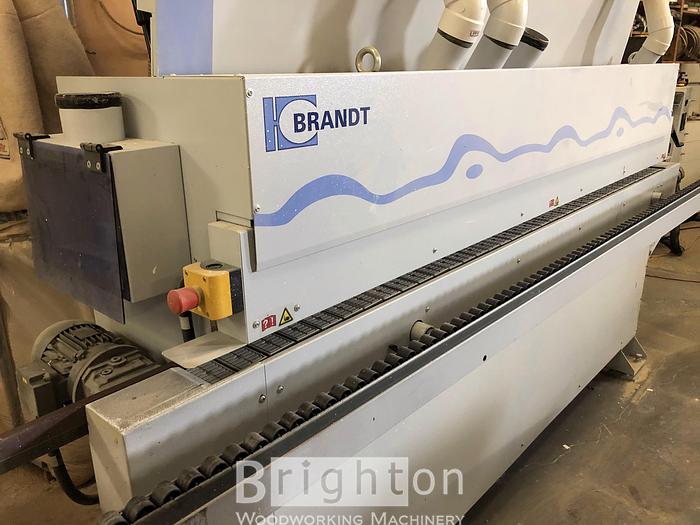

2012 Brandt Ambition 1110F (KDF110) used edgebander with pre-milling
2012 Brandt Ambition 1110F (KDF110) used edgebander with pre-milling
Location:Uxbridge, Canada
Description
Very nice, clean, well cared for German made machine. Featuring Premilling unit and glue scraping unit. Brandt Ambition 1110F (KDF110) used edgebander with pre-milling
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!
All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Brandt |
| Model | Ambition 1110F (KDF110) used edgebander with pre-milling |
| Year | 2012 |
| Condition | Used |
| Serial Number | 0-261-66-8758 |
| Stock Number | BM2176 |
| Quality | Very Good |

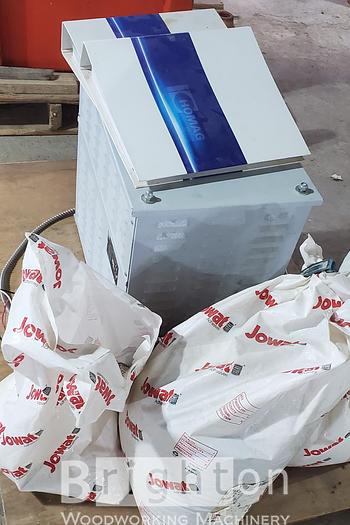

| Electrics | 400 - 230 V / 3 Ph / 60 Hz , 600 V with included transformer. |
Additional Features
Used Brandt Edgebander - Model: Ambition 1110F
This 2012 used edgebander, manufactured by Brandt
Technical Specifications:
016″ to 1/8″ maximum edgebanding thickness capacity
Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness
Minimum panel length: 5-1/2"
Minimum panel width: 2-3/4"
Edgeband height: 5/16 to 1-5/8"

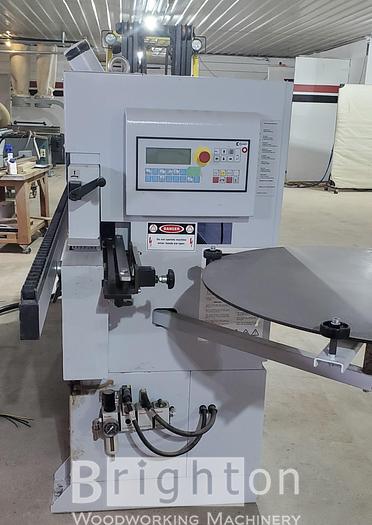

Electronic Easy Control with backlit LCD display
(2) 1 HP 12,000 RPM pre-milling units with diamond cutterheads
Automatic magazine for strip and coil feeding
Hot melt glue pot with 12 minute heat up time
Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15 minute span)
Guillotine for cutting up to 3 mm PVC from the coil
Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system

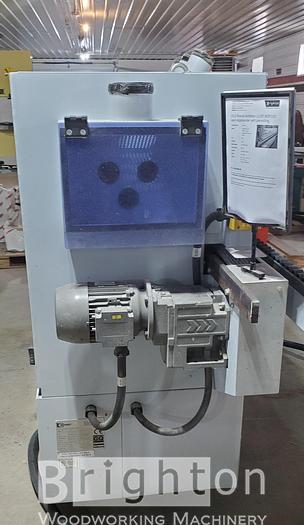

1/4 HP 12,000 RPM double motor end trim .33 HP

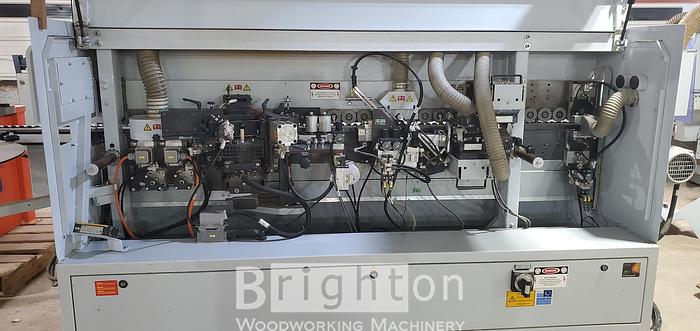

12,000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim, trimming with overhang, and radius/bevel trimming)
Glue scraping unit.
(no Profile scraping, but it can be added as there is space provided).
3/4 HP 1-speed feed with speed of 26 FPM
Digital on top pressure beam for height indication
Adjustable infeed fence with digital readout Automatic height adjustment with top pressure beam for all work stations
Digitals on top and bottom trim station
Dust extraction: (4) 80 mm outlets and (1) 100 mm outlet, 1600 CFM required
Compressed air connection: 6 bar (85 psi)
Machine Weight: 1,650 lbs.
Machine dimensions: 12'1" long x 4' wide
Amperage required @ 230 volt: 30 amps
