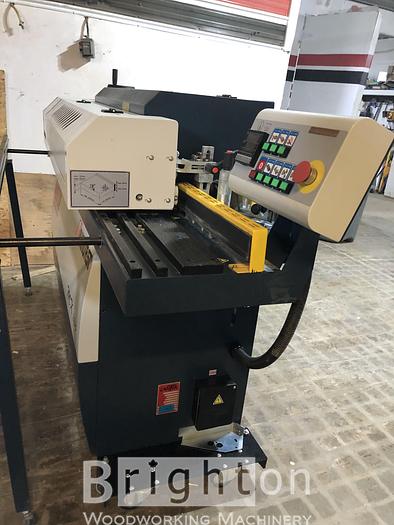

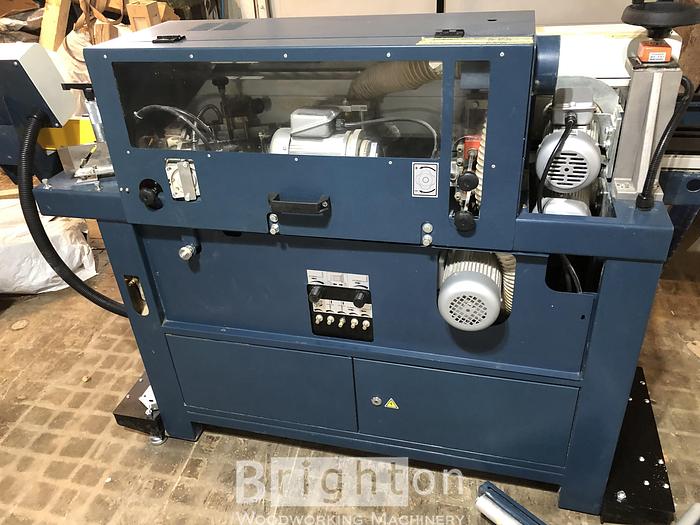

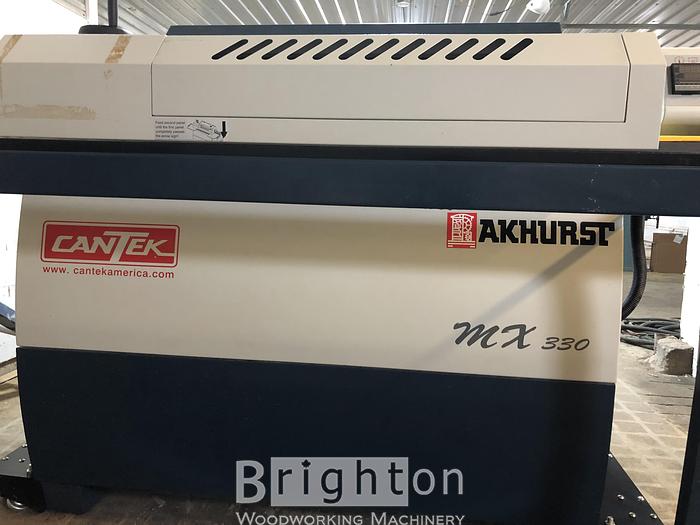

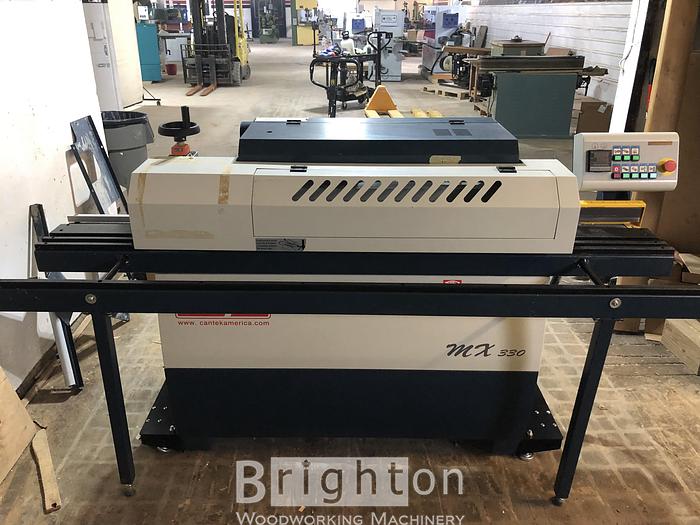

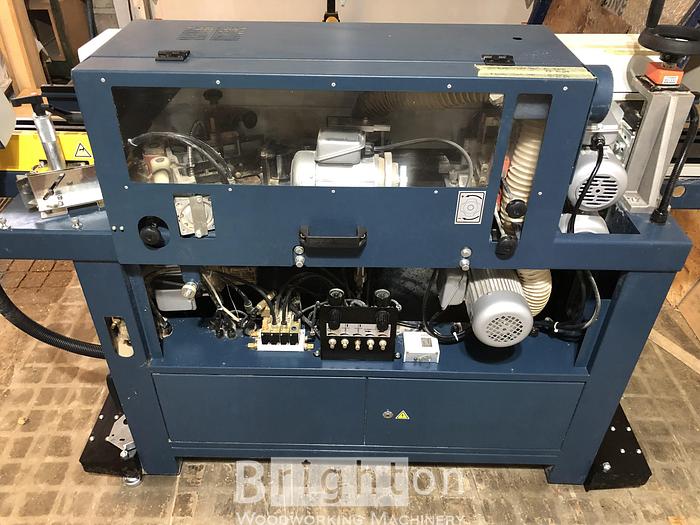

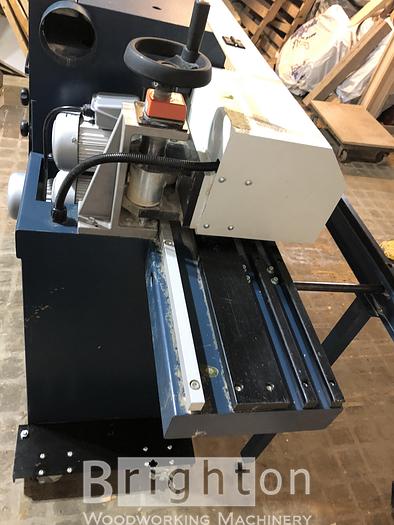

2013 Cantek MX330 used edgebander
2013 Cantek MX330 used edgebander
Location:Uxbridge, Canada
Description
· Entry level edgebander packed with features at an economical price
Specifications
| Manufacturer | Cantek |
| Model | MX330 used edgebander |
| Year | 2013 |
| Condition | Used |
| Stock Number | BM2172 |
| Quality | Very Good |

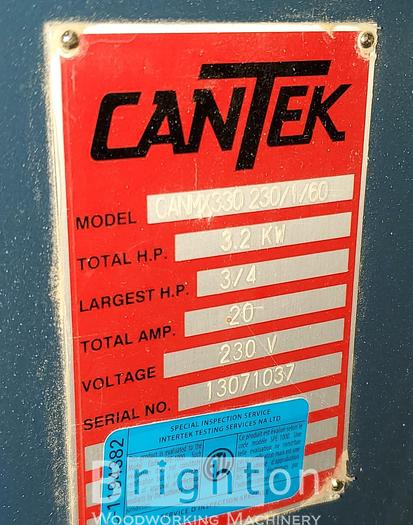

| Electrics | 230V / 1 Ph / 60 Hz |
| Note: | Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!! |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
• Heated infeed fence pre-heats the panel for better glue penetration
• Equipped with 1.1 kg teflon coated glue pot for granulated glue.
• (5) glue pot heating elements ensure a quick heat up time.
• Glue temperature is electronically controlled and is automatically lowered when the machine is not in use.
• Steel serrated glue spindle applied glue to the edge of the material. Can be adjusted for optimum gluing results.
• Pneumatic edgebanding cut off device (max. 3mm) with exclusion from the PLC control
• Dual saw blade flush end trim
• Top & bottom trimmers with mechanical digital readouts for accurate and fast adjustment
• Top & bottom buffing units

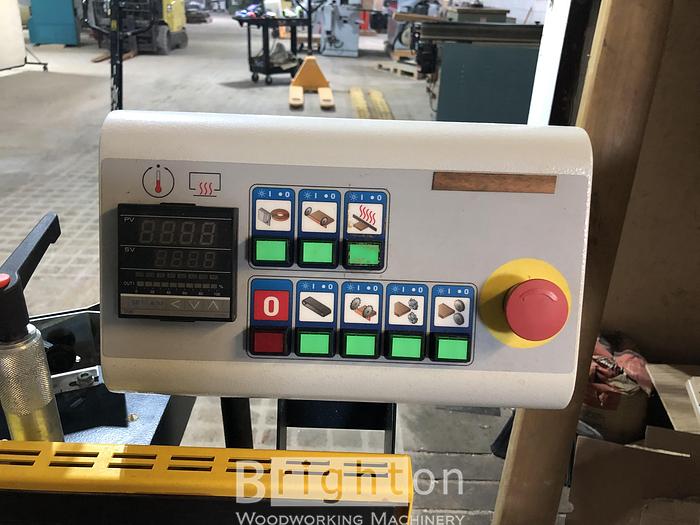

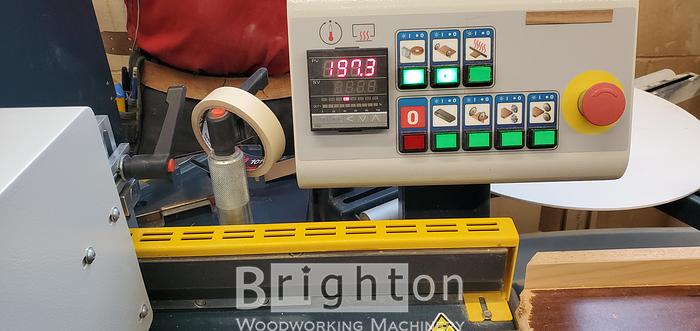

• User friendly PLC control. Working units can be turned on and off individually when not required.
• Automatic feed by belt feed with (11) adjustable table rollers to ensure workpiece is held against the fence
• Numerical panel thickness indicator
• Adjustable infeed fence to compensate for edge thickness
• Extendable side support arm for assisting with larger panels

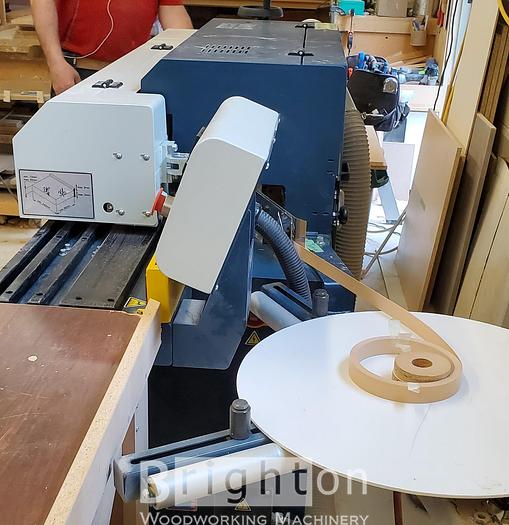

• Coil tape roller support: 800mm capacity
• Belt feed can be opened up for access to machine for blade / buffing wheel change & machine maintenance.
• 4” dust port
SPECIFICATIONS:
Edge thickness capacity
- Coil edge 0.4 Ì´ 3mm
- Strip 4mm
Panel thickness 12 Ì´ 45mm (mechanical panel
thickness readout)
Min. panel length 240mm
Min. panel width 90mm
Heated infeed fence power 0.32 kW
Glue motor 0.18 kW (¼ HP)
Heating elements power 5 pcs. @ 1.13 kW total
End trimming motor 0.18 kW (¼ HP)
Top/Bottom flush trimming
motor
0.56 kW (¾ HP)
Buffing unit 2 @ 0.12 kW
Feed speed 5 m/min
Coil magazine capacity 800mm
Work table length 2000mm
Dust port 4” (100mm)
Total power installed 3.2 kW
Compressed air required 6 kgs/cm2 (85 PSI)
@ 0.75 L/min (0.027 CFM)
Shipping weight 464 kgs. (1021 lbs.)
Shipping dimensions 2110 x 720 x 1260mm
