2006 LOBO ***SOLD*** CS-2145 used Miter Door Machine #BM2170
2006 LOBO ***SOLD*** CS-2145 used Miter Door Machine #BM2170
Location:Ontario, Canada
Description
*Reduced Price!*
Fully automatic cycle function, just place the material against the stops, machine will automatic clamp, move in for shaping, come out and release the hold down.
Fast, safe and labor saving.

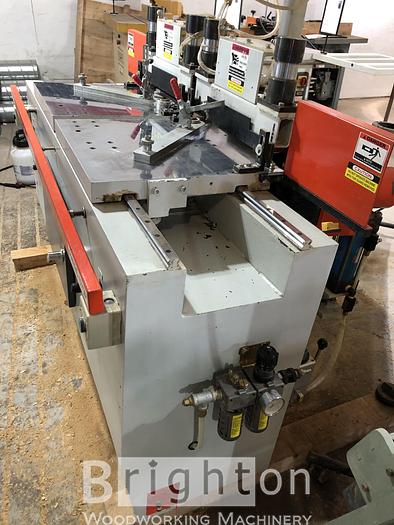

LOBO MACHINERY MODEL #CS-2145 HEAVY DUTY MITER DOOR MACHINE
Specifications
| Manufacturer | LOBO |
| Model | ***SOLD*** CS-2145 used Miter Door Machine |
| Year | 2006 |
| Condition | Used |

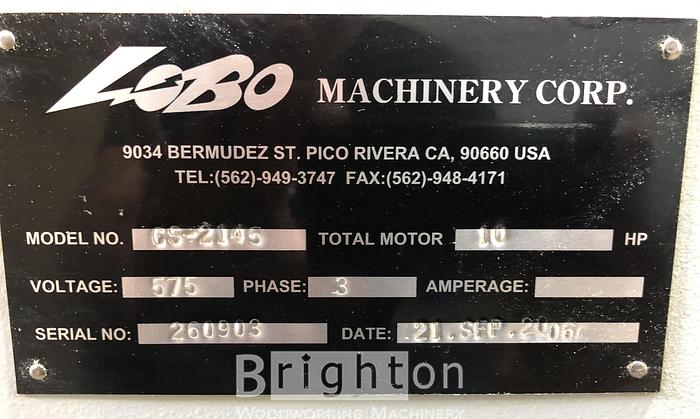

| Serial Number | 260903 |
| Stock Number | BM2170 |
| Quality | Very Good |
| Electrics | 575V / 3 Ph / 60 Hz |
| Weight | 2800 LBS |
| Note: | Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!! |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features

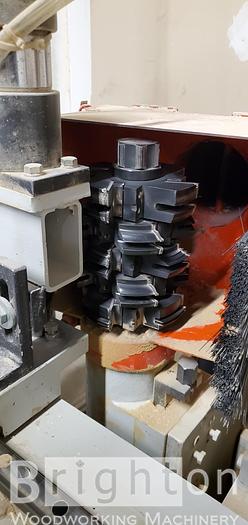

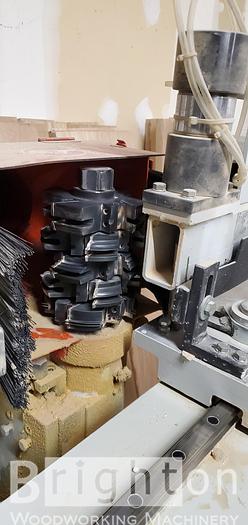

The 6" high stackable spindle by pneumatic up & down with 3 different stops are easily and accurately setup for each cutter position.
Table moves from right to left by variable speed pneumatic-hydraulic power to achieve the full cutting power.

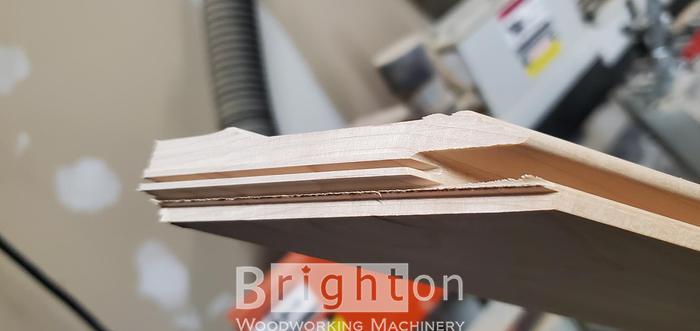

Twin table moves in and out separately for tongue and groove, end match application.

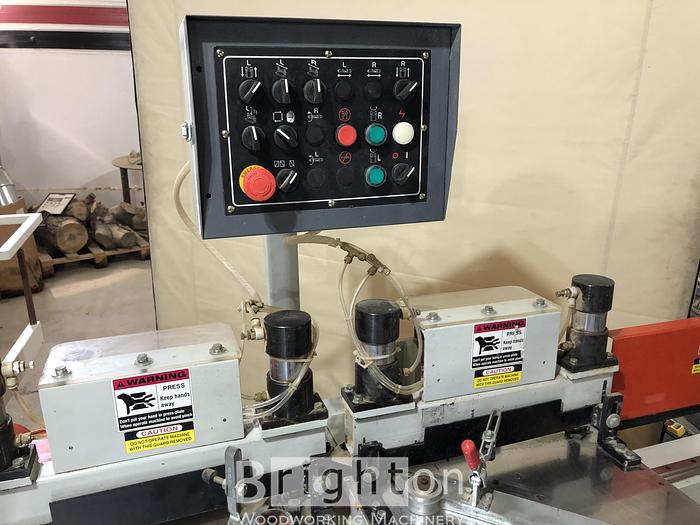

Twin heavy-duty pneumatic pistons hold down the workpieces tightly to the table during the cutting process.
Rigid construction on the heavy sheet metal frame, case iron table & base for durability usage.
Heavy duty industrial motor is suitable for heavy duty cutting under full load.
Linear guide rails and bearings let the operator moving the table smoothly.

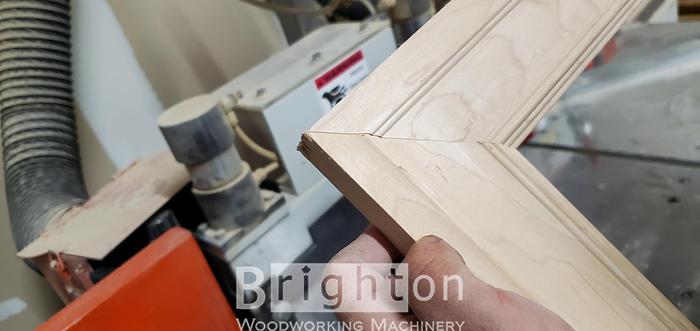

Cast iron fence locks in the table groove to finish 45-degree cut easily.
Max. Cutting Length: Unlimited
Max. Cutting Width (45 degree): 9"
Max. Cutting Width (90 Degree): 11"
Max. Cutter Diameter: 6" Dia
Spindle Diameter: 1-1/4"
Spindle Length: 7" (Stackable)
Spindle Speed: 9000 RPM
Main Motor: 5HP x 2
Dust Hood: 4" x 2
