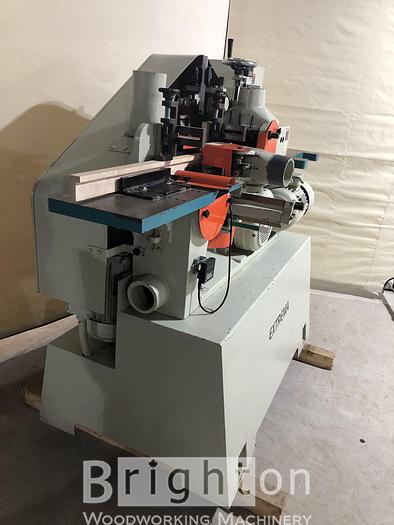

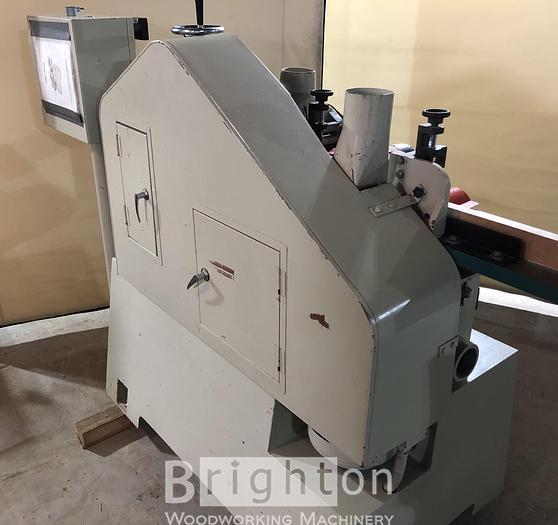

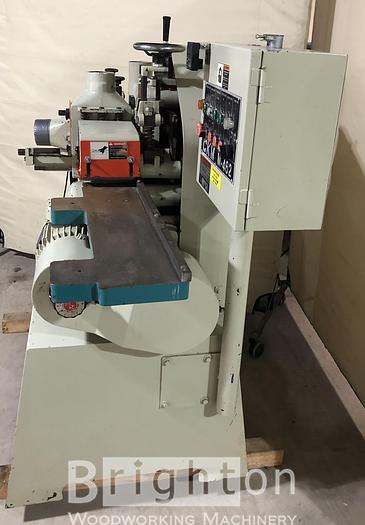

2004 Extrema CKM M-462 Used Push Feed Moulder
2004 Extrema CKM M-462 Used Push Feed Moulder
Location:Ontario, Canada
Available quantity:1
Description

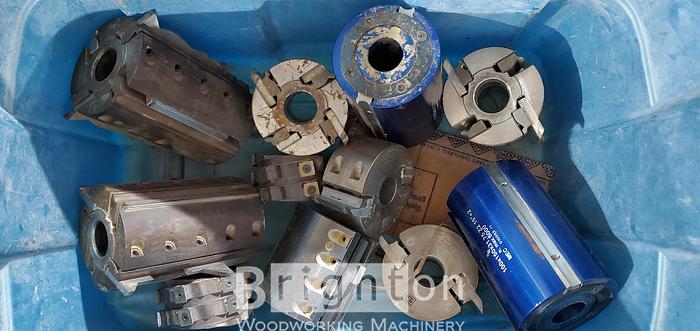

Very nice compact push feed moulder. 2" x 6" capacity. Cutters included (please see pics).
10HP motor -Top & Bottom Heads , 5HP motor - 2 Side heads & 2HP Variable speed. Capacity - 2" x 6" (TxW)
Extrema CKM M-462 Used Moulder
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!
All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Extrema |
| Model | CKM M-462 Used Push Feed Moulder |
| Year | 2004 |
| Condition | Used |

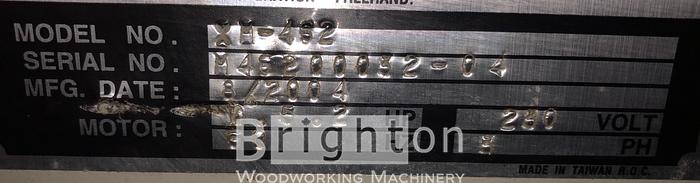

| Serial Number | M462200032-04 |
| Stock Number | BM2131 |
| Quality | Very Good |
| Electrics | 230 V / 3 Ph / 60 Hz |
| Weight | 1650 lbs |
| Shipping Dimensions | 76" L x 32" W x 55" H |
Additional Features
RPM of cutterheads: 6000 RPM
Cutterheads:
- Side Heads: 2-1/4" Thickness
- Top & Bottom Heads: 6" Width
Spindle diameter: 1-1/4"
Feed Rolls (Power Driven):
- 3" diam. Upper Rolls corrugated-2pcs
- Bottom Rolls Smooth-2pcs
Capacity: 2″ x 6″
Top & Bottom Spindle Motor HP: 10
Left & Right Spindles Motor HP: 5

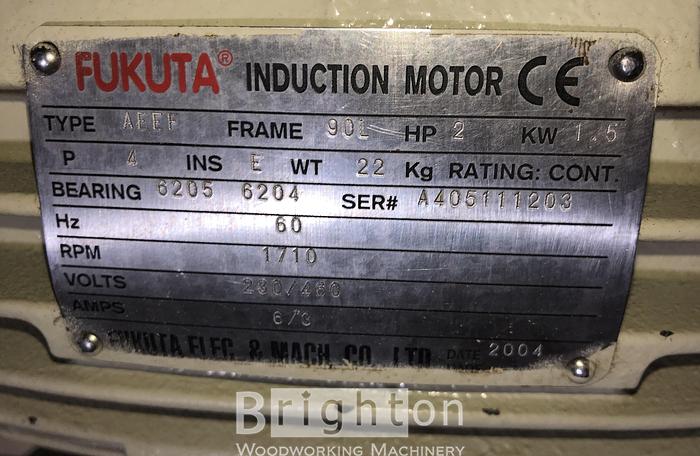

Variable Speed Feed Roll Drive Motor HP: 2
