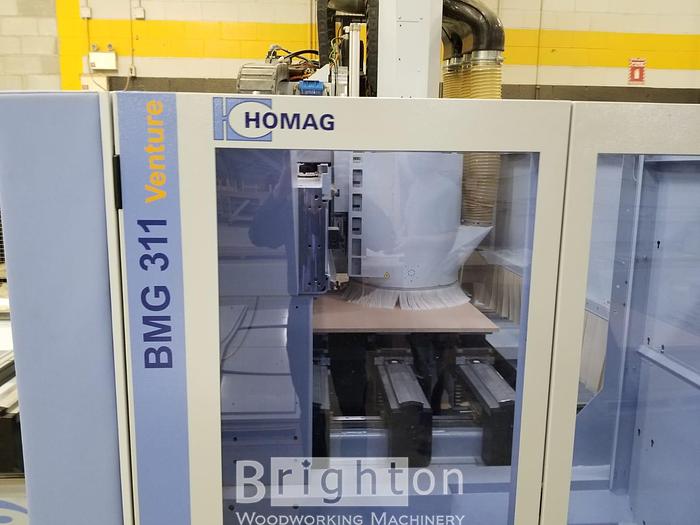

2016 Homag BMG 311 pre-owned Pod and Rail, 5 axis cnc machine
2016 Homag BMG 311 pre-owned Pod and Rail, 5 axis cnc machine
Location:Ontario, Canada
Description
This amazing 5 axis CNC centre boasts "programmable motorized consoles" and a 15kw router motor,
17 Vertical Drills, 4 Horizontal Drills, a sawblade and an 18 position carousel Automatic tool changer!
Specifications
| Manufacturer | Homag |
| Model | BMG 311 pre-owned Pod and Rail, 5 axis cnc machine |
| Year | 2016 |
| Condition | Used |
| Stock Number | BBM2127 |
| Quality | Very Good |

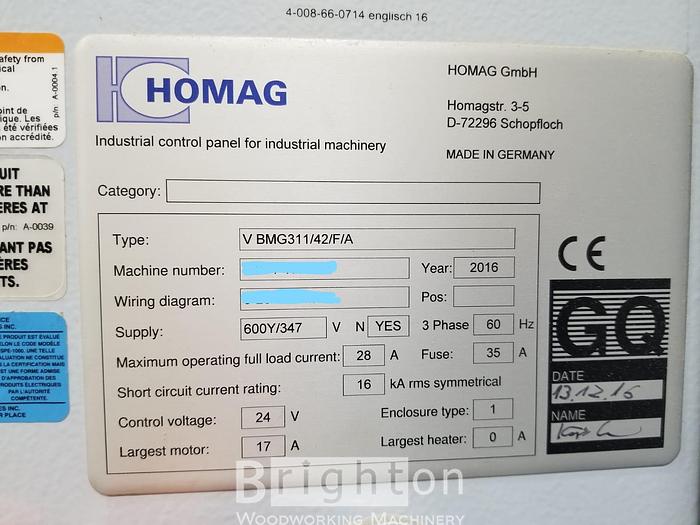

| Electrics | 600 V / 3Ph / 60 Hz |
| Note: | Click INSTANT PRICE anywhere you see it on www.brightonmachines.com to receive an instant auto-quote directly to your email!! |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
Make: Homag
Model: BMG311/42/F/A
Year of manufacture……….. 2016.
5ft x 12ft pod and rail table.
Programmable motorized Pod and Rail consoles!
Working dimension Z…….. 250.
Main motor power kW…… 15.
5 axis machine.
17 Vertical Drills, 4 horizontal including a sawblade.
Tool change slots in Carousel …….. 18.
Lock recess milling aggregate…. Yes.
Machine table …………….. Pod and rail table.
Floor space required........8m along the X axis by 4.6m in the Y axis
Machine control……… HOMAG POWER CONTROL PC 85.
Workpiece support aids ………... yes.
Handheld terminal…………. Yes.
HOLZMA Technology ecoPlus…… yes.
HOMAG Quality package…. Yes.
Number of milling spindles……. .. 1 .
Rotation speed max rpm ………. 24000.
Torque support …………… yes.
Tool clamping system HSK-F63.
Number of consoles…… 10. (These are motorised but can also be run in manual mode as needed)
Vacuum pump….. yes.
Vacuum pumps are 2x Busch RA0063F
Safety device……….. Bumper.
CE marking……. Yes.
ESA approval…… yes.
Operating status……. still in production use
Reason for selling…….. replacing with new nest CNC.
