1999 Griggio CA 400 used 10ft sliding table saw
1999 Griggio CA 400 used 10ft sliding table saw
Location:Uxbridge, Canada
Description

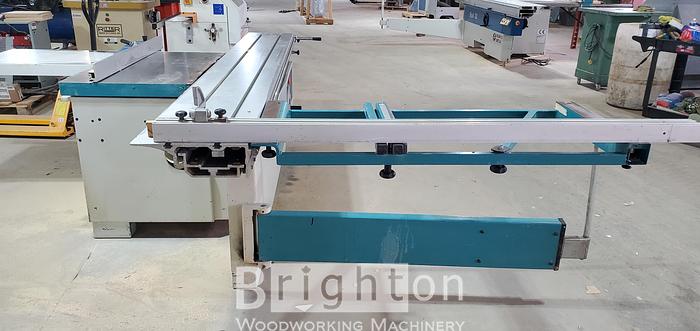

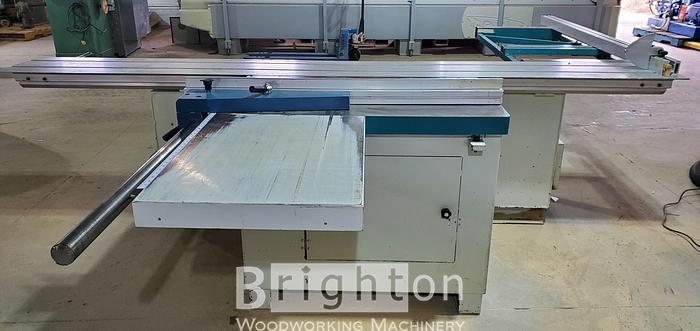

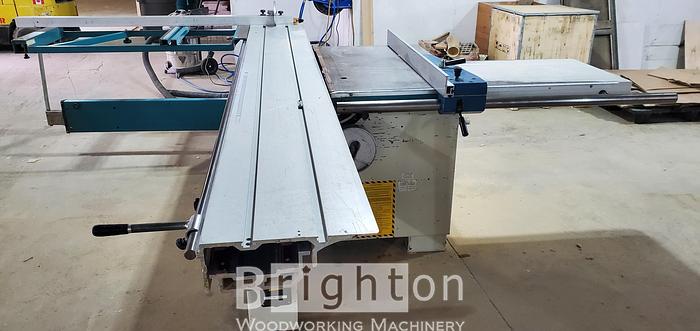

1999 Griggio model CA 400 used 10ft sliding table saw
"note: click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"
Specifications
| Manufacturer | Griggio |
| Model | CA 400 used 10ft sliding table saw |
| Year | 1999 |
| Condition | Used |
| Stock Number | BMC2125 |
| Quality | Very Good |
| Electrics | 600 V / 3 Ph / 60 Hz |
| Weight | 1800 lbs |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
CA 400 PANEL SAW / SLIDING TABLE (10ft) 3200 MM
Panel saw with tilting blade
* Lifting and tilting movements of the blade
through handwheels
Technical data:
- Sliding table sizes:
- CA 400/3200 385x3200 mm.
- Cross-cut capacity sliding table 3200 3260 mm.
- Main blade dia. 400 mm.
- 1 rotation speed 4000 r.p.m.
- Cut height at 90° 130 mm.
- Cut height at 45° 90 mm.
- Scoring blade dia. 125 mm.
- 2 suction hoods dia. 100 - 120 mm.
- Motor power 7,5 hp (5,5 kw)
- Net weight CA 400 820 kg.
The machines are equipped with:
- Scoring unit with separate motor
- Aluminium carriage sliding on high precision
steel bars
- Anodized carriage and profiles
- Rip fence with micrometric adjustment
