2008 Homag Brandt KDN 210 used edgebander
2008 Homag Brandt KDN 210 used edgebander
Location:Ontario, Canada
Description
Homag, Brandt KDN 210 used edgebander.
"note: click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"
Specifications
| Manufacturer | Homag |
| Model | Brandt KDN 210 used edgebander |
| Year | 2008 |
| Condition | Used |
| Serial Number | 0-261-20-1300 |
| Stock Number | BM2101 |
| Quality | Very Good |

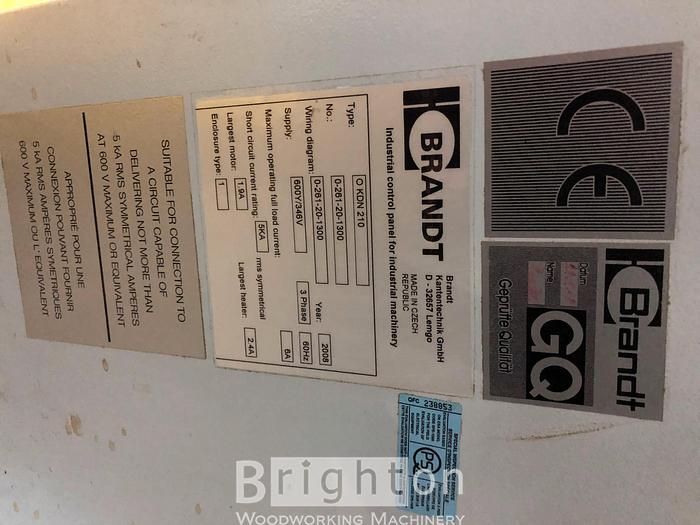

| Electrics | 600 V / 3 Ph / 60 Hz |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
BRANDT KDN 210B Edgebander:
0.4 - 3 mm (1/8") Edge thickness cap., 8 - 50 mm (0.3" - 2") panel thickness, 60 mm (2.3") min. panel width and 140 mm (5-1/2") min. length.
Equipped with:
-- Hot Melt granulate glue system with "Quick Melt" start-up (10 - 12 Min heat-up) with reversible rotation glue applicator roller and automatic reduction glue temperature adjustment (when idle drops to 150°, 2-1/2 Min to re-activate).
-- Automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock are fed automatically through strip feed magazine.
-- 3-Roller pressure section (1st driven, next (2) idle) w/electronically controlled and feed speed synchronized drive roll.
Workstations:
-- Vertical travel double-motor front & rear end trim with tilting of 0°- 15° cap. (0.24 HP - 12,000 RPM motors).
-- Top & bottom flush/bevel trimmers (0.36 HP - 12,000 RPM motors), bevel 0° to 15°.
-- Top & bottom buffing unit (0.15 HP - 2,750 RPM motors).
-- Feed speed of 30 FPM.
