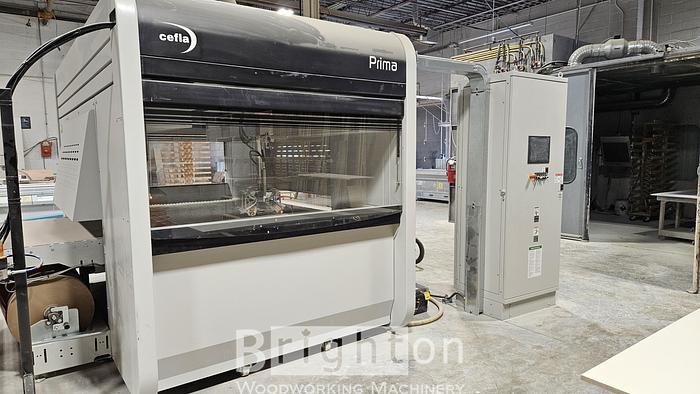

2021 Cefla Prima very lightly used automatic paint spray system #BBM2665

The Prima oscillating spraying machine is equipped with one arm. It is ideal for manufacturers, who are looking for economic savings linked to high flexibility and productivity. It was designed with 3D laser technology and it is compact and built on a solid structure complete with a spraying chamber equipped with glass access doors on each of its extremities.

MACHINE DESCRIPTION:
MAIN FEATURES
-The machine has a compact design, it is versatile and user friendly
-Infeed and outfeed extended conveyors
-Control Panel with PLC screen is positioned as per the customer’s facility requirement
-Workpieces infeed laser reading system
-Vacuum assisted continuous paper feed conveyor
-Axis controlled spraying arm displacement is by means of a brushless motor assisted with a timing belt
-Ambient air intake from machine top
-Overspray exhaust through double downdraft filtration dry filters, placed at conveyor sides and mounted on simple "Pull Out" assemblies for ease of filters replacement
-Easily removable feed conveyor paper spools containing up to 2500m (8200LF) of paper

RECIPROCATING GUN ARM
The newly conceived central arm allows for excellent coating application and lacquer saving,
also resulting in less environmental impact.
The central positioning of the arm makes the replacement of spray guns easy; it can accept up to
4 spray guns of either low high
pressure.
To facilitate maintenance of spray guns, an improved access in "Manual Mode" is provided.
The central axis carries (1x) fixed gun support arm complete with height adjustment selected by
manual set up. Predisposition for four (4x) guns mounts (fluid management; guns & pumps are
not included)
Four (4x) high pressure coating feeding circuits with recirculation and coating filter all with
stainless steel fittings: 3x colors + 1x solvent.
Manual valve color change.

ELECTRONIC CONTROL CABINET

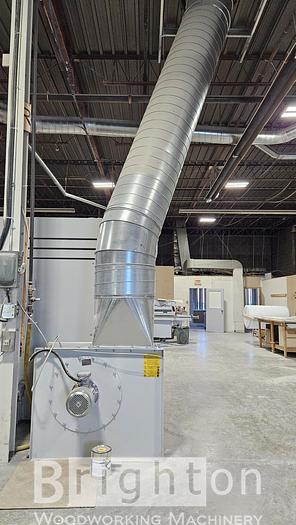

OVERSPRAY SUCTION SYSTEM
Consisting of a double set of dry filters for the separation of lacquer particles from sucked air; an efficient solution to reduce
maintenance costs.
The extremely large filtering surface ensures effective air flows; machine is cleaner and finishing quality is homogeneous.
MACHINE OPERATION
The spraying machine can be controlled by a single operator who carries out both the loading and unloading.
Alternatively, for a greater productivity by two operators working simultaneously on the machine, managing in this way any
workload peaks.
The electronic control unit comes equipped with a PLC and state of the art software assisting in
the machine managing, all is driven by a 5" touch screen.
The main control cabinet is usually positioned at the machine infeed, next to the service side of
the spraying chamber. It comes equipped with extra electrical cable and wiring harness length in
order to facilitate most production floor set up positioning requirement.
Spraying parameters managing is operated by PLC with:
l Working programs set up
l Black/white "touch" display, for diagnostic and control
l Possibility to exchange data via USB memory stick

Included option:
1x Driven infeed / outfeed tiltable roller section; length 1000 mm

TECHNICAL FEATURES:
Machine includes additional circuit (3+1 circuits)
NOTE: Please provide for a compressed air line of up to 55 CFM, possibly distributed as such:
25 CFM pump system
16 CFM guns or 4 CFM per gun
14 CFM for the basic operation of the cabin spray
NOTE: The CFM units indicated above are by way of information only, units may vary depending on your machine configuration and or specific application.
Machine total length 3400 mm (11" 2")
Machine total width 4100 mm (13' 5")
Machine structure height 2400 mm (7' 11")
Conveyor speed, adjustable by mean of inverter 13
m/min (3 to 10 fpm)
Maximum speed of guns holding unit 140 m/min (450 fpm)
Drive motor power (flameproof execution) 0.37 kW
Guns handling system motor power 2.2 kW
Suction motor power 4.0 kW
Installed electric power (any complementary equipment: excluded) 7.6 kW
ATEX 2G execution, with explosionproof
motors Included
Compressed air consumption (fluid management; guns + pumps: excluded) 300 Nl/min (11 CFM)
Air mixed up with solvents exhausted outside 8000 mc/h (4700 CFM)
Air to be made up in the room 8000 mc/h (4700 CFM)
Paper width 1520 mm (5')
Paper spool max diameter 550 mm

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
