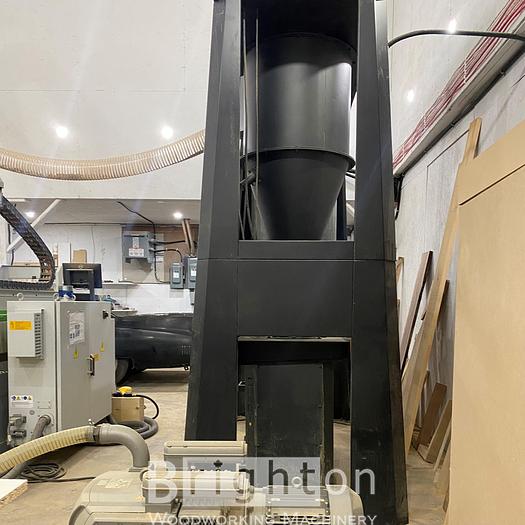

2014 Laguna TFLUX 10 used dust collector #BBM2653

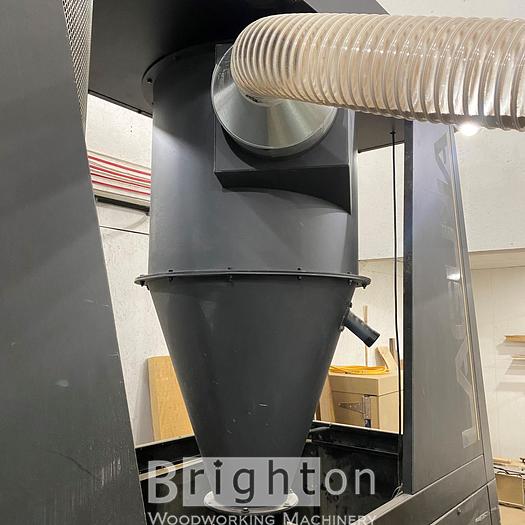

The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop.

Specifications:

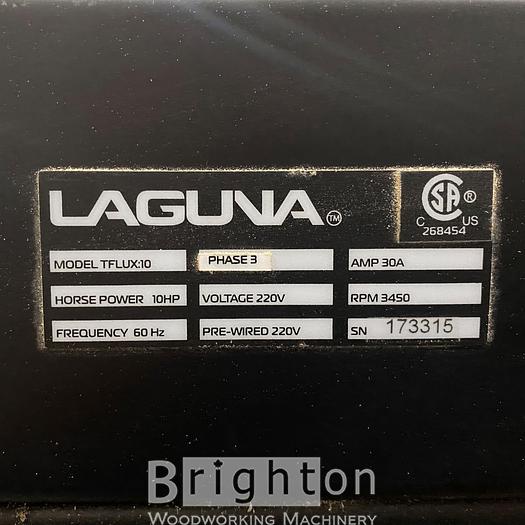

Motor HP: 10 HP
Phase: 3
Voltage: 220V
Amps: 30 Amps
Hertz: 60
Plug: No
RPM: 3450

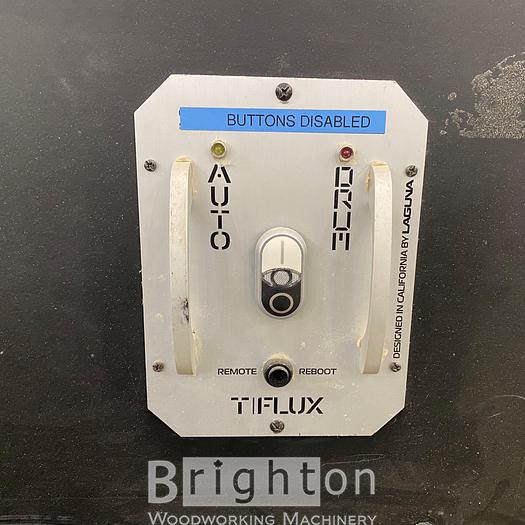

Switch type: Sunken Radio Frequency Remote switch with LED Full drum detection & LED Filter dirty detection

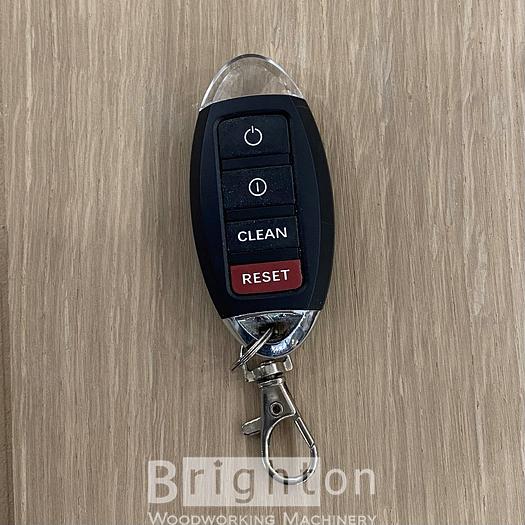

Hand held remote control: High Frequency
Shop Setting CFM*: 4030
Inlet CFM: 6957
Max Static Pressure (inches of water): 16.8″
Impeller/Fan Size: 18.5″
Impeller Material: Steel
Impeller Type: Radial Fin
How was fan balanced? To what specs?: ISO 1940
Inlet Diameters: 12″

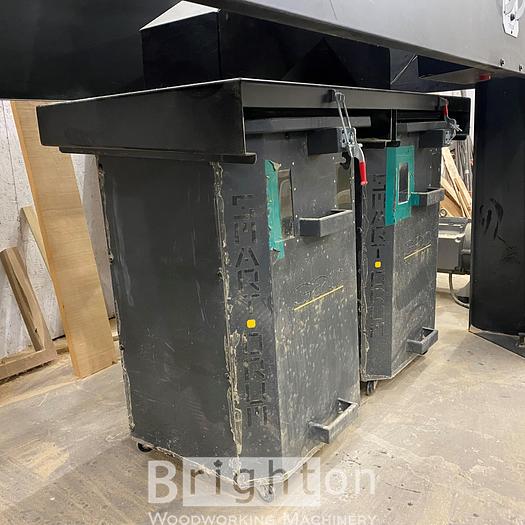

Drum Capacity: 54Gal. X 2sets
Octagon Drum: Low Pressure Suction
Drum Collection Bag (Dia. x L): Plastic bag (Ø740 x 1300mmL)

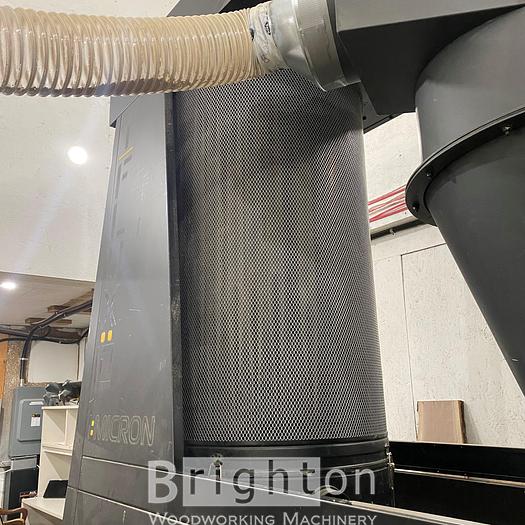

Canister Filter Type: Black 1 Micron
Filtration Efficiency: 0.2-2micron @99.97%
MERV Rating: 12
Canister diameter: Ø750mm (29.53″)
Canister length: 1200mm (47.24″)
Filter Surface Area: 19.2m²/207ft²
Canister cleaning: Auto Clean (gear motor)/Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
Canister filter lower dust collection: Plastic bag (Ø740 x 600mmL)
Wheels: None
US/CSA Approved: Yes
Decibel Reading: 81 d B(A) (@9.8ft)
Machine weight: 590kgs/1301Lbs
Shipping weight: 735kgs/1621Lbs

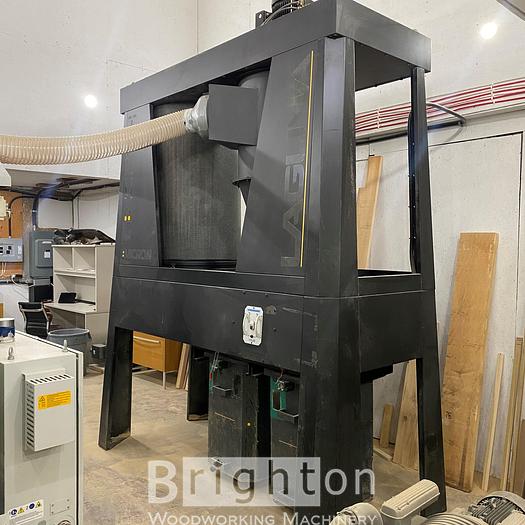

Assembled Dimensions (L x W x H): 2530 x 1225 x 3337 mm

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
