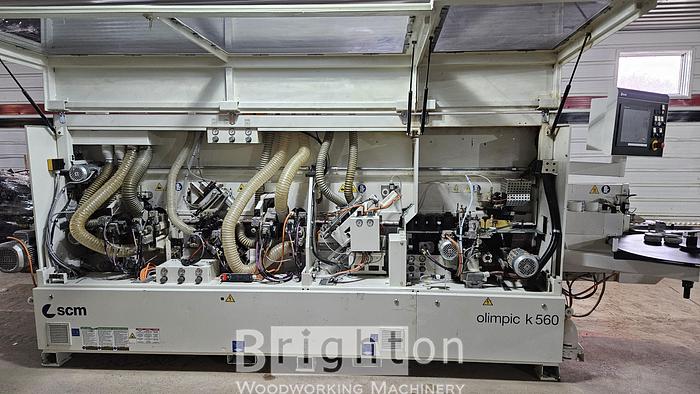

2018 SCM ****SOLD***Olimpic K560 HP/TER2 Used Edgebander #BM2646

Specifications
230 V
65 A
3 Phase
Mfg Year: 2018

SGP Glue Pot System

HP Servo Motor System

Technician calibrated and approved ☑

Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 8mm.

Machine Base

The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy.

Electronic Top Pressure Beam

All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has two rows of staggered pressure rollers with steel bearings.

Capacities and Speed
Glue Station
Edgebanding thickness: .4mm – 8mm (.016-5/16”)
Guillotine capacity: 3mm
Feed speed: 40/60 ft/min.
Panel height: 3/8” min – 2 1/8” max
Minimum panel length: 5 1/2”
Minimum panel width: 2 3/8”
Minimum distance between panels: 20”
SCM Innovative “SGP” Smart Glue Pot System
Servo Driven Pressure Section
There are a total of four pressure rollers for pressing the banding to the workpiece edge. The first roller is powered and is also Teflon coated to prevent the banding material from slipping. The three idle rollers have opposing one-degree tilt to provide extra pressure along the top and bottom edge. The machine comes standard with an automatic strip magazine. Comes standard with servo driven positioning that requires no manual intervention from the operator. The glue pot is Teflon coated and has a 5.5lb. capacity. Comes equipped with a quick change feature that allows the operator to remove the glue pot in less than two minutes.

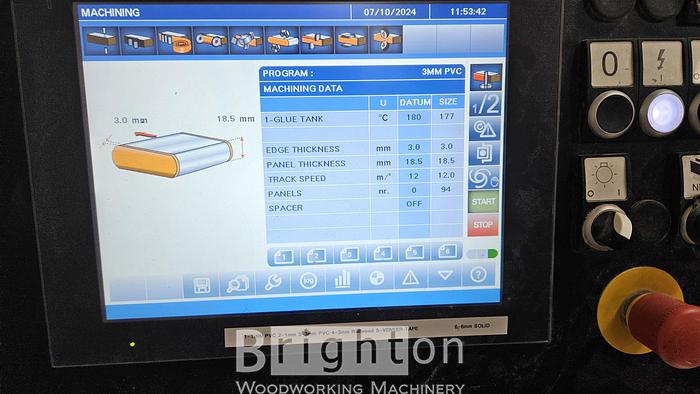

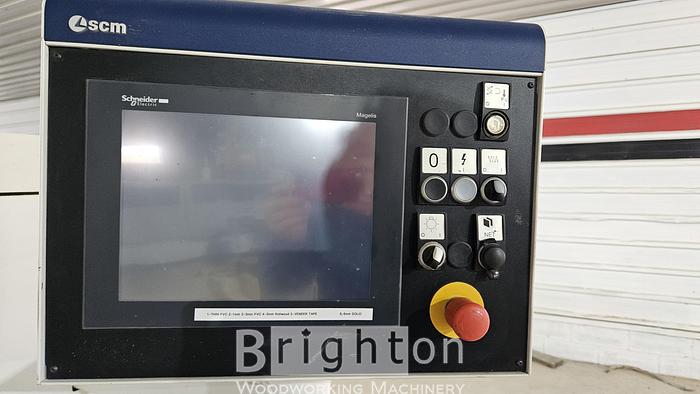

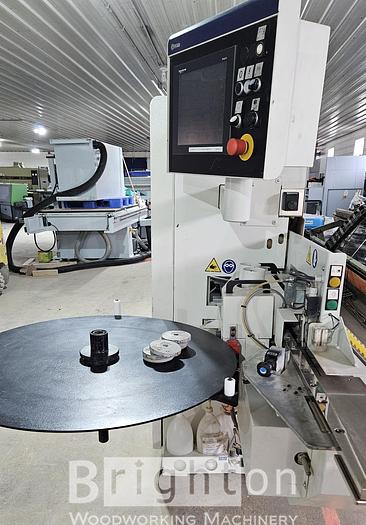

Startouch Controller

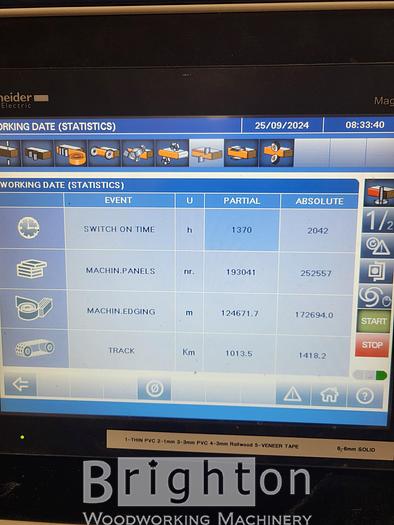

The K 560 comes equipped with the “Startouch” controller. This controller features a 12″ touch screen display. Capable of storing 100 programs. Color graphic display of all the working units. Tracks production information, diagnostic information and monitors maintenance schedules. Choose mm’s or inches, as well as 5 different languages. Swivels 270 degrees and tilts for easy access.

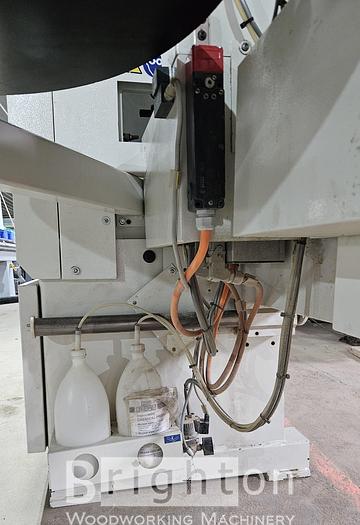

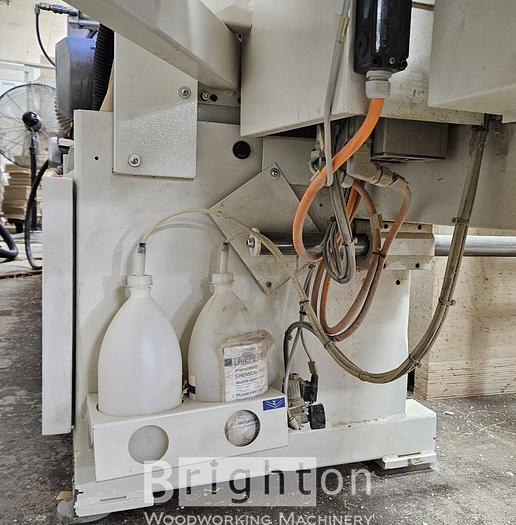

Anti-Adhesive
The machine comes equipped with an anti-adhesive unit positioned prior to the pre milling unit. It prevents the buildup of glue on the top and bottom of the panel. The unit comes with two independent nozzles and a tank of anti- adhesive liquid.

Adjustable Infeed Fence
The infeed fence is manually adjustable with a mechanical digital readout for determining stock removal.

RT-V Pre-Milling Station
To rectify/clean panels already sized and squared before the edge is applied. The unit is composed of two high frequency motors (2.0hp) with jumping action controlled through the PLC. The cutting heads are adjustable vertically. Diamond cutters are standard with 49mm height.

K-SEL 2” End Trimming Station
This unit is composed of two independent .50 hp motors mounted on THK guides. End trim utilizes a draw cut system for reduced blade projection on thick panels. The unit comes standard with automatic tilting of the unit from the control panel with two preset positions.

R-HP Multi Edge 2R Trimming Station
This unit is composed of two independent .7 hp motors operating at 12,000 rpm. It comes standard with servo positioning to process TWO different radii and infinite thin edges all through the controller. Independently controlled positioning, ie radius on top and straight edge on the bottom. Four different controlled axes adjustments. The unit has top/bottom/side copy wheels. The motors have quick release plugs to facilitate tooling changes. Unit comes equipped with the nesting package from the factory.

“ROUND-X” Multi Edge Corner Rounding Unit
Two independent .50hp motors that slide on THK guides ensuring the highest quality finish. Servo positioning allows for the finishing of various thin edges and thick edge. Two controlled axes adjustments through the controller. Unit is designed to work as an additional set of trimmers for rounding the top/bottom as well as the front/rear corners of work piece with 3mm PVC edges. The unit is equipped with front and lateral copying devices and pneumatic blowers to clean the panel. Dust shrouds surround the cutter and travel with the unit as it trims. The unit can go from thin tape to 3mm PVC, through the controller, with no manual adjustments by the operator.

RAS Multi Edge 2R Profile Scraping Station
The profile scraping station designed to remove knife marks from thick PVC. The unit is equipped with servo positioning to process TWO different radii. Includes tool with two different radii, four controlled axes adjustments and the ability to independently control the top from the bottom. It has a large diameter horizontal copy wheel and side copy wheel device. Unit comes equipped with the nesting package from the factory.

RC-V Glue Scraping Unit
The unit eliminates any excess glue to help improve the quality of the glue joint. It comes standard with double copy wheels on the top and bottom of the panel, air blowers are standard to help keep the knives clean, the off fall is collected in the collection bin and it is pneumatically positioned through the controller.

SP-V Buffing Unit
The buffing unit has two .25 hp motors. It can also be tilted up to 12 degrees to provide a softer, more refined edge finish.

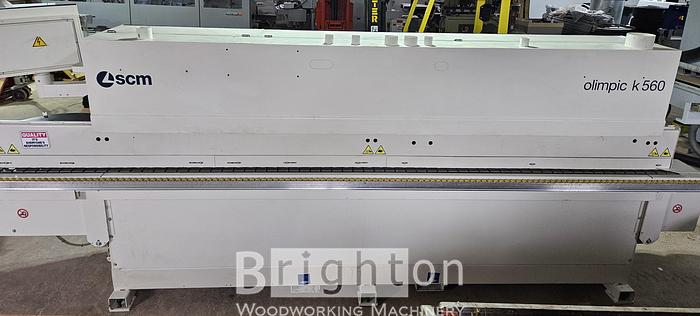

Acoustical Safety Enclosure
All working units are enclosed under an acoustical safety hood to reduce noise and prevent accidents. The hood has a safety microswitch which prevents the machine from operating when the hood is open.

Centralized Dust Extraction
Machine comes with two 3” ports for the premilling station, two 2” ports for the top and bottom trim station and one 3” port for the 3mm collection bin for extraction.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
