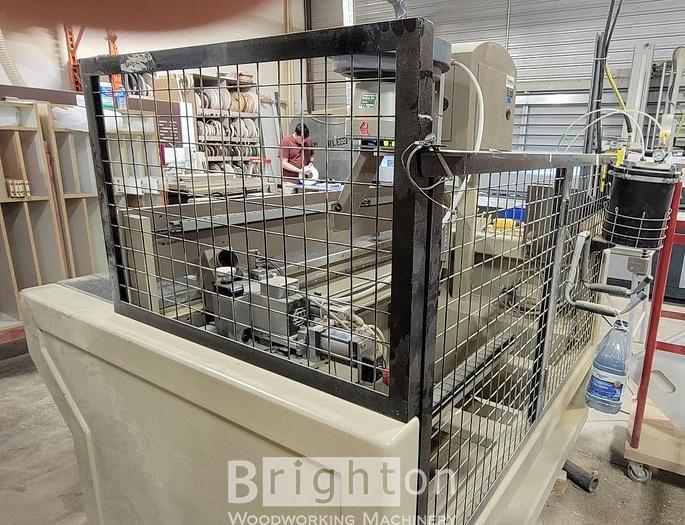

2007 Accu-systems *SOLD* HPJ-7 used Drill and Dowel Inserter #BBM2639

The 2007 Accu-systems HPJ-7 is a high-precision, used drill and dowel inserter designed for woodworking and cabinetry applications. This machine features a robust and reliable construction, ideal for high-volume production environments. It is engineered to drill horizontal, vertical, and face holes with accuracy, while simultaneously inserting dowels, streamlining the assembly process. The HPJ-7 is equipped with an easy-to-use control panel for setting drilling patterns and dowel insertion depths, ensuring consistency and reducing setup times. Its compact footprint makes it a space-efficient solution, and it is capable of handling a variety of wood materials with different thicknesses. This model is noted for its durability and consistent performance, making it a valuable addition to any woodworking shop.

Features:

Two (2) Working Zones (LH / RH) of 24" each and a table length of 49"; CNC controlled head assembly with rapid (side-to-side) traverse.

Standard head assembly with (1) boring, gluing & dowel insertion unit with a 2 HP - 3,500 RPM drill motor

Max. dowel length 1.365" (35 mm); up to 1.125" (28.5 mm) material thickness with digital readout for height adjustment.

Four (4) Pneumatic, quick side to side adjustable hold-down clamps.

Selector control for boring only or doweling, adjustable drilling speed.

One (1) 18" Dia. vibratory feed hopper, totally sealed electronically metered glue system with 1-button flushing, 100 PSI high power glue pump

Anti-slip table surface, rack & pinion drive, and centralized dust collection manifold.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
