2019 Belfab Pyradia 3672DT Used Downdraft Table SN:2019-01-34307-4 #BM2512-2

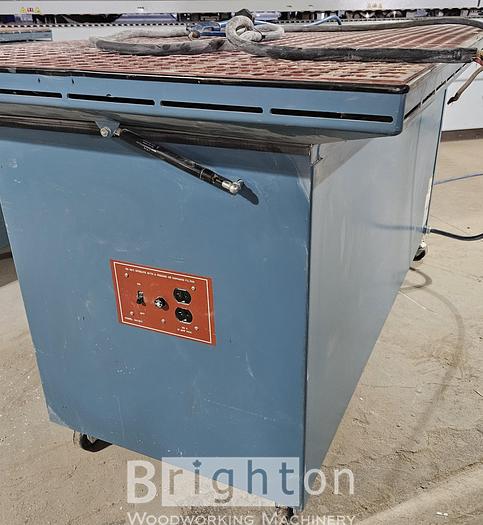

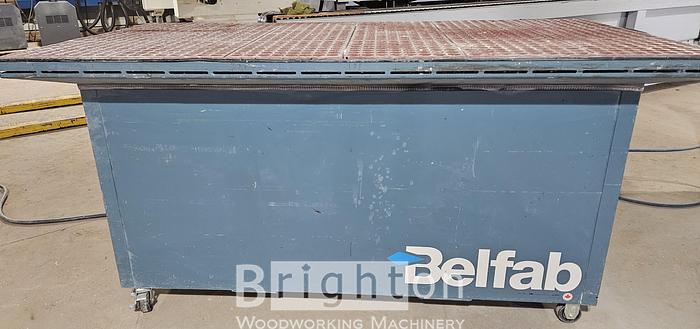

Belfab Model 3672DT Downdraft Table.

Features
Innovative high friction and non scuffing tabletop mats
Advanced self-opening tabletop offering immediate access to filters
Unique recessed base for workers’ comfort
Revolutionary design using two dual inlet blowers generating over 3600 CFM
Super quiet blower design operating under 78dB

The Model 3672TD downdraft table offers a 36’’ x 72’’ working area. This downdraft table has been conceived for small to medium furniture or cabinet shop. The unit is engineered for moderate to heavy sanding work on wood pieces coming in varying sizes.

The table comes with two high efficiency air blower capable of generating over 3600 CFM.

Specifications
Table top dimensions 36” x 72”
Panel filter efficiency 98%
Blower motor HP 2 x ¾ HP
CFM 2 x 1800
Sound pressure dB (at 10’) 78
Module weight 500 lbs.
Shipping weight 550 lbs.
Shipping dimensions 78” x 42” x 48”

Tabletop Features
Innovative anti-slip and non-scuffing mats:
These indestructible half-inch thick mats secure parts in place and protect work from denting.

Ergonomic
Special recessed base design offers foot clearance for workers comfort. The tabletop surface is accessible from 360° around.

Ease of maintenance
The gas-cylinder assisted tabletop is fully counter balanced and auto-blocking for easy opening with one hand. This unique feature gives easy access to filters and inner chamber for maintenance.

Filter Features
Innovative design:
Filters act as dust trays to capture 100% of collected dust particles. They can be easily cleaned and replaced in less than one minute!!

Flexible Concept
Can integrate a variety of panel filter types and thicknesses that can be selected to optimize both filtration performance and durability for your application.

Blower Features
Blowers are located on the clean side of filters for trouble free extended life. This feature also permits the use of a new generation of direct drive, high efficiency and super quiet blowers which generate 25% more suction with 25% less horsepower, thus saving energy.

Each blower is located in a separate compartment within the base area making it possible to individually operate either side of the table in a pull configuration. This airflow design generates an even suction distribution all the way to the edges.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
