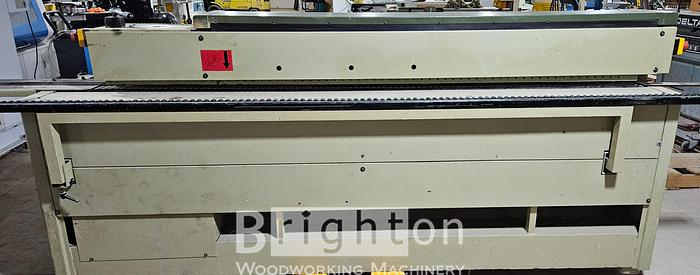

SCM Basic 2 used edgebander #CBM2491

SCM Model BASIC 2 EDGEBANDER

The SCM Basic 2 automatic edgebander is designed
for small to medium sized shops
The Basic 2 incorporates high frequency converter driven high
speed trimming units for top quality production
It is a practical machine with simple set-up

Specifications
Panel Thickness 10 mm to 45 mm
Edge Band Thickness
Coil Edge Band 0.4 mm to 1.2 mm
Strips 0.4 mm to 8 mm
Panel Width 60 mm minimum
Panel Length 160 mm
Feed Speed 11 meters/minute
Glue Heat-up Time 10 - 13 minutes
Machine Dimensions 129" (L) x 52" (w) x 50" (h)

Equipped with
Automatic Edging Strip Magazine -for applying PVC/ABS coil
and other plastic edging; applies edging strips; automatic loading
magazine for veneer and solid wood strips up to 8 mm thick
Fast Heat-up Glue Pot -hot melt glue pot designed for ease
of cleaning and changing glues
Frequency Converter -used to drive the trimming motors at
12000 rpms to obtain the best possible professional edge finish on all materials

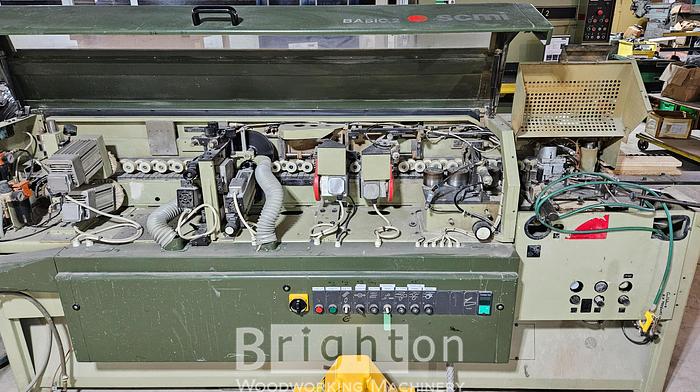

Workstations
* End Trimming Unit -two "High Frequency" motors
self adjusting and auto traversing; tilt 0° to 15°
* Top & Bottom Trimming Units -two "High Frequency" motors
units rotate around the corners of the panel; tilt 0° to 45°
* Buffing Unit

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
