2011 SCM S1 300 class used 10ft sliding table saw #CBM2456
2011 SCM S1 300 class used 10ft sliding table saw #CBM2456
Location:Uxbridge, Canada
Description

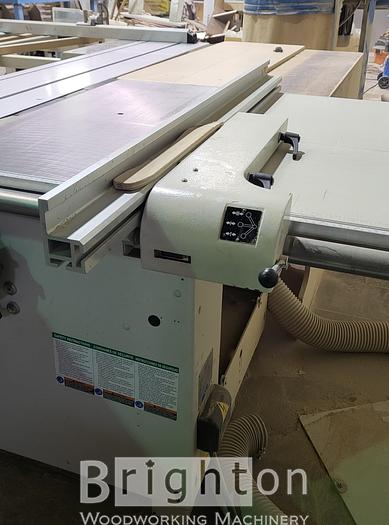

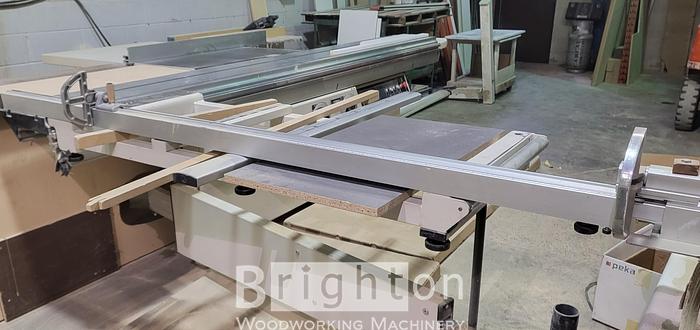

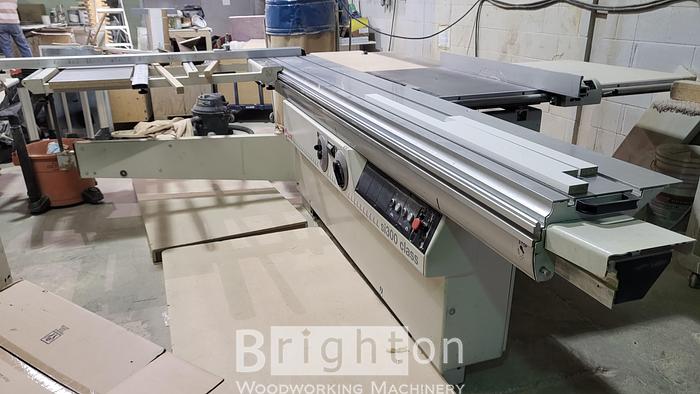

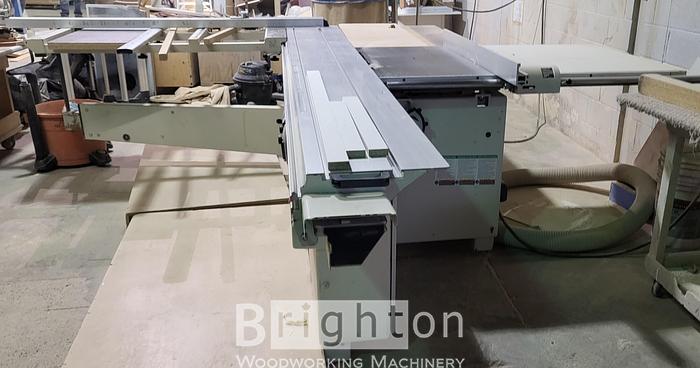

2011 SCM S1 300 class used 10ft sliding table saw (over head dust collection and blade guard included)
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | SCM |
| Model | S1 300 class used 10ft sliding table saw |
| Year | 2011 |
| Condition | Used |

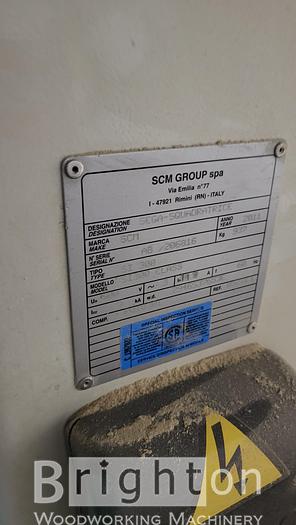

| Serial Number | AB / 206816 |
| Stock Number | CBM2456 |
| Quality | Very Good |
| Electrics | 600V / 3Ph / 60 Hz |
Additional Features

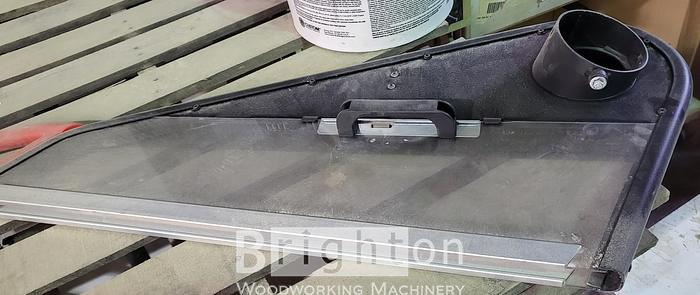

(over head dust collection and blade guard included)
Very high cutting quality thanks to the sliding table structure with special ground-arch steel guides (Scm patented solution).
Torsional rigidity and total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades.
Manual movements : always user friendly and precise. Every minimum handwheel movement corresponds to a precise blade adjustment.
Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.
Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by SCM).
Manual movements: always user friendly and precise. Ease of use in every day operation due to the dedicated gear box, fully protected from dust (Scm patented solution), that provides a smooth and direct transmission. Every minimum handwheel movement corresponds to a precise blade adjustment.
Manual adjustment of the scoring unit: simple and effective. Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position. The positioning of the controls allows their use without moving from the front of the machine.
Max. Saw Blade Diameter 315mm
Cutting Height At 90°/45°
100/70mm
Blade Tilt 45°
Blades Lifting & Tilt Manual
Main Blade Rotating Speed 4000rpm
Scoring Unit Rotating Speed 8500rpm
Main Blade Motor Power Hz 50
5kW (7Hp)
Scoring Blade Motor Power
1.3kW (1,7Hp)
Squaring Capacity With Carriage And Extended Stop
3200 x 3200mm
(3800 x 3200mm option)
Cutting Width On Parallel Fence 1270mm
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
