2014 SCM SI400 nova used 10' sliding table saw #BM2445
2014 SCM SI400 nova used 10' sliding table saw #BM2445
Location:Uxbridge, Canada
Description

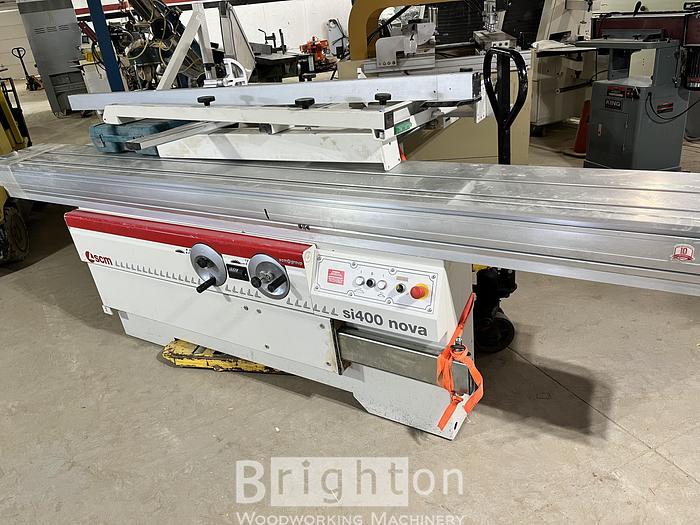

2014 SCM SI400 nova used 10' sliding table saw
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Click <LEASE> for leasing and <SHIP> for shipping information.
Specifications
| Manufacturer | *****sold*****SCM |
| Model | SI400 nova used 10' sliding table saw |
| Year | 2014 |
| Condition | Used |

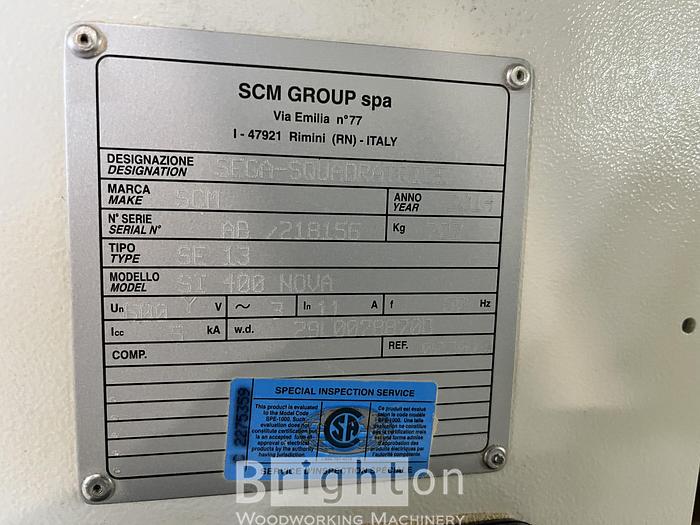

| Serial Number | AB/218156 |
| Stock Number | BM2445 |
| Quality | Very Good |
| Electrics | 600V / 3Ph / 60 Hz |
Additional Features
Sliding table saw is in grat condition. Table is very smooth. No saw blades included.
Standard Equipment & Options:
Anodized aluminium alloy carriage on hardened steel guides, which are fixed on the carriage by means of mechanical bending system
Sliding carriage length 3200mm

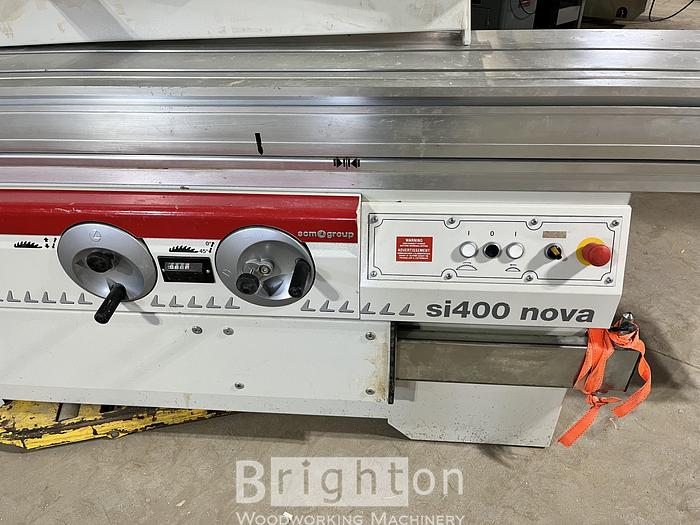

Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
Squaring frame the fast fence positioning of angular cuttings
Outfeed table extensions
Manual rip fence with position reading on metric rule
Sliding on steel bar, 40 mm diameter with micrometric adjustment
Ripping capacity on parallel fence 1270 mm
Digital readout on rip fence.
Motor 8kW (9HP) - 60 HZ:
Direct start main motor with pushbuttons
Independent powered scoring unit, external setting up and stops for a quick re-positioning of the blade
Safety/Protections:
Emergency pushbutton located on the front machine side
Emergency pushbuttons located on parallel fence side (CE version)
Overload protection
Blade protection on riving knife (versions with electrical protections) exhaust outlet 60mm.
Overhead saw guard (CE and USA-Canada versions) incorporated dust extraction, 80mm outlet diameter
Automatic brake on mian sawblade (CE and Usa/Canada version)
Padlockable main switch
Auxiliary low voltage circuit (110 voltage)
Certificate of conformity with "C.E. Standards" (CE version)
"CSA" rated electrical components, including cables (USA/Canada version)
Technical Data
Max cutting height at 90° (mm)..... 140 with blade 400
Max cutting height at 45° (mm)..... 97 with blade 400
Blade tilt..... 45 (degrees)
Blades lifting and tilt..... manual
Main blade rotating speed..... 3700 (rpm)
Scoring unit rotating speed..... 8500 (rpm)
Saw unit motor power (S6 -40%) kW (HP) 50 Hz..... 7 (9)
Scoring unit motor power (S6 -40%) kW (HP) 50 Hz..... 0,9(1,2))
Squaring capacity -w 3200 mm carriage..... 3200x3200
Cutting width on parallel fence..... 1270 (mm)
Exhaust outlet diameter..... 120 at thebase (mm)
Exhaust outlet diameter..... 80 on overhead protection (mm)
Basic machine net weight..... 980 KG
