2013 Boss Machinery *******sold******* KDT-365 Used Edgebander #BM2437
2013 Boss Machinery *******sold******* KDT-365 Used Edgebander #BM2437
Location:Uxbridge, Canada
Description
2013 Boss Machinery KDT-365 Used Edgebander
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Boss Machinery |
| Model | *******sold******* KDT-365 Used Edgebander |
| Year | 2013 |
| Condition | Used |
| Serial Number | 3601303391 |
| Stock Number | BM2437 |
| Quality | Very Good |
| Electrics | 600V / 3Ph / 60 Hz |
Additional Features

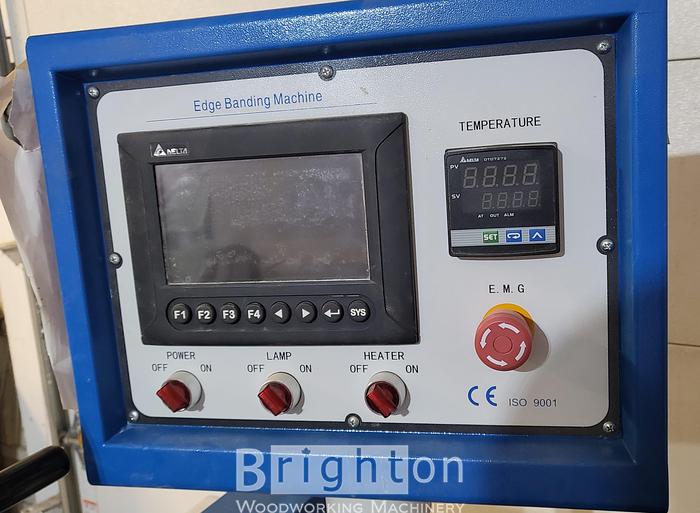

* Touch screen control panel
• Heated in-feed fence
• Glue Pot "Easy Clean" Teflon coated
• Coil Feed
• Pneumatic Guillotine
• Four pneumatic side pressure rollers
• End trimming station, angel adjustment, 2 motors (German made linear guide ways)
• Top & bottom milling units tillable to 45 degree
• CE approved CSA electrical components
• Pneumatic shut off gate on glue roller
• Front and rear tape overlap adjustment from control panel
• Telescoping panel support for large size panels
• Heavy duty feed chain with replaceable pads
• Extruded aluminum top pressure beam
• Large 3" diameter dust extraction connection
• Large window in safely hood
• Pneumatic gate to prevent feeding panels to close to one another
• Mechanical digital readouts for all adjustments
• European high frequency motors on end trims and milling units
• Top & bottom scraping units, pneumatic blowers, large diameter tracing wheels
• Buffing units with cloth wheels to clean glue line
• Fluorescent light inside safety hood
• Emergency stop button on out feed end
• Feed jog button for easy set up
• Air regulator, filter, and lubricator
• Feed speed 12-20m/min
• Machine length 4420mm, weight 1620kg
• Total power requirement 8kw
Specifications:
Panel Thickness: 10-60mm
Minimum Panel Width: 80mm
Edge Thickness: 0.4-3mm
Electrics: 3/60/600V
Feed Motor: 1.5 kW 3HP
End Trim: 2 Motors, .35 kW
Top & Bottom Trim: 2 Motors, .75 kW
