2010 KOCH SPRINT-PTP-3/1300 CNC BORE, GLUE & DOWEL INSERTER #BM2397
2010 KOCH SPRINT-PTP-3/1300 CNC BORE, GLUE & DOWEL INSERTER #BM2397
Location:Ontario, Canada
Description

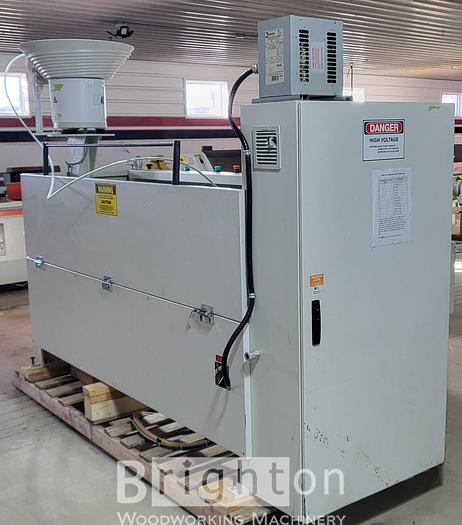

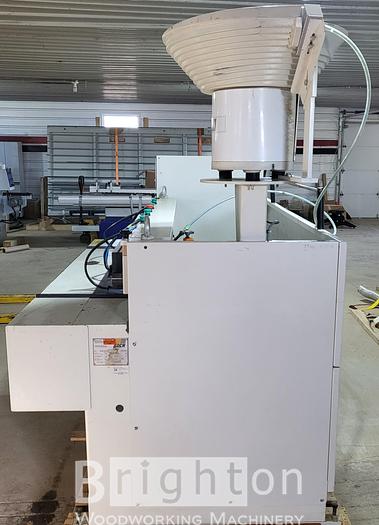

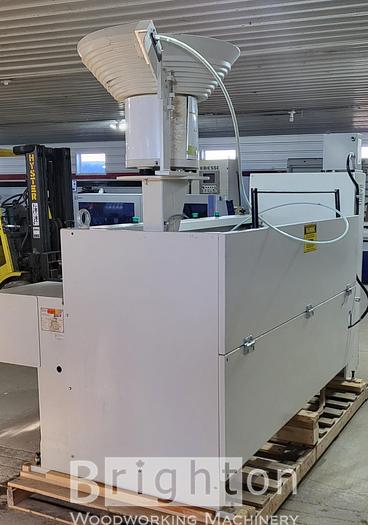

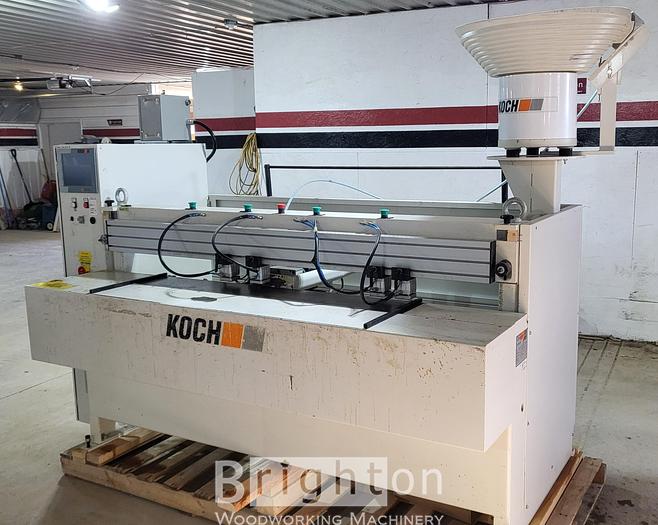

KOCH Sprint-PTP-3-1300 CNC BORE, GLUE & DOWEL INSERTER. Recently refurbished with over $5000 in upgrades.
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

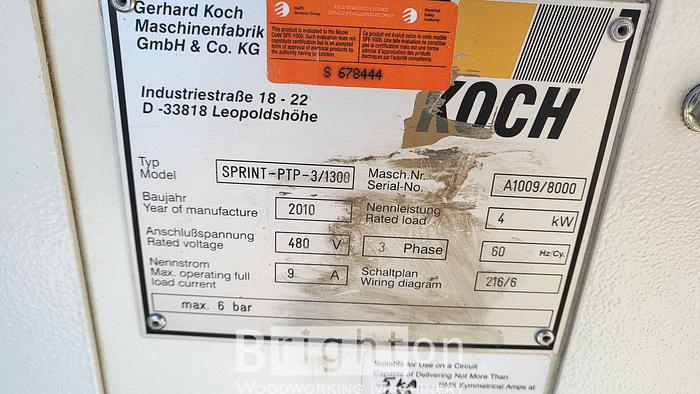

Specifications
| Manufacturer | KOCH |
| Model | SPRINT-PTP-3/1300 CNC BORE, GLUE & DOWEL INSERTER |
| Year | 2010 |
| Condition | Refurbished |
| Serial Number | A1009/8000 |
| Stock Number | BM2397 |
| Quality | Very Good |

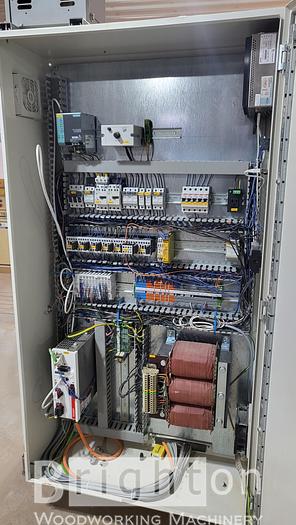

| Electrics | 600 V / 3 Ph / 60 Hz with included transformer. |
Additional Features
-- Specifications:
Automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at programmed random spacing.
-- Working Cap:
Stock length (Y) from 4.25" - 31.5" (110 mm - 800 mm), stock width (X) from 0.75" - 51" (20 mm - 1,300 mm), stock thickness (Z) from 0.5" - 2.4" (4 mm - 60 mm), max. boring depth 1.1" (28 mm).
51" (1,300 mm) X-axis divided into (4) work zones of 12" (305 mm) ea., one part can be processed, while the other is being unloaded or loaded.
-- Equipped with:
(4) Stock clamping cylinders;

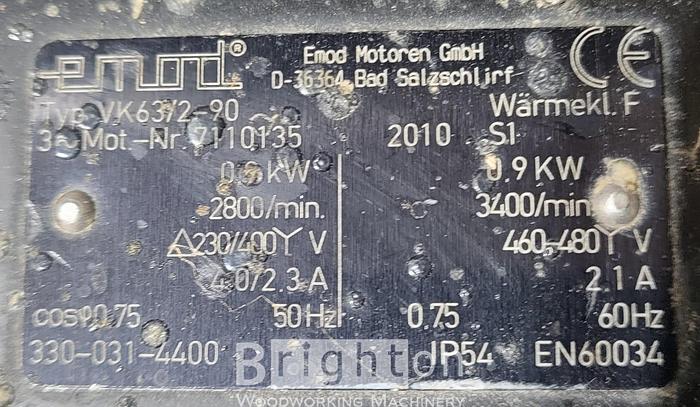

(1) Horizontal boring spindle,
7,200 RPM,
powered by 1.25 HP motor;

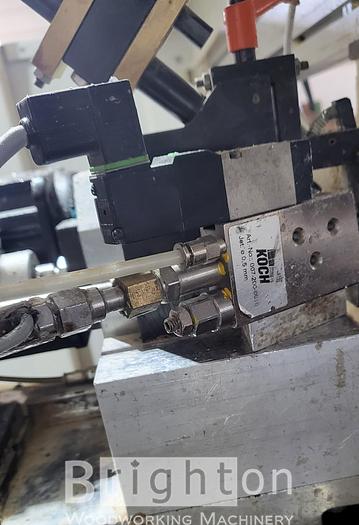

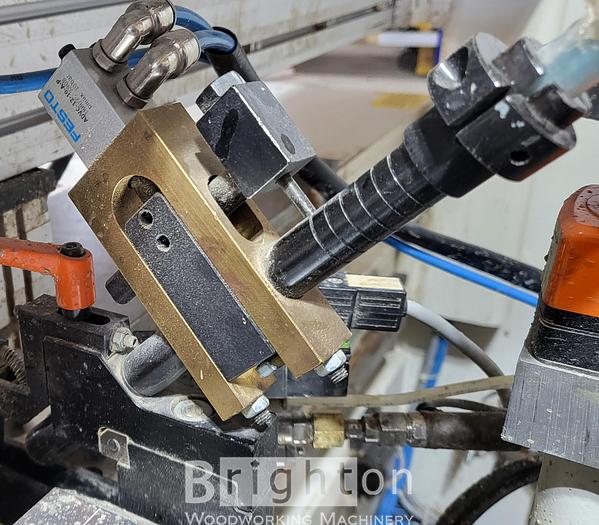

(1) Glue injection & dowel inserting system,
glue delivery system is a GRACH "Husky 307" glue pump;
Dowel inserter is set up for 8 mm dia. x 30 - 35 mm long dowels (other dimensions available).

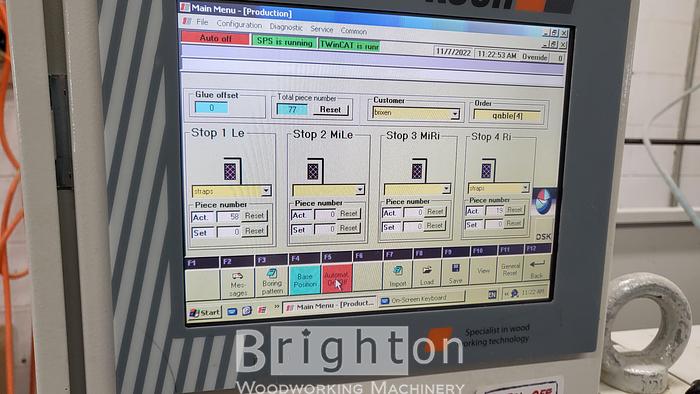

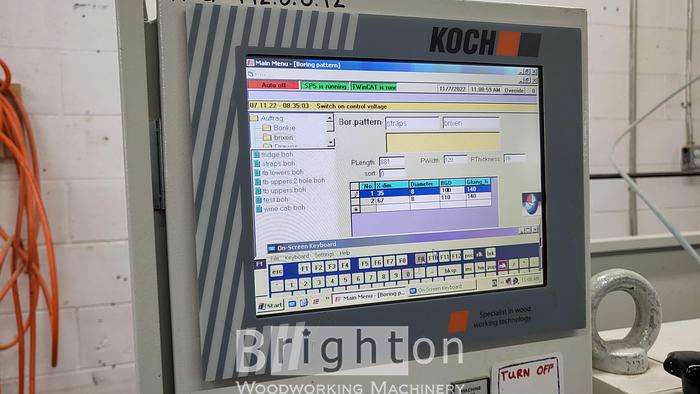

-- Operator & Machine Control:
NC Front end with 10.
