2008 Biesse Artech Akron 4300 K Used Edgebander #BM2383
2008 Biesse Artech Akron 4300 K Used Edgebander #BM2383
Location:Ontario, Canada
Description

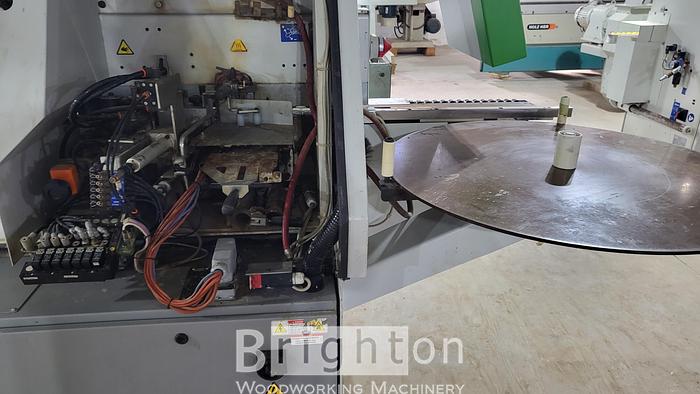

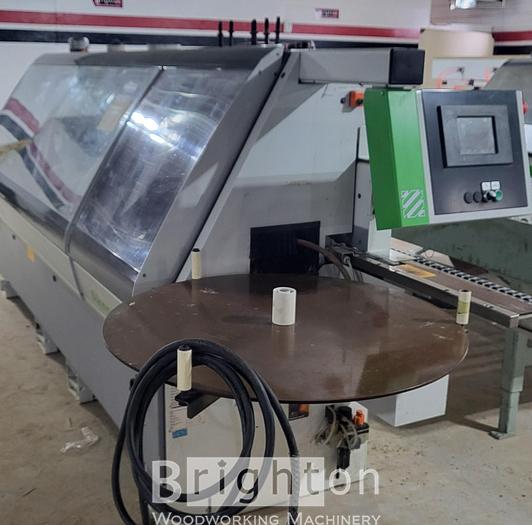

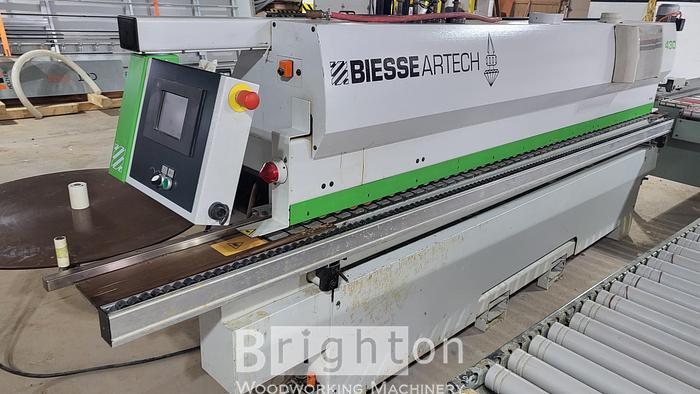

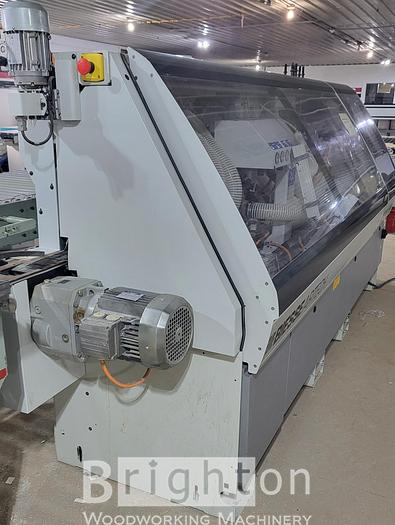

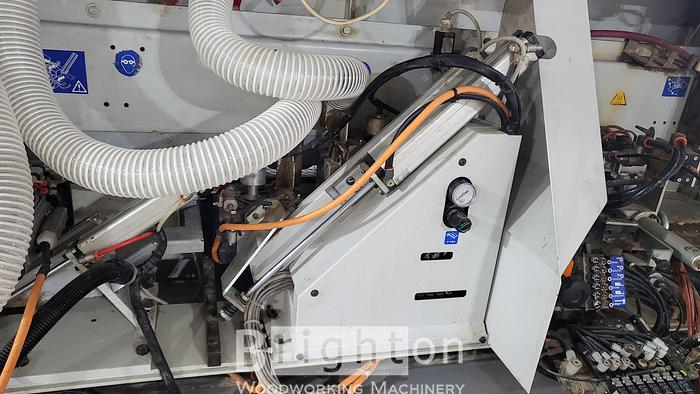

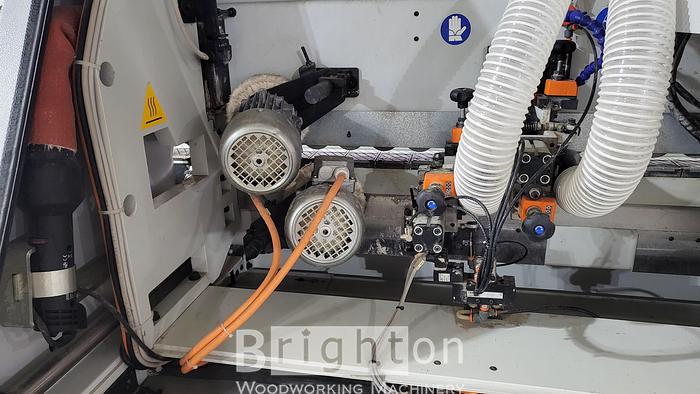

Biesse Akron 4300 Used Edgebander
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Biesse Artech |
| Model | Akron 4300 K Used Edgebander |
| Year | 2008 |
| Condition | Used |
| Serial Number | 39164 |
| Stock Number | BM2383 |
| Quality | Very Good |

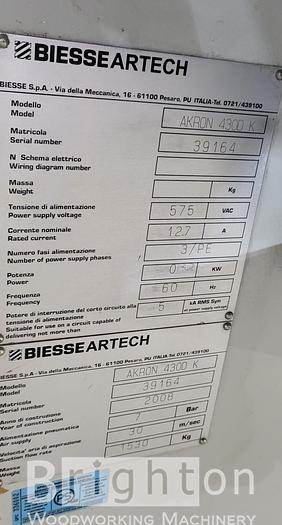

| Electrics | 575V / 3Ph / 60 Hz |
Additional Features
Automatic edge bander for edgebanding solid wood, chipboard, veneer, Pvc, Abs and melamine panels - CE Standard - Year 2008
Technical data:
Panel height mm 10/60
Edge thickness max mm 10
Panel length min mm 140
Panel width min mm 85
Belt feed speed 12 mt/min

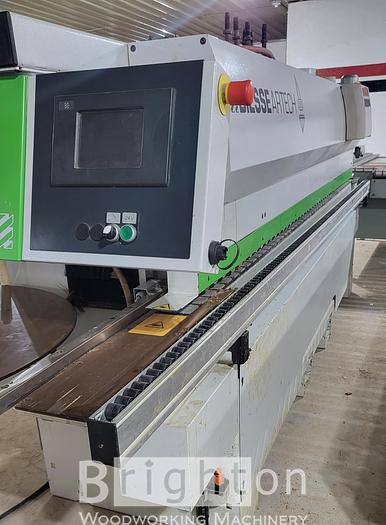

Electronic control panel with USB port for data loading - Sintra software
Gluing unit
Interchangeable glue pot
Glue pot capacity kg 2
Glue spreader roller diameter mm 25
Pressure roller conveyor large roller diameter 100 mm
Pressure roller conveyor small rollers diameter mm 80
End cutting unit: for cutting excess front and rear edges
N° 2 motors each Hp 1,07 12000 rpm
Motor inclination 0-15 degrees
Max tooling mm 140
Slide copying devices
N° 2 suction nozzles diameter mm 80
Finishing trimming unit for chamfering the excess edge in the top and bottom corners of the panel
Qg7vt
N° 2 motors each 0,87 Hp 12000 rpm
Motor inclination from 0 to 25 degrees
Tool diameter 70 mm F16 height 20 mm
Vertical and frontal copying devices with rotating discs
Height adjustment: automatic with the upper pressure unit
N° 2 suction nozzles diameter mm 80
Edge scraper unit for edge finishing in Abs
Radial plate tool
Vertical and frontal copyng devices with rotating discs
N° 2 suction nozzles diameter mm 60
Hot air blowers to return edge to it's original colour and sheen after cutting and scrapping.
