*SOLD* Saw - Toe Kick Miter - FBC

Sold

*SOLD* Saw - Toe Kick Miter - FBC

Location:Uxbridge, Canada

Description

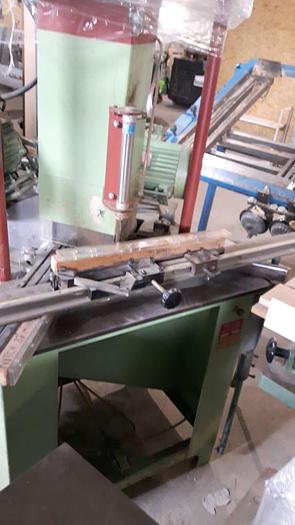

Very nice Canadian Made Mitre toe kick machine. This is the fastest and cleanest way to cut precise toe-kicks in your cabinet gables. Used FBC Toe Kick Miter Saw - REF# 1640BM. Located in Ontario at our Uxbridge Warehouse 20min E of 404 on Davis Drive.
Show All

Specifications

ManufacturerFBC
ConditionUsed
Stock Number1640BM
Electrics575 V / 3 Ph / 60 Hz
Condition infoVery Good

Additional Features

Blade Capacity:

14" OD;
saw blades included.
Arbor:

1" (25mm) with 3" (76mm) saw collars;
mounted on preloaded and sealed bearings;
2-belt drive;
3450 RPM of spindle.
Motors & Voltages:

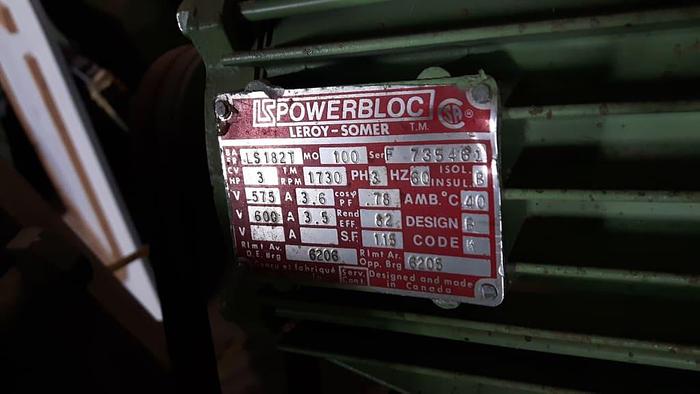

Two, 3 H.P. 3 Phase 575 Volt
Table Base:

Precision machined and ground iron castings with milled keyways to guide fences;
allows for easy and accurate dimensional changes.
Floor Stand:

Stand is completely enclosed with 6" (152mm) dust collector outlet and scrap chute;
1200 CFM required.
Actuation:

Air operated by foot valve with cover.
Air Pressure & Consumption:

3 CFM at 80 PSI (.09 cubic meters/minute at 5.6 kg/cm2) based on 10 strokes per minute;
includes air filter/ regulator/lubricator with auto drain.
Size & Weight:

36 inches Wide x 34 inches
Weight 750 lbs. (340kg).
Production Rate:

Up to 15 strokes per minute.
Staggered Saw Blades/ Toe-Notch
