Wadkin EKA Single End Tenoner
Sold

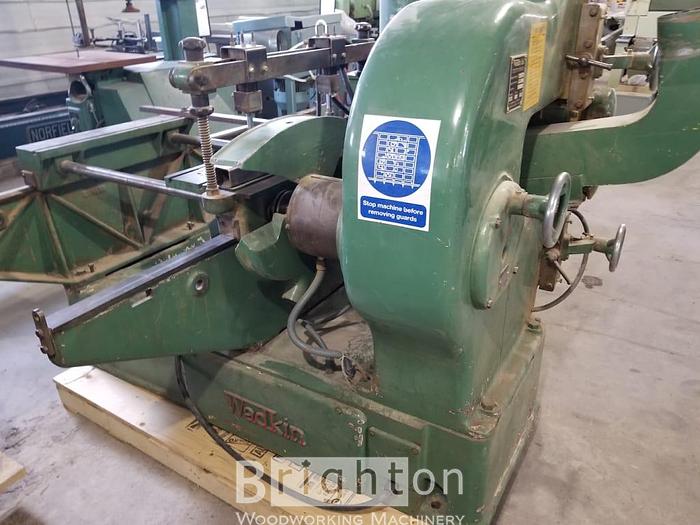

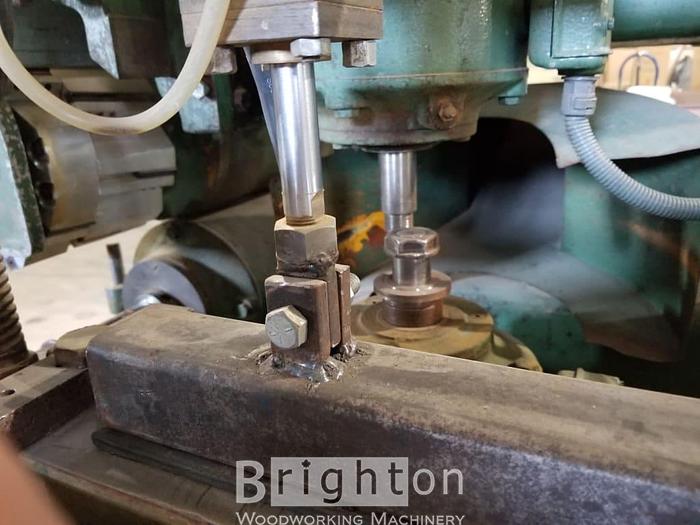

Wadkin EKA Single End Tenoner
Location:Uxbridge, Canada
Description
This machine has successfully met the test of day-to-day service under all working conditions in hundreds of woodworking shops in every part of the world. It is built to exacting standards which, coupled with sound practical design, explains why users everywhere are unanimous in endorsing its reliability, accuracy and output capacity.
Priced to sell!
Used Wadkin EKA Single End Tenoner- REF# 1734BM.
Note: Mfg year is not available
Specifications
| Manufacturer | Wadkin |
| Model | EKA |
| Year | 1901 |
| Condition | Used |
| Stock Number | 1734BM |
| Electrics | 415 V / 3 Ph / 50 Hz |
| Weight | 3300 lbs |
| Shipping dimensions | 78"W x 88"L x 68"H |
| Condition info | Very Good |
Additional Features
Number of heads 5
top & bott tenon
top & bott scribe
cut off saw
Motor powers tenon heads 4hp
Motor power scribing heads 2hp
Cut off saw 2hp
Max tenon length 152mm in one cut
Max timber thickness 150mm
Length of table 1067mm
Width of table 673mm
Fitted with new style quick action timber clamp
New chip limiter tenon heads
DC Injection brakes to all heads
Floor space 2362 x 2515mm
Net weight 1497kg
