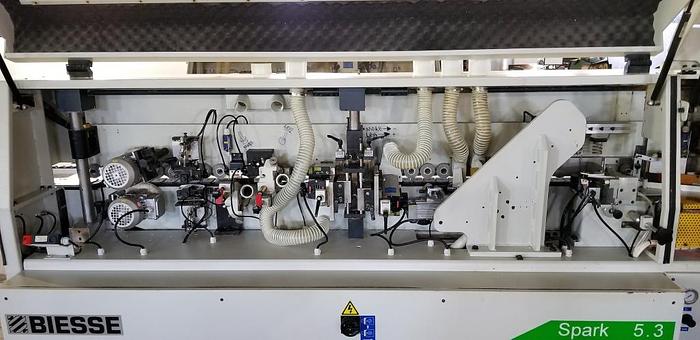

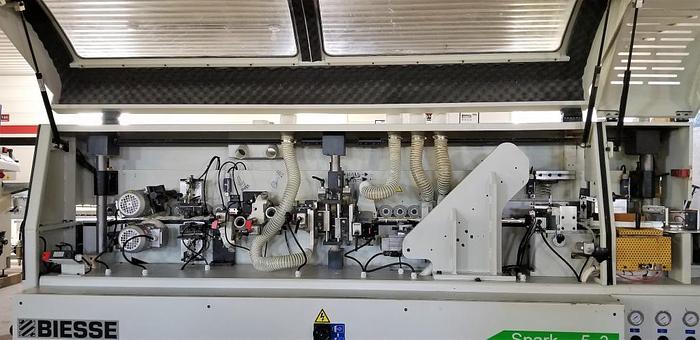

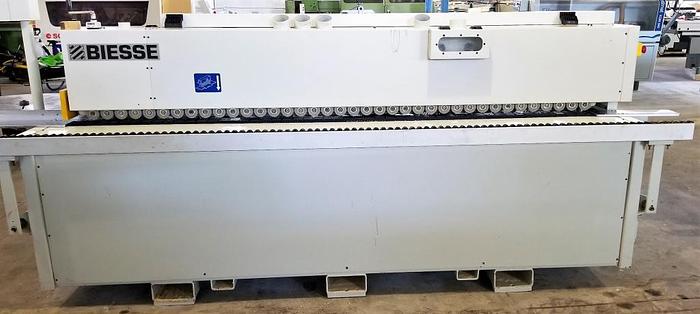

2015 *SOLD* Edgebander - Biesse Spark 5.3

Controller

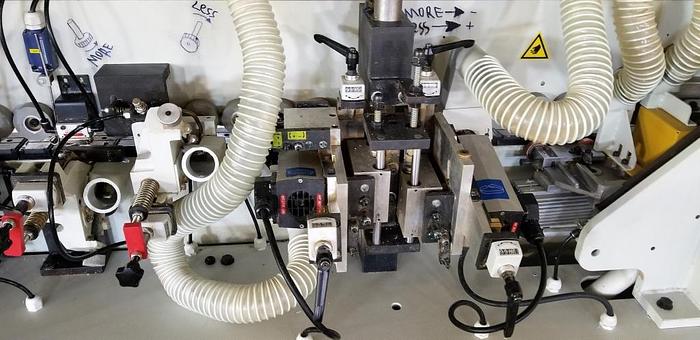

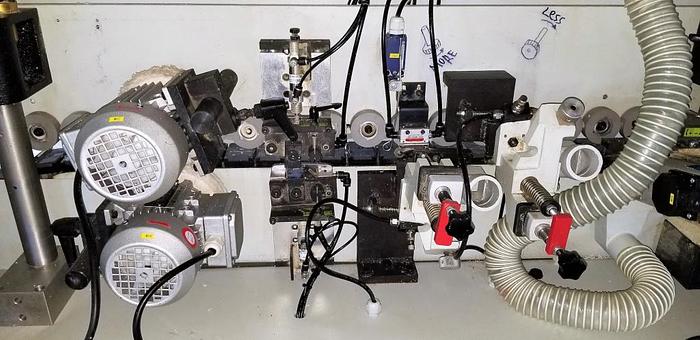

End Trimming with 0-15 degree
Fine Trimming with Micro Adjustment
Edge Scraping with Digital Read-Out
Glue Scraping Top and Bottom
Buffing Top and Bottom Cloth Disks
Other Features:

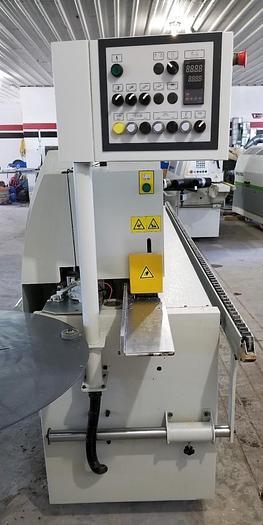

Simple Operator Control Panel
Heavy Duty Industrial Frame

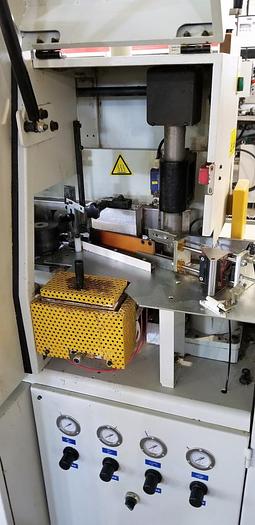

2 Liter Glue Tank with Teflon coating
Quick Time Heating System
Electronic Control of the Temperature
Automatic Glue Temperature
Adjustable Rear Support Fence
Pneumatic Guillotine Knife for
Automatic Edge Cutting with Max Thickness of 3mm with Automatic “kickback” of the Edge

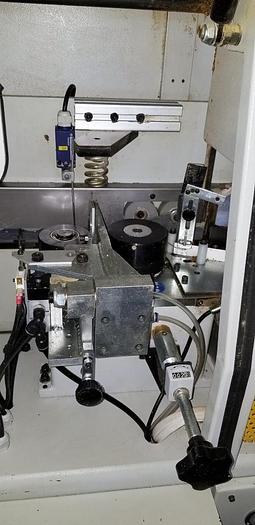

Adjustable Edge Pressure Unit with 2 Rollers
Top Pressure Beam with Manual Adjustment, Numerical Read-Out, and Rubber Wheels

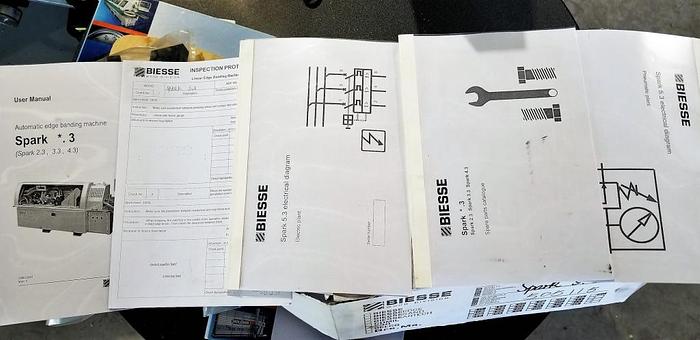

Manuals Included
Technical Data:

Min. Width of the Panel 90 mm (3.5”)
Min. Length of the Panel 140 mm (5.5”)
Max. Thickness of the Panel 40 mm (1.6”)
Min. Thickness of the Panel 10 mm (0.4”)
Edge Dimensions in Coils and Strips ABS 0.4 to 3 mm*
Feed Speed 12 mtr/min – 39.6 ft/min

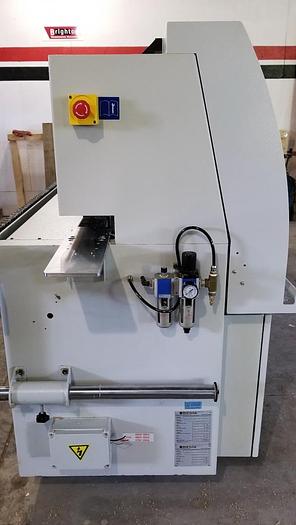

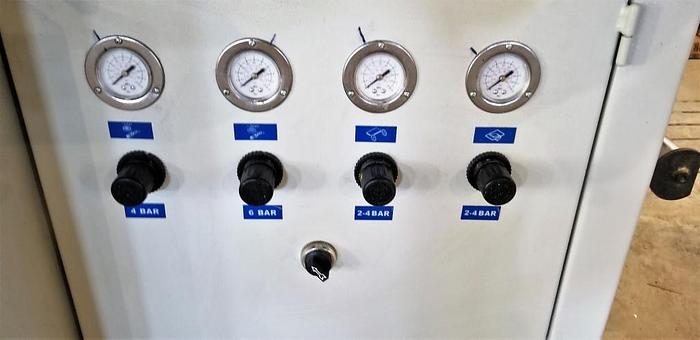

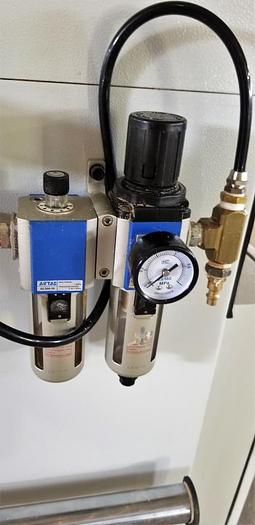

Air Pressure 6 bar

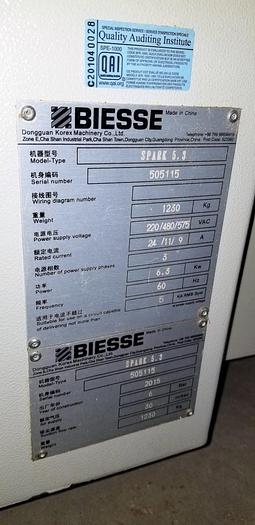

Installed Power: 6.1 KW
CE Standards
Multi-Tap Transformer
Electrics 220V, 480V, 575V 3 Phase 60 Hz
Single Phase Machine Available 220V
Amps Required 7A@575V, 9A@480V, 20A@220V
Dust Extraction Port 102mm / 4”
Weight: 980 Kg / 2160 lb
Dimensions: 3050 x 900 x 1500mm / 120” x 35.4” x 59

* 3 mm is limited to a cross section of 72 mm (i.e. 3 mm tape thickness x 24 mm tape height)
