2013 *SOLD* Edgebander - SCM Olimpic K230
Sold
2013 *SOLD* Edgebander - SCM Olimpic K230
Location:Uxbridge, Canada
Description

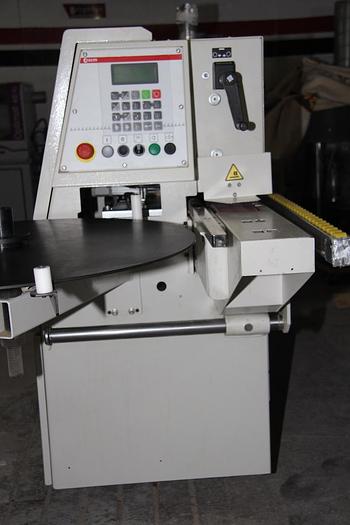

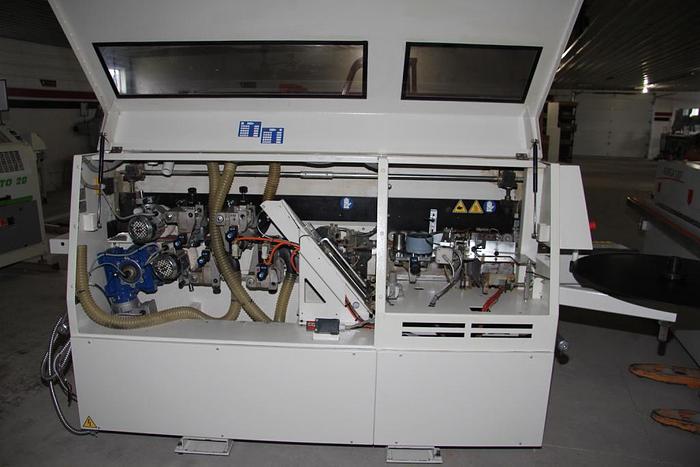

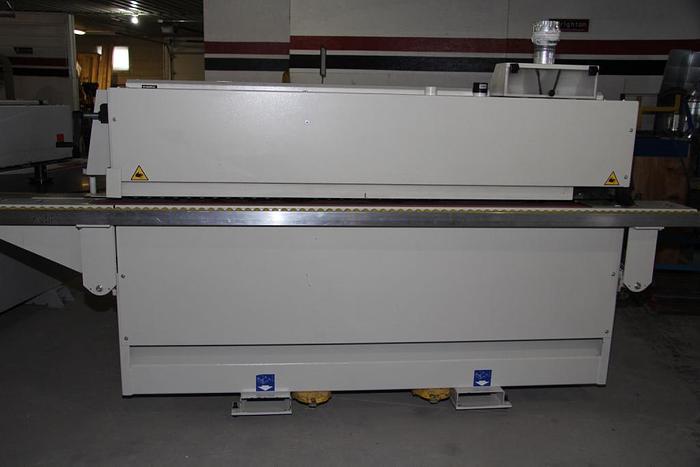

SCM Olimpic K230 B Edgebander -Capacites and Speed
· Edgebanding thickness: .4mm - 3mm (.016-1/8”)
· Guillotine capacity: 3.0mm
· Feed speed: 30 ft/min.
· Panel height: 3/8” min – 1 15/16” max
· Minimum panel length: 5 1/2”
· Minimum panel width: 2 3/8”
· Minimum distance between panels: 22”.
Used SCM K230 B Edgebander for sale. Ref# 1814BM
Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications

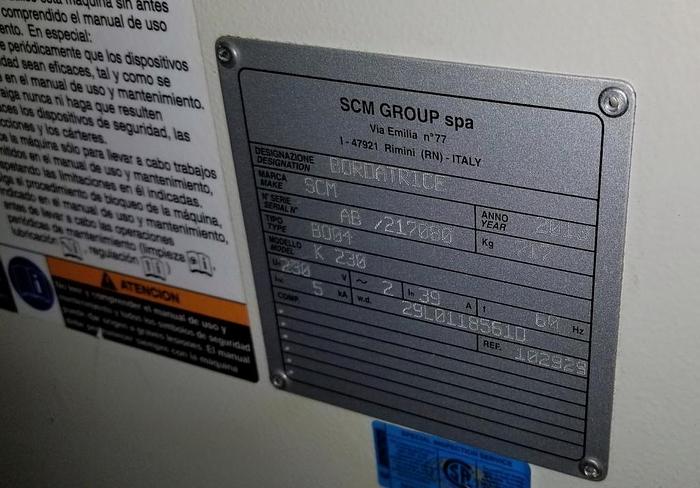

| Manufacturer | SCM Olimpic |
| Model | K230 B |
| Year | 2013 |
| Condition | Used |
| Stock Number | 1814BM |
| Electrics | 230 V / 3 Ph / 60 Hz |
| Weight | 1577 lbs |
| Shipping dimensions | 9.5ft x 3ft x 5ft high |
| Condition info | Very Good |
Additional Features

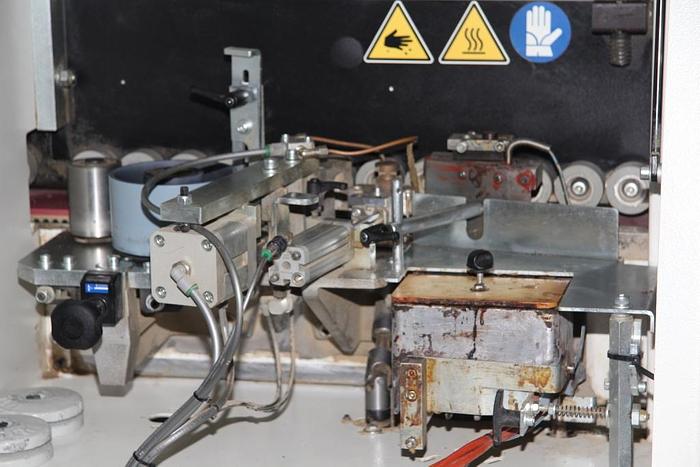

Glue Pot Unit:
Heating Time Approx. 8-10 min.
Glue Capacity 2.2 lbs.

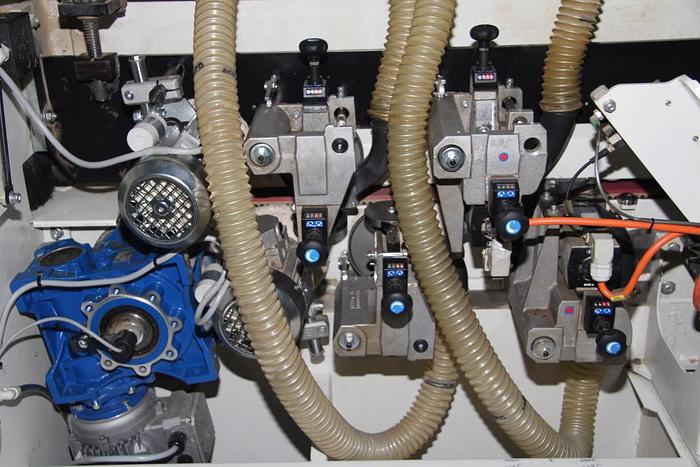

End Cutting Trimming Station:
Horsepower .50 HP
RPM / Tilt 12,000 RPM / 0-15 degrees
Edge Trimming Unit:
Horsepower .70 HP
RPM 12,000 RPM
Tilting Combination Cutters
Buffing Unit:
Horsepower .25 HP
RPM 3,000 RPM
Diameter/Bore 152mm/17mm
Feed Motor Horsepower 1 HP
Feed Speed 30 FPM
Frequency Converter 200 Hz

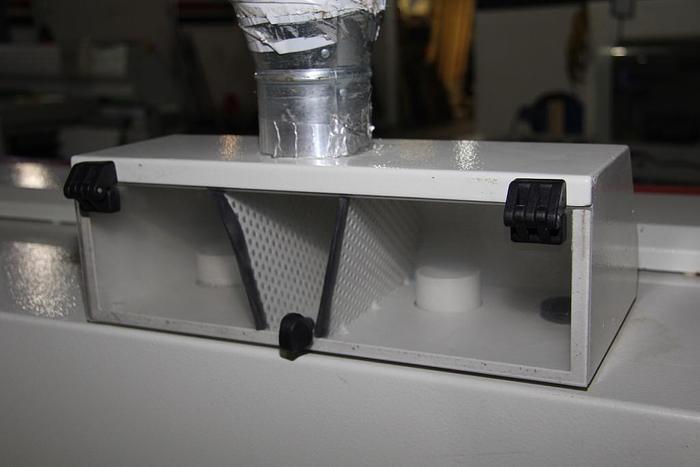

Dust Hood Diameter 2 @ 2” and 1 @ 3”

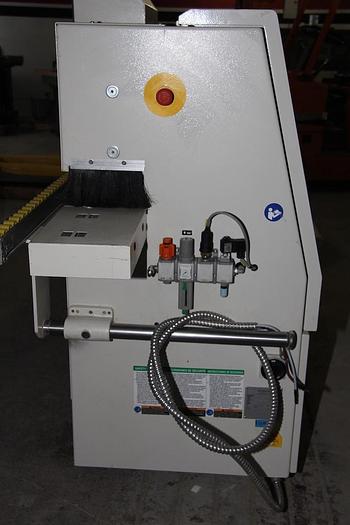

Pneumatic Operating Pressure 90 PSI
