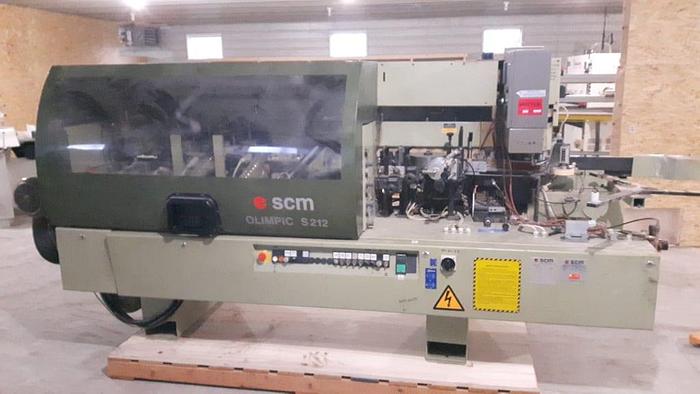

1999 *SOLD* Edgebander - SCM - Olimpic S212
1999 *SOLD* Edgebander - SCM - Olimpic S212
Location:Uxbridge, Canada
Description
Specifications
Manufacturer | SCM |
Model | Model |
Year | 1999 |
Condition | Used |
Stock Number | 1707BM |

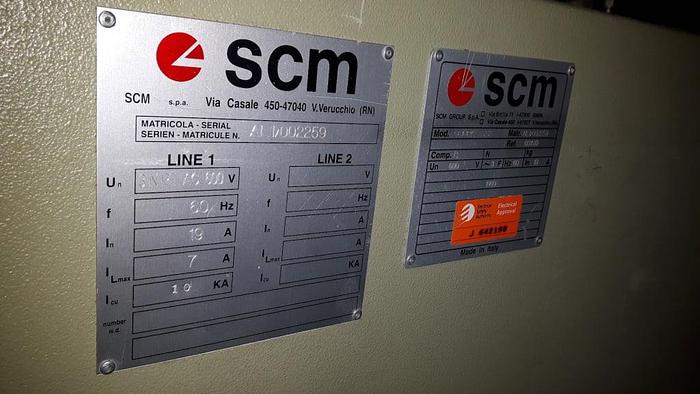

Electrics | 600V / 3 Ph / 60hz |
Condition info | Very Good |

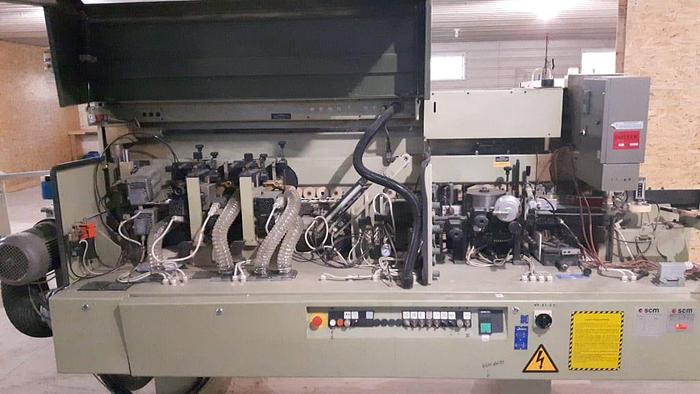

Additional Features
.4 - 12 mm (1/2"), 3 mm PVC cap., min. working width 4-3/4".
Hot Melt glue application system with booster system for immediate heat-up, and reverse glue applicator roller.
Guillotine for 3 mm PVC.
Pneumatically controlled pressure section with (1) large drive and (3) idle rollers, all independently controlled.
Workstations: Double motor end trim (1.3 HP - 12,000 RPM motor ea.), pneumatic adjustment
Top & bottom rough trim (2.5 HP - 12,000 RPM motor ea.).
Top & bottom flush trim (2.5 HP - 12,000 RPM motor ea.).
Last Station: Top & bottom buffing (0.4 HP - 1,400 RPM ea. motor).
Single feed speed of 40 FPM, 5 HP feed drive, Hold down pressure beam with double row of hold down rollers, opens from 3/8" - 2-5/16".
Complete with: Sound proof cabins w/windows, Heavy Duty outrigger panel support w/counter pressure and complete set of used tooling.
