2012 *SOLD* Edge Sander - Craftex CX505

Sold

2012 *SOLD* Edge Sander - Craftex CX505

Location:Uxbridge, Canada

Description

Very clean, lightly used single phase edge sander. Used Craftex CX505 Edgesander. REF# 1805BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.

Specifications

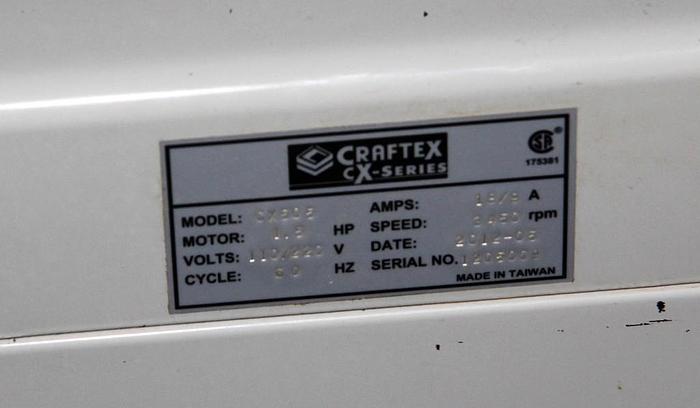

ManufacturerCraftex
ModelCX505
Year2012
ConditionUsed
Stock Number1805BM
Electrics110/220 V / 1 Ph / 60 Hz
Weight273 lbs
Shipping dimensions50" Length x 21" Width x 49" Height
Condition infoVery Good

Additional Features

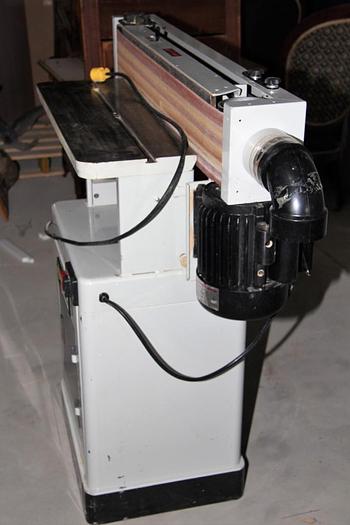

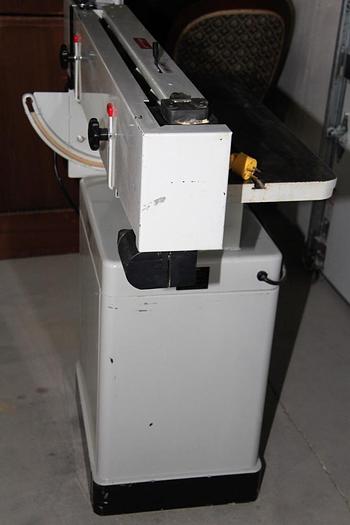

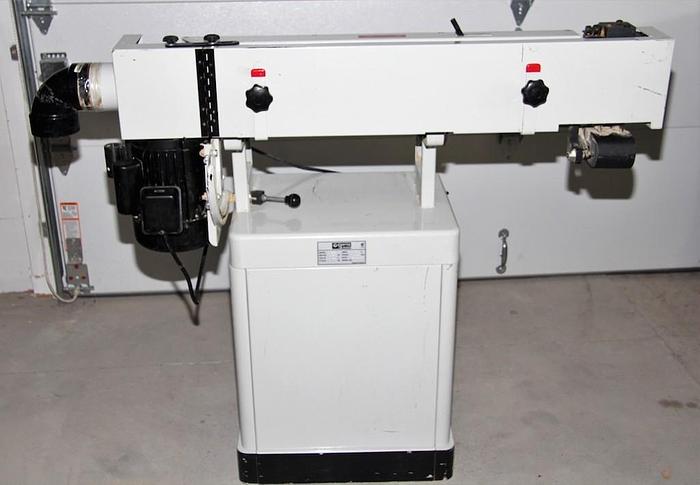

6" x 89" Oscillating Edge Belt Sander - Craftex CX-SeriesThis oscillating edge belt sander will make a fantastic addition to your shop. Featuring a powerful 1 1/2HP, this production sander has an auxiliary table, used when sanding round or curved work-piece and for the optimum dust removal the sander has a 4" dust hood. The sanding head can be adjusted to any angle between 90° and 180° and the work table height can be adjusted to different heights which allows using different portions of the sanding belt surface while sanding and resulting in even wearing of the sanding belt. The sander is mounted onto a cabinet stand which provides extra storage for tools and sanding belts.Other features include fully adjustable belt and tension tracking, motor drum guard, a 23-1/2" x 6-1/8" fence, ON/OFF switch with safety pin and a mitre gauge.Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

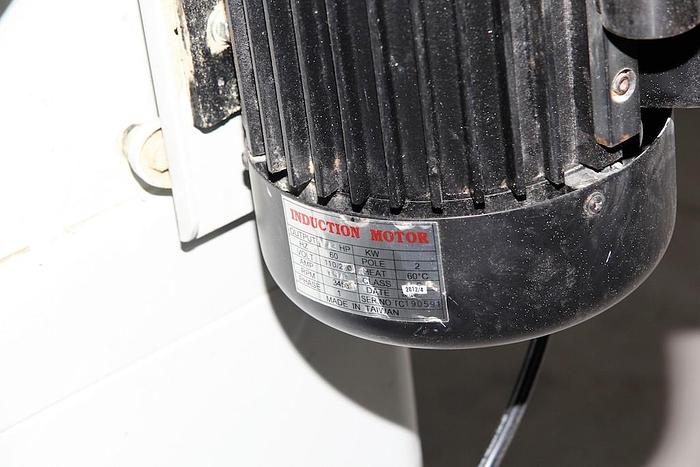

Motor: 1-1/2 HP, 110/220V (Pre-wired 220V), 18 Amps
Length of Oscillation: 1/8" (3.2mm) Up, 1/8" (3.2mm) Down, 1/4" (6.4mm) Total
Belt Size: 6" x 89" (152 x 2260mm)
Belt Speed: 3450 RPM
Table Size: 9-7/8" x 29-5/8" (250mm x 751mm)
Auxiliary Table Size: 9-7/8" x 11-78" (250mm x 300mm)
Fence Size: 23-1/2" x 6-1/8"
Dust Port: One 4"
Base Dimensions: 21-1/2" Length x 49" Width (546mm x 432mm)
Overall Dimensions: 50" Length x 21" Width x 49" Height (1270 x 533 x 1245mm)
