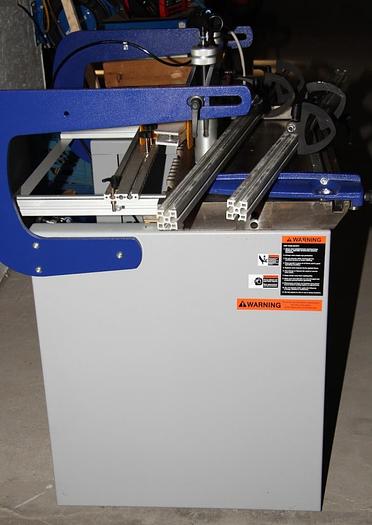

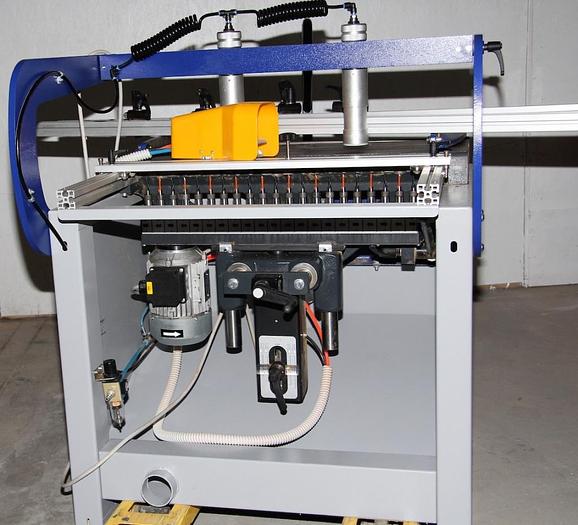

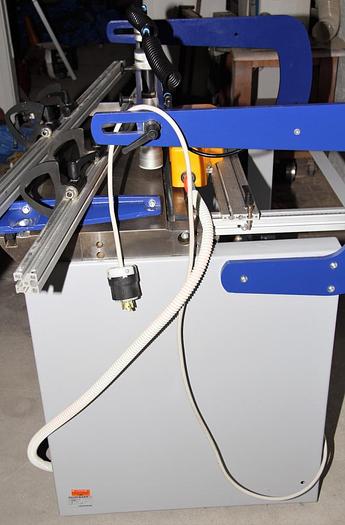

2016 *SOLD* Hinge Boring Machine - Felder FD921

The multi boring machine for precise and accurate operation!
Maximum precision when dowel boring with the Felder FD 21 professional. With 21 high quality drilling spindels positioned at 32 mm intervals, drills with a maximum diameter of 35 mm can be used, exact rows of holes and dowel bores are guaranteed. The welded chassis in combination with the solid cast iron table, rigid side and longitudinal stops, as well as pneumatic workpiece holders and ergonomically designed operating elements ensure that the FD 21 professional, is a dowel boring machine of the top class. Suitable for combining with Adaptors for BLUM hinges, HETTICH hinges and GRASS hinges.
Maximum tooling size in mm 850 x 3000
Max. work piece height in mm 65
Table size mm 900 x 340
No. pressure cylinders 2
Required compressed air 6–8 Bar

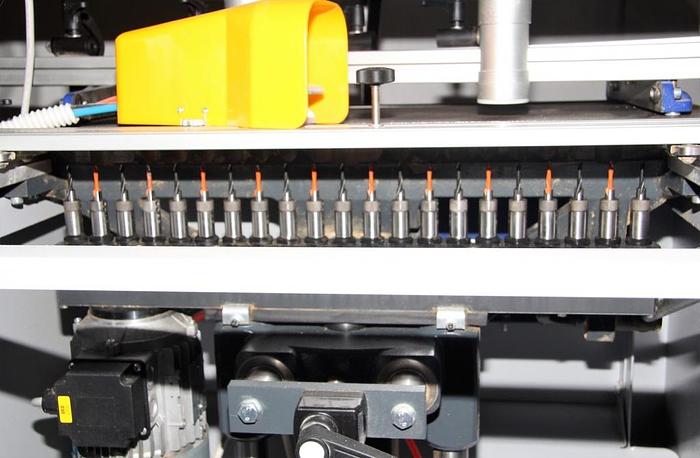

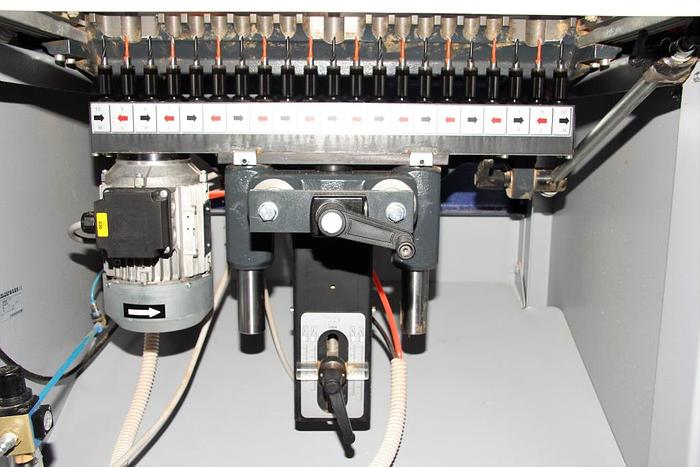

Drill head: 21 spindle unit, Quick-change chucks, 32 mm system

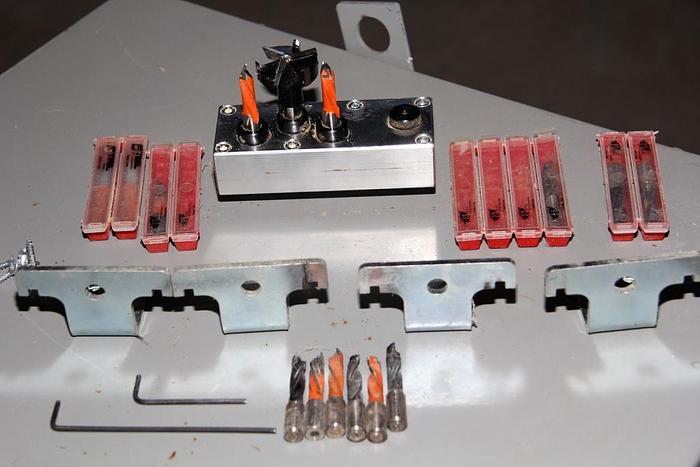

Combination Adapter Unit for Cabinet Hinges
Distance between axis of drills in mm 32
Maximum drilling depth in mm 70
Quick-change drill chuck (mm) 10
Adjustable depth up to 300 mm
Pivot the boring head to 45 degrees
Boring unit tilts pneumatically
Pneumatic workpiece clamps; max clamping height 85 mm (2 Included)
automatically compensates the vertical drilling
depth according to the manually set horizontal drilling depth.
End stop at 37 mm for cabinet hinges and line boring
