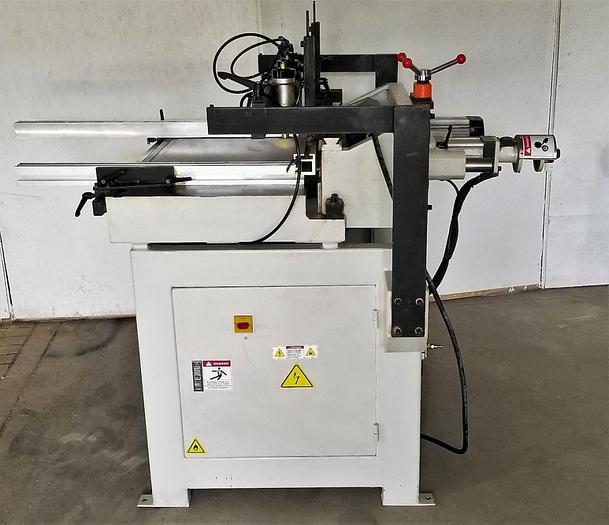

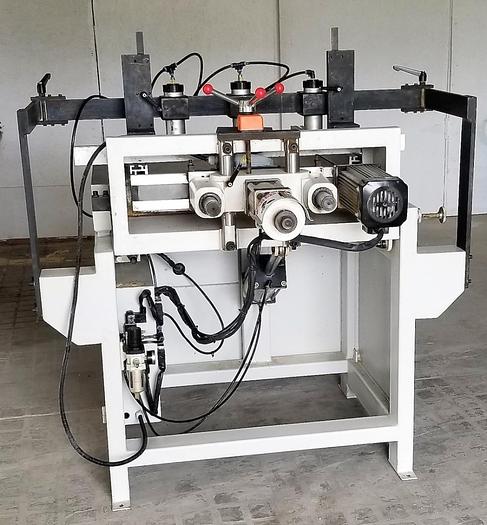

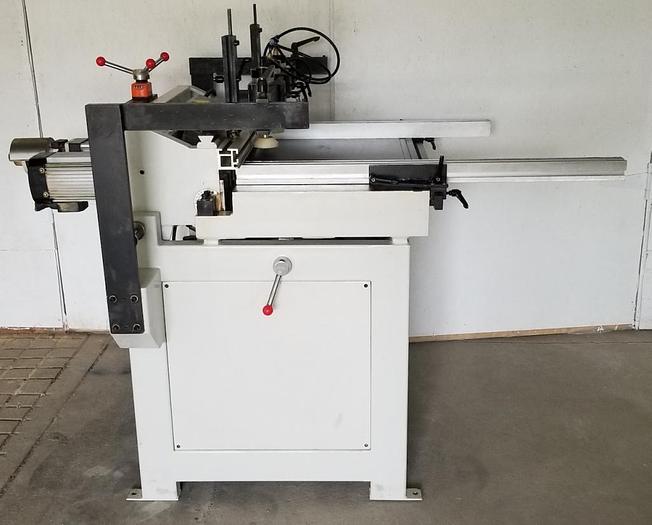

2016 *SOLD* Boring Machine - Silver SJK21
Sold
2016 *SOLD* Boring Machine - Silver SJK21
Location:Uxbridge, Canada
Description
21 spindle. Used Silver SJK21 line boring machine, vertical and horizontal! REF# 1831BM.
Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications
| Manufacturer | Silver |
| Model | SJK21 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 1831BM |
| Electrics | 600 V / 3 Ph / 60 Hz |
| Weight | 770 lbs |
| Shipping dimensions | 4ft x 4ft x 5ft high |
| Condition info | Very Good |
Additional Features
SILVER SJK-21
Horizontal & Vertical Boring on 32 mm centers.
(21) Spindles in line on one boring head (aluminum alloy single block),
drills vertically from top & horizontally from rear.
Features pneumatic adjustment for horizontal boring.
Specifications:
Max drill dia. is 1.38" (35 mm);
Max panel thickness is 2.36" (60 mm);
Table size 36" x 19.75" (914 x 502 mm).
Length of cross fence is 102" (2,600 mm);
length of aluminum table fences are 39" (1,000 mm) to the left and 28" (710 mm) to the right with flip stops.
Equipped with:
Depth stop adjustment,
(2) holddown air cylinders, and foot pedal operation for clamping/drilling cycle.
2 HP - 3,600 RPM TEFC motor with thermal overload protection and low voltage controls.
