2009 *SOLD* Thickness Planer - Silver SMB630E
Sold
2009 *SOLD* Thickness Planer - Silver SMB630E
Location:Uxbridge, Canada
Description
15HP, 24 inch spiral head planer with insert knives. Used 2009 Silver SMB630E Thickness Planer. REF# 1857BM.
Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications
| Manufacturer | Silver |
| Model | SMB-630E |
| Year | 2009 |
| Condition | Used |
| Stock Number | 1857BM |
| Electrics | 600 V / 3 Ph / 60 Hz |
| Weight | 2000 lbs |
| Shipping dimensions | 50" x 45" x 50" high |
| Condition info | Very Good |
Additional Features
Comes with:

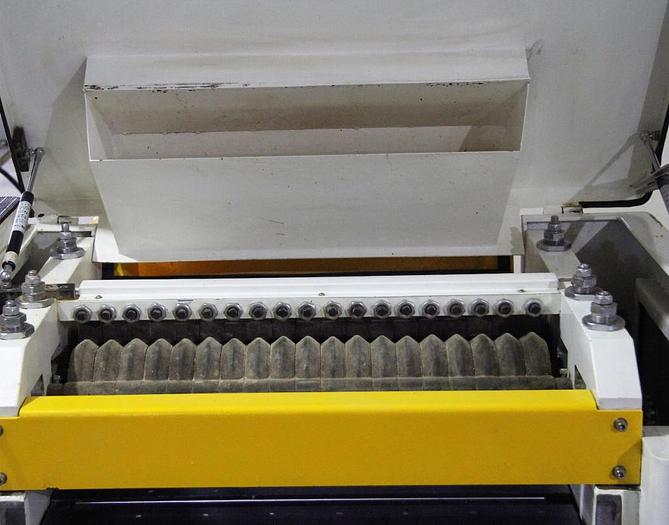

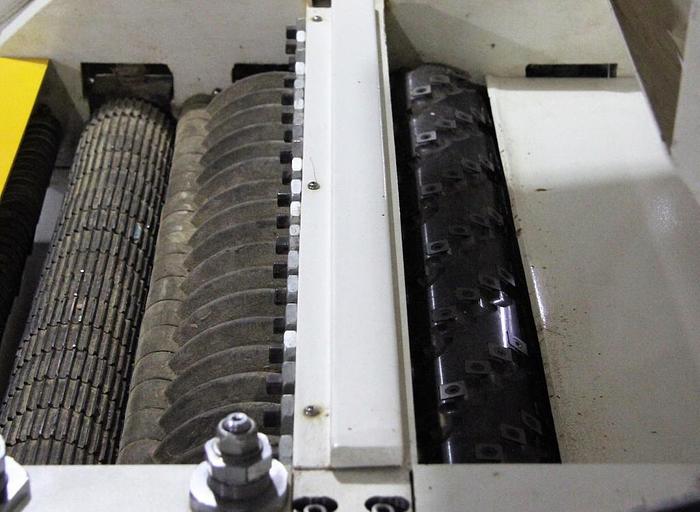

Heavy duty spiral cutter head (insert knife size: 30x12x1.5mm)

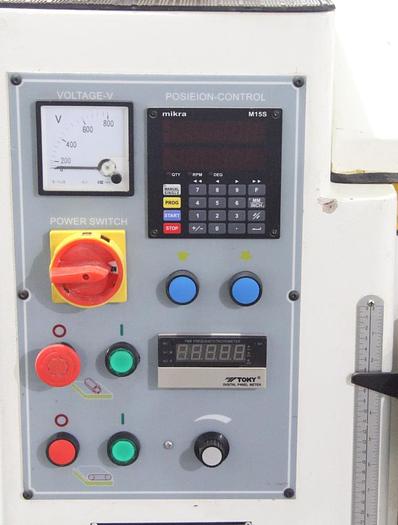

1 HP motor for table up & down, controlled by digital thickness readout
2HP variable speed feeding motor
Max Planing Width: 24” (610mm)
Table Area: 37”x29”
Cutter Head Dia.: 100mm (4”)
Cutter Head Motor: 15HP
Cutter Head Speed: 5200rpm
Feed Driven Motor: 2HP
Elevation Motor: 1 HP
Feed Rollers Dia.: 70mm
Table Rollers Dia.: 60mmx 2
Range of Feed Speed: 0~20m/min
Planing ThicknessRange: 3~300mm(11”)
