*SOLD* Combination Machine SCM L'Invincibile Mini30

Sold

*SOLD* Combination Machine SCM L'Invincibile Mini30

Location:Uxbridge, Canada

Description

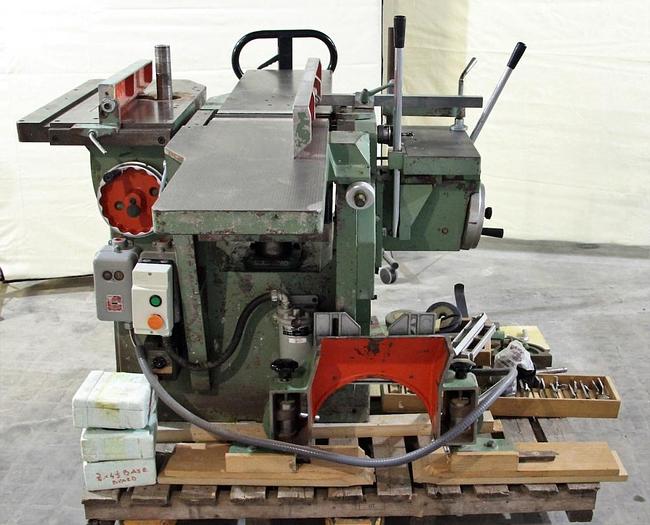

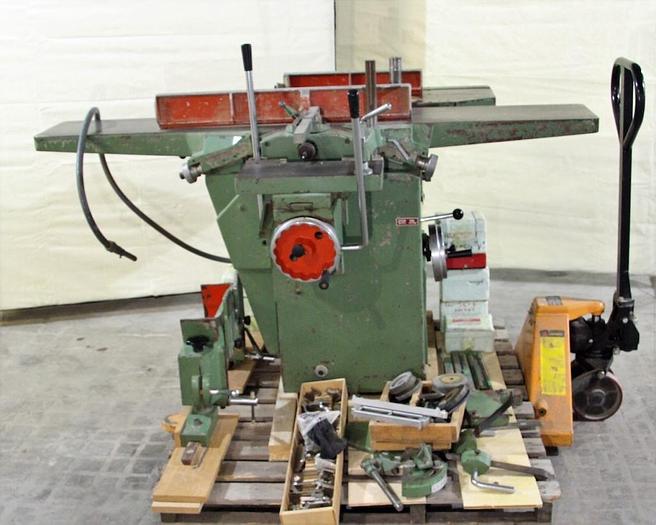

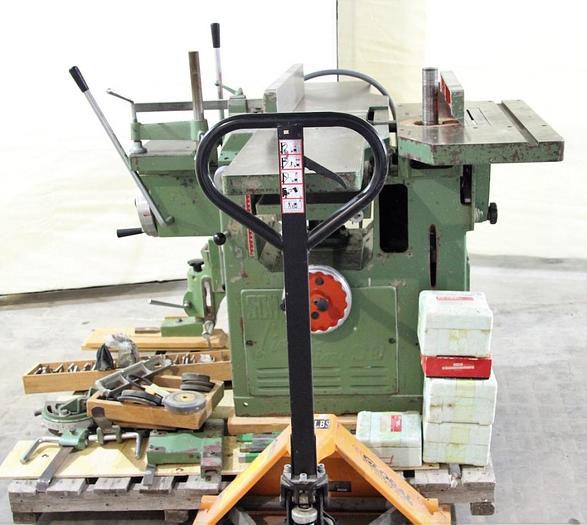

Jointer, Planer, Shaper, Saw, Mortiser. Used 5 in 1 SCM L'Invincibile Mini 30 Combination Machine. REF# 1864BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.

Specifications

ManufacturerSCM L'invincibile
ModelMini 30
ConditionUsed
Stock Number1864BM
Electrics550 V / 3 Ph / 60 Hz
Weight1771 lbs
Shipping dimensions52" x 69" x 48" high.
Condition infoVery Good

Additional Features

SCM l'invincibile Mini 30 functions includes:

Jointer
Thickness planer
Table saw
Spindle Moulder
Mortiser
One piece cast frame ensures accuracy & alignment.
There are 2 3-phase motors:

1 operates the saw, planer, jointer & morticer,
the other has 2 speeds & operates the spindle moulder.

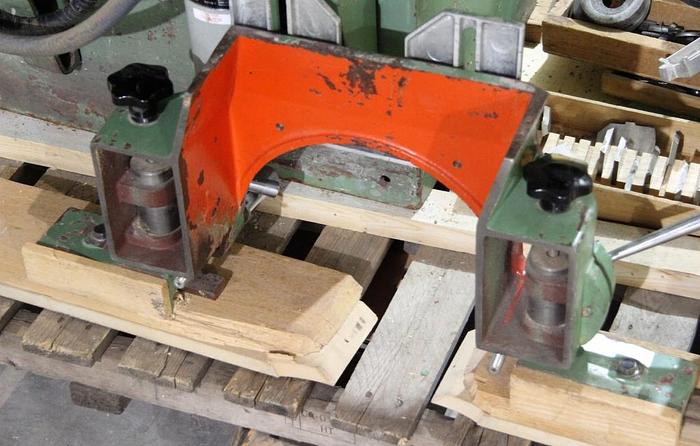

In normal operation, the saw, jointer/planer thicknesser & morticer can be used without the need to make adjustments or alterations to the set up of the machine. To use the spindle moulder, simply remove the saw fence and attach the spindle fence using the 2 threaded clamp bolts.
The mortiser can be easily removed from the machine (2 bolts) to reduce the overall width.
Motors:

Planer/saw - 2 HP
Spindle - 2.2 HP
Dimensions: 1750 x 1280 x 920 mm (68 x 50 x 36")
Weight: 805 KG (1771 lbs)
Specification for each function are as follows:

Jointer

Forged, ground & balanced safety cutterblock.

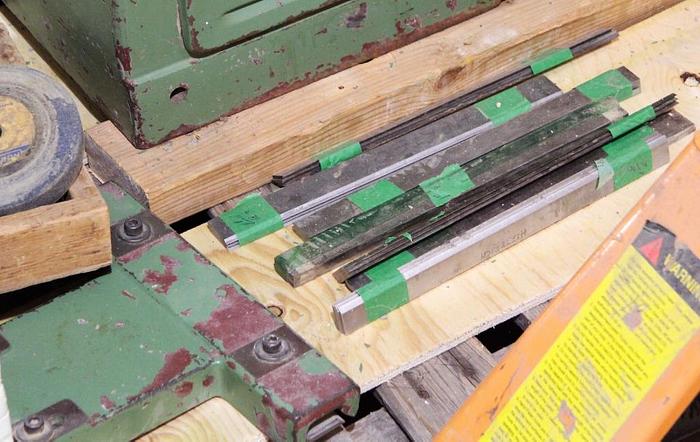

3 knife, spring loaded for easy set up in tapered slots.
Tables - 68" x 12"

Thicknesser

Table - 26" x 12"
Max planing thickness - 200 mm (7 3/4")
Max planing width - 300 mm (11 13/16")
Max cut - 7.5 mm (5/16")

Saw

Table - 400 x 750 mm (15 3/4" x 29 1/2")
Spindle dia - 25mm (1")
Blade dia. - 250 - 265 (9 7/8" - 10 7/16")
Max rip width to right of blade - 180 mm (7 1/16")
Max rip width to right using planer fence - 615 mm (24 3/16")
Fence tilts to 45 deg.

Spindle Moulder

Spindle dia. - 31.75 mm (1 1/4")
Rise & fall - 155 mm (6 1/8")
Speeds - 3500 - 7000 rpm

Mortiser

Table - 185 x 400 mm (7 5/16" x 15 3/4")
Transversal stroke - 85 mm (3 3/8")
Vertical stroke - 160 mm (66 5/16")

Sliding Table

Size - 200 x 500 mm (7 7/8" x 19 11/16")
Stroke length - 950 mm (37 3/8")
