*SOLD* Overhead Pin Router - SCM R9

Sold

*SOLD* Overhead Pin Router - SCM R9

Location:Uxbridge, Canada

Description

5.5HP Used SCM R9 overhead pin Router. REF# 1870BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.

Specifications

ManufacturerSCM
ModelR9
ConditionUsed
Stock Number1870BM
Electrics575 V / 3 Ph / 60 Hz
Weight1430 lbs
Shipping dimensions32" x 72" x 71" high
Condition infoVery Good

Additional Features

Table dinemsions 905mm x 770mm.
Vertical stroke of table: 200mm.
Vertical stroke of chuck: 100mm,
Min. distance between table and chuck:  200mm.
Max. distance between table and chuck: 300mm.
Standard morse taper adapter MK2.
Spindle speed 10,000 and 20,000 rpm.
Main motor 5.5 hp.
Max working height 1400mm.
Standard machine net weight 650kg.

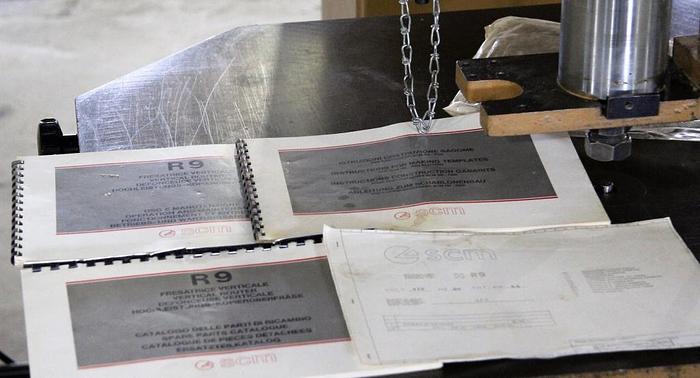

Manuals included.
