2008 *SOLD* CNC - AMI (EBF)
2008 *SOLD* CNC - AMI (EBF)
Location:Uxbridge, Canada
Description
See video. Very nice, gently used 5 x 10 flat table nesting cnc. The Class R router uses a heavy duty frame which gives EBF the ability to install an industrial HSD Spindle of 10 HP. This unit will cut wood, plastic, and aluminum. The Class R features include an 8 station automatic tool changer and an automatic tool measuring device. Used AMI (EBF) Flat table nesting CNC. REF# 1869BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications
| Manufacturer | AMI (EBF) |
| Model | 510 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 1869BM |
| Electrics | 600V with included transformer / 3 Ph / 60 Hz |
| Shipping dimensions | 72" x 150" plus controller. |
| Quality | Very Good |
Shipping details
| Width | 6 ft |
| Height | ft |
| Length | 12.5 ft |
| Weight | 2270 kg |
Additional Features

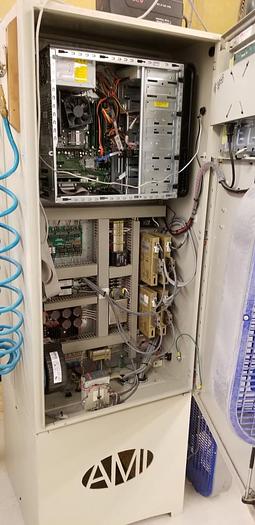

EBF Controller including industrial sealed enclosure,
industrial fanless touchscreen computer,
remote help technology,
USB port,
keyboard and mouse.
Yaskawa inverter for programmable spindle speed,
Solid aluminium grid table top with 4 vacuum zones selection
Brushless servo motors, 1200 IPM
Counter-balanced ballscrew drive on Z axis
Helical rack and pinion drive on X and Y axis
Dual drive on the gantry
High precision linear rails on all axis
Automatic gantry squaring

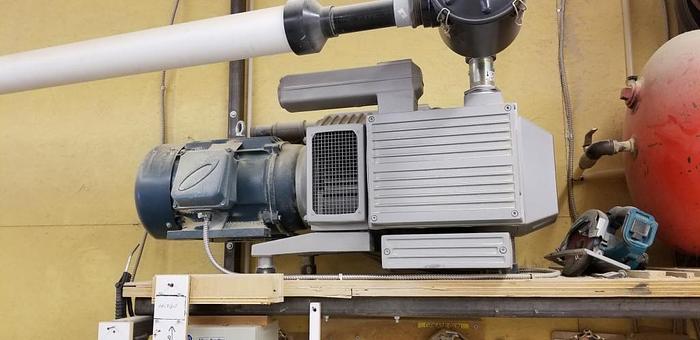

Part hold-down pump included
Air supply to machine: 1/2", 95-105 PSI
Dust extraction at dust hood is 6"
Machine will come with 9 tool holders and several extra collets of varying sizes
HSD Spindle 10 HP 24 000 RPM ISO30
Automatic height tool changer station

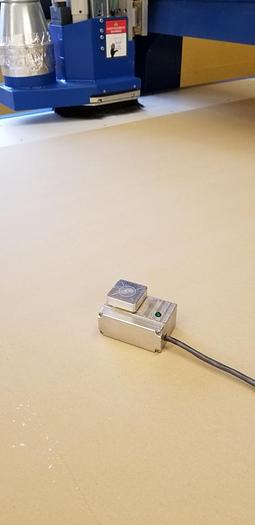

Automatic tool length sensor
Standard G-code supported
Table sizes: 5' x 10'
