2015 *SOLD* Dust Collector - Craftex CX402

Sold

2015 *SOLD* Dust Collector - Craftex CX402

Location:Uxbridge, Canada

Description

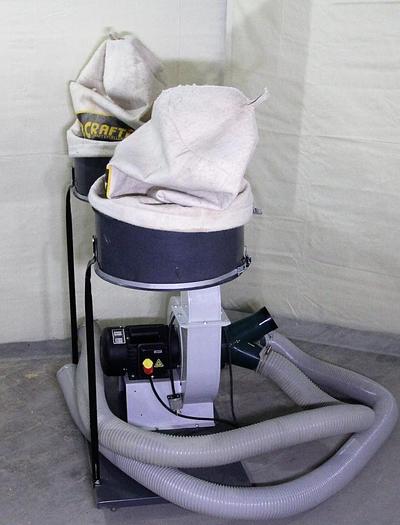

Designed with the large shop in mind. Used 2015 Craftex CX402 Dust Collector with Dual Canisters. REF# 1882BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Show All

Specifications

ManufacturerCraftex
ModelCX402
Year2015
ConditionUsed
Stock Number1882BM
Electrics240 V / 1 Ph / 60 Hz
Weight189 lbs
Shipping dimensions2ft x 5ft x 4ft high
Condition infoVery Good

Additional Features

This dust collector tackles the heaviest of jobs with

Dual canisters,
conjoining steel duct arm
large precision balanced impeller, .
Canisters are made of spun bond polyester and feature 6 times the filtering area of standard cloth bags.
Convenient canister cleaning handles allow for easy removal of caked on dust with a simple clockwise or counter clockwise half turn.
Steel duct arm from the aluminum impeller to the canisters improves air flow and allow for quick removal of large chips. You will appreciate the power, improved efficiency and reliability of this new dust collector.
Other feature & specifications:

Dual Canister Filters with cleaning handle
Steel Duct Arm
Impeller – 12-3/4" Aluminum
Integrated mobile base
6" main Inlet with removable "Y" (three 4" inlets)
Powder Coated Paint
Includes plastic bottom bags & quick release clamps
Bearings are sealed & permanently lubricated
CSA Approved
Made in an ISO 9001 Factory Specifications

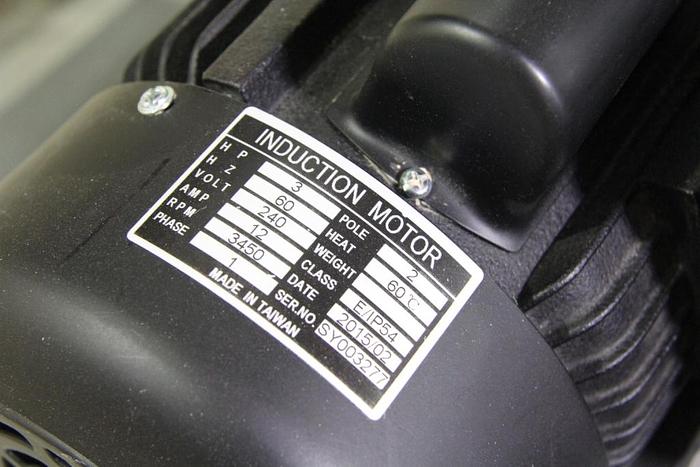

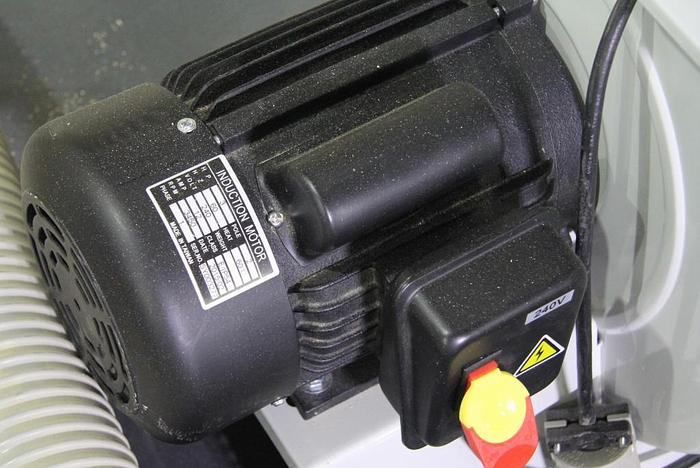

Motor - 3HP, 220V, 60HZ, TEFC, 12 Amps
Motor Speed – 3450 RPM
Air Suction Capacity – 2,320 CFM
Static Pressure – 15.5"
Inlet - 6" main with removable "Y" (three 4" inlets)
Noise Level rated at – 85 dB
