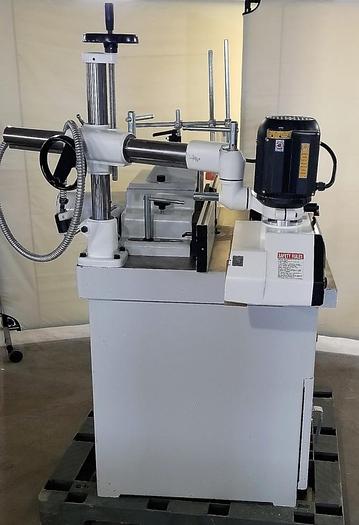

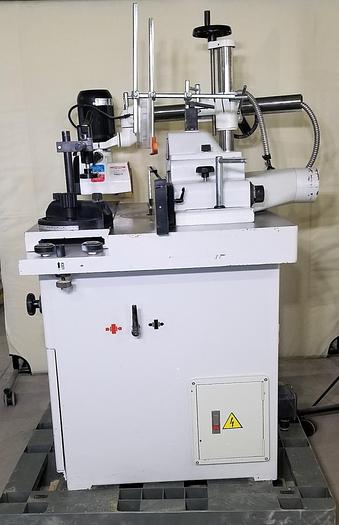

2015 *SOLD* Shaper - CanTek SS-512CSB with feeder

Sold

2015 *SOLD* Shaper - CanTek SS-512CSB with feeder

Location:Uxbridge, Canada

Description

Like NEW sliding table shaper with feeder and 7.5hp motor! Used CanTek SS-512CSB Shaper with feeder - REF# 1897BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.

Specifications

ManufacturerCanTek
ModelSS-512CSB Shaper with feeder
Year2015
ConditionUsed
Stock Number1897BM
Electrics576 V / 3 Ph / 60 Hz
Weight1200 lbs
Shipping dimensions48"L x 39"W x 52" H
Condition infoVery Good

Additional Features

Includes (1) 1 1/4″ interchangeable spindle (other spindle diamters available upon request)
Cast iron ground & polished table with insert rings
Precision ground & electronically balanced spindle

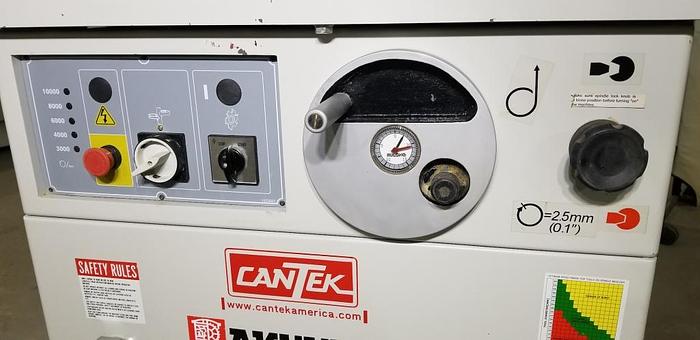

Micro spindle height adjustment with dial indicator
Forward/reverse spindle rotation
V-belt drive with 5 feed speeds is easily accessed from the front of the machine
Electric spindle brake for added safety
Spindle lock – with limit switch safety, machine will not start with lock engaged
Adjustable “finger” type fence for adjust
Independent micro-fence adjustment on both sides
Table is pre-drilled to mount a power feeder
Table size 31 ½” x 39.4”
Spindle speeds (5) 3000/4000/6000/8000/10000 RPM
Spindle taper 5 MT
Spindle diameter 1 ¼"
Motor 7.5 HP
Sliding table size 39.4” x 10 ¼”
Sliding table stroke 37”
Largest diameter of cutter 13 ¼”
Fence size 6” x 43”
Vertical spindle stroke 5 ½”
Useable length of spindle 5 ½” long
Electrics 230/3/60 = 22 Full Load Amps
Dust port (1) 5”
Total HP 7.5 HP
Net weight 1034 lbs.
Machine dimensions 48.4” x 39.4” x 52 ¾”
Shipping weight 1166 lbs.
Shipping dimensions 45 ¼” x 37” x 41”
