2007 *SOLD* Sliding Table Saw - General 50560M3

Sold

2007 *SOLD* Sliding Table Saw - General 50560M3

Location:Uxbridge, Canada

Description

THREE SAWS IN ONE! COMPACT & VERSATILE DESIGN. Tilting Arbor Scoring Saw (with sliding table sets). 10" 5HP main blade / 4" 1/2HP scoring blade. 3 Phase. Used 2007 General International Model 50560M3 Sliding Table Saw. REF# 1914BM-C. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Show All

Specifications

ManufacturerGeneral International
Model50-560M3
Year2007
ConditionUsed
Stock Number1914BM-C
Electrics600 V / 3 Ph / 60 Hz
Weightapprox 400 lbs
Shipping dimensions64"L x 34"W x 34"High
Condition infoVery Good

Additional Features

CAN BE USED AS A REGULAR SAW, BUT INCLUDES A BUILT IN SLIDING TABLE FOR STABLE EFFORTLESS CROSSCUTS & A SEPARATE SCORING BLADE FOR CHIP FREE CUTS IN MELAMINE & LAMINATES.
Anodized European style sliding table.
Powerful totally enclosed fan cooled (TEFC) main motor and separate 1/2 HP motor for scoring blade.
Separate safety lock out switch for scoring motor can be turned off when cutting solid wood.
Quick release combination riving style splitter with anti-kickback pawls and see-through blade guard with direct dust extraction hook-up.
Solid cast-iron table with anodized aluminum coating for improved friction free performance and longer table life.
Includes deluxe cast-iron miter gauge - one miter gauge T-slot in table.
Heavy-duty cabinet mounted cast-iron trunnions.
Precision built rip fence system with 50" guide rails for maximum rip capacity.
Cross cut fence with precision angle indicator fully adjusts up to 45 left or right, includes easy to use flip up work stop and workpiece hold-down.
Arbor lock for easy blade changes on main and scoring arbor, with safety lock-out in blade change area to prevent unintentional start-up.
Second operator's safety stop switch.
(5HP, 1/2HP, 3PH)
Main Blade Diameter: 10" (254mm)
Scoring Blade Diameter: 4" (100mm)
Main Blade Arbor Diameter: 5/8"
Scoring Blade Arbor Diam.: 20mm
Main Blade Max Depth of cut: 3-1/8"
Scoring Blade Max Depth of cut: 5/16"
Main Blade Max Thickness at 45 deg cut: 2-1/8"
Scoring Blade Max Thickness at 45 deg cut: 1/4"
Table in Front of Saw Blade at Max. cut: 10"
Max width of Dado: 13/16"
Max diam. of Dado: 8
Dust Port DIam. / Blade Guard hose diam: 4" / 2"
Table Height: 34"
Table Size (with extension): 36.85"L x 21.1"W
Table Size (without extension): 36.85"L x 11.1"W
Main Arbor Speed: 4200RPM
Scoring Arbor Speed: 4200RPM
Max, Rip to right of blade: Standard 27"
Sliding Table Dimensions: 320mm(W) x 1500mm(L)
Sawing Cut Length/Width: 1270mm(W) x 1500mm(L)
Net weight (Saw only): 400lbs

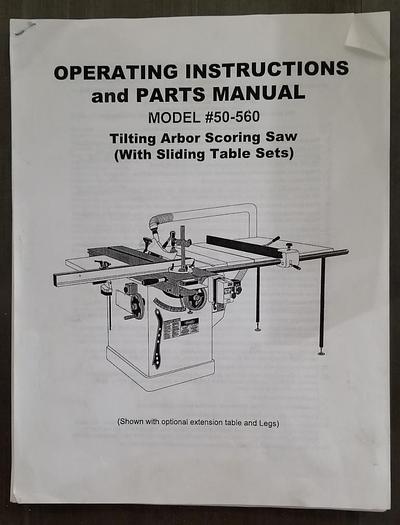

Complete with Operating instructions and Parts Manual
