2004 *SOLD* Edgebander - Cehisa EP8

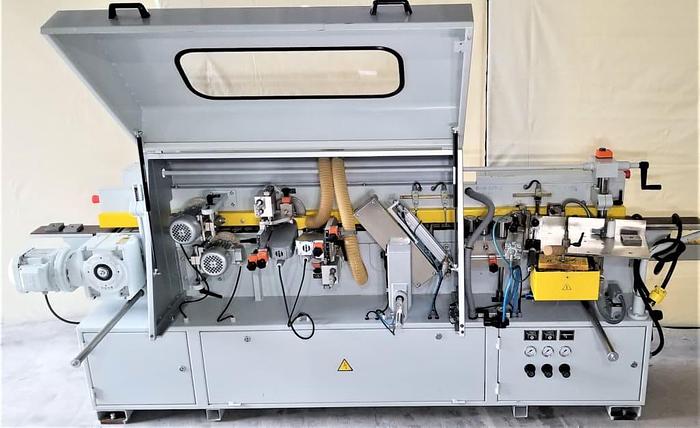

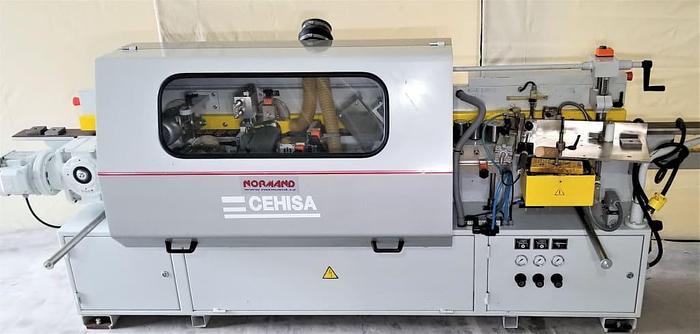

The Cehisa EP8 Edgebander is constructed to a high standard and built on a solid welded steel chasis.

front & rear end trim and a top & bottom trimming station as well as the addition of a buffing unit.
coil material up to 3mm and strip fed materials up to 5mm.
High precision double end saws (single motor) running on a diagonal axis

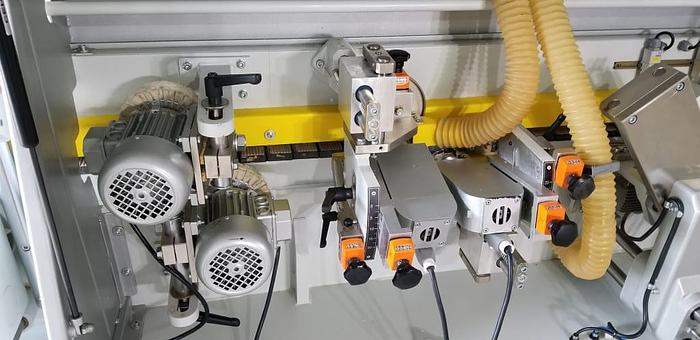

Top and bottom radius trimmers driven by induction motor, unlike carbon brush motors which are more susceptible to burn out
Machine fitted with twin head buffing station to remove any discolouration that may appear on the finished edge
Extendable panel support via linear bearings
Panel feed track is caterpillar style with dual rubber rollers to eliminate any marking of the finished panel
working units are well spaced and easily accessible so that cleaning and adjustment is simple and effortless
Maximum edge tape thickness of 3mm PVC
Maximum solid timber lippings to 5mm

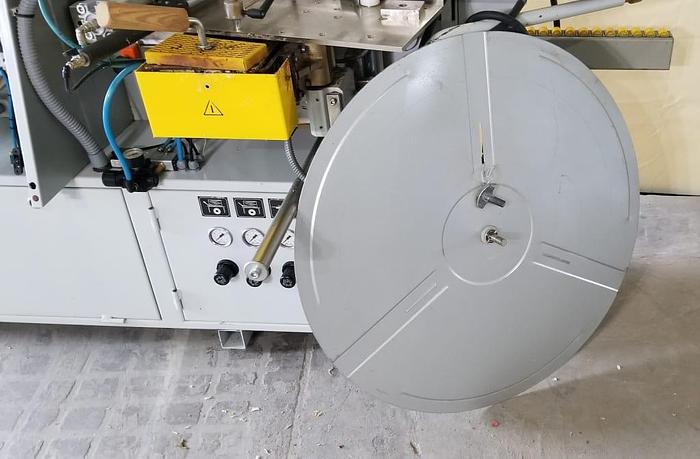

Automatic tape feed, i.e: melamine, PVC, ABS, veneer and laminate
Quick-melt glue pot with 10-15 minute heat up time
Electronic heat control with digital LED read out for maximum temperature, security temperature and idle temperature
Simple manual adjustment of pressure beam with digital siko read out of panel thickness
Full cabinet protection to minimise sound and improve extraction effectiveness
10 metres per minute feed speed
