2005 - Sliding Table Saw - Altendorf WA6
Sold

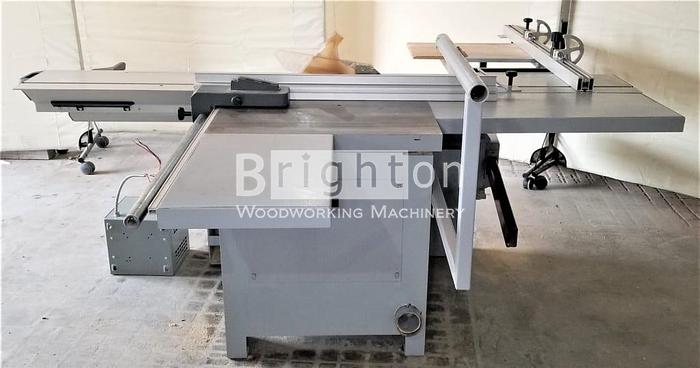

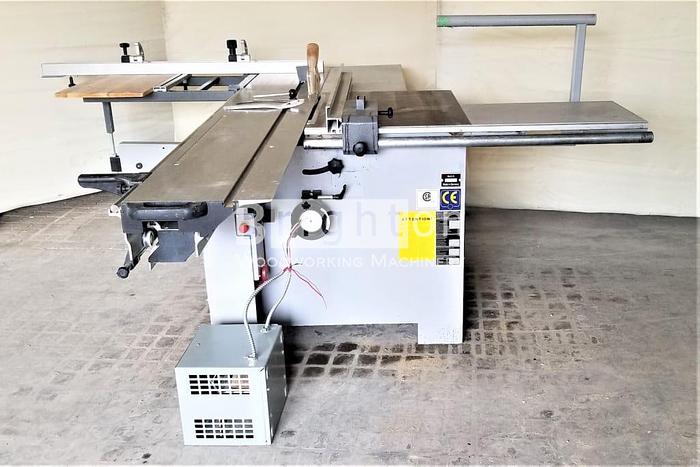

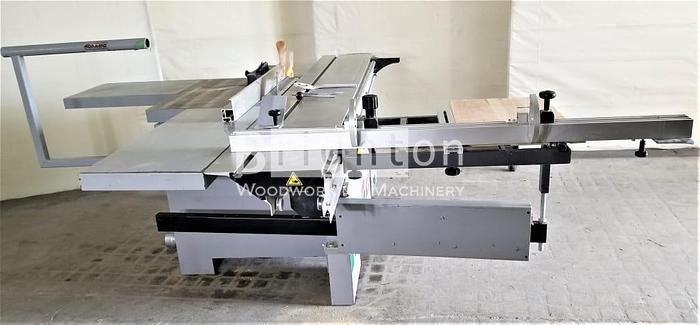

2005 - Sliding Table Saw - Altendorf WA6
Location:Uxbridge, Canada
Description
Very nice, gently used Altendorf WA6, 8.5ft sliding table saw. REF# 1918BM.
Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications
Manufacturer | Altendorf |
Model | WA6 |
Year | 2005 |
Condition | Used |
Stock Number | 1918BM |
Electrics | 600 V / 3 Ph / 60 Hz (with included transformer) |
Weight | 1000 lbs |
Condition info | Very Good |
Additional Features
Cast iron fixed table dimension 600 x 820mm
Sliding table dimension 2600 x 404mm
Max. rip capacity 1300mm
Max. crosscut capacity 2700mm
Main saw blade diameter (max.) 315 mm
Main saw bore 30 mm
Max. cutting height at 90o (w/ 315mm) 87mm (w/ 315mm blade)
Max. cutting height at 45o 60mm (w/ 315mm blade)
Main saw motor 5.5 HP
Main blade speed 4200 RPM
Scoring saw blade 120 mm
Scoring saw blade bore 20 mm
Scoring blade motor 0.5 HP
Scoring blade speed 8200 RPM
Blade tilting capacity 0-45o
Dust outlets (2) 100 / 60 mm
Table height from floor 910mm
