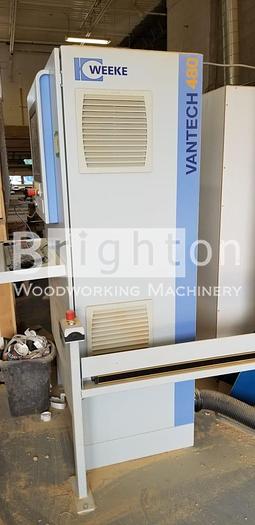

2014 Weeke Optimat BHP008 / Vantech 480 CNC Router
Sold
2014 Weeke Optimat BHP008 / Vantech 480 CNC Router
Location:Ontario, Canada
Description

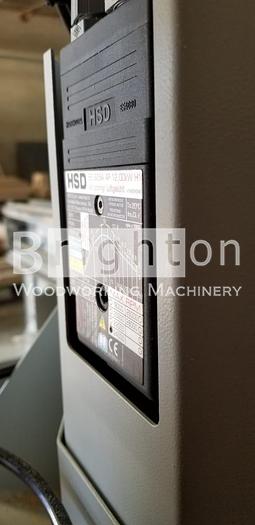

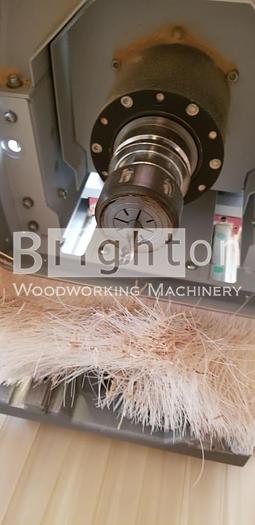

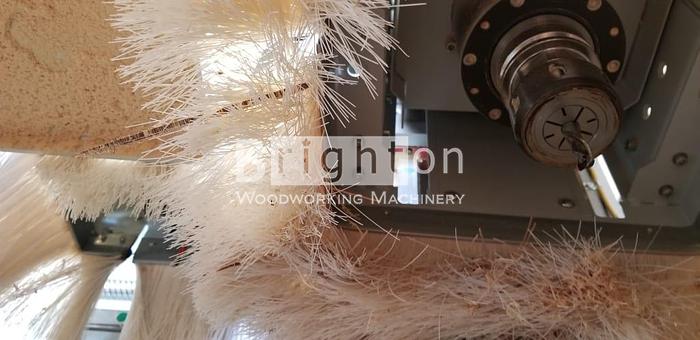

12 hp router with 24000 variable rpm. Used 2014 Weeke Optimat BHP008 / Vantech 480 CNC Router. REF# 1939BM
Includes:

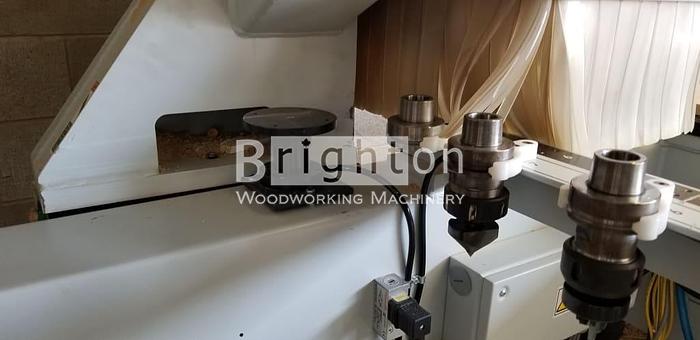

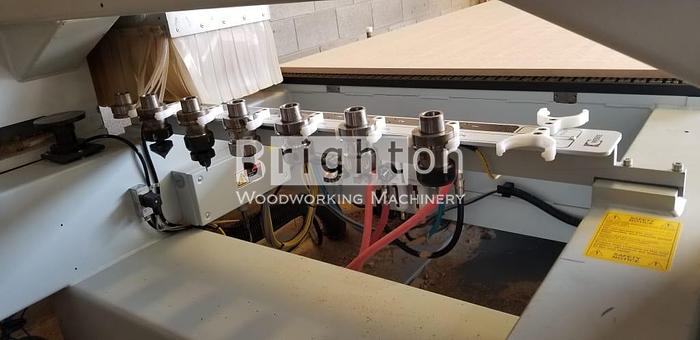

3 HSK tool holders
7 individually selectable drills with 32 mm spacing.
3 Becker vacuum pumps, 90 cubic meters
Tool measurement device
2 servo drives on either side of the gantry
Check out Video of this in action and pictures of produced product below...
Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications

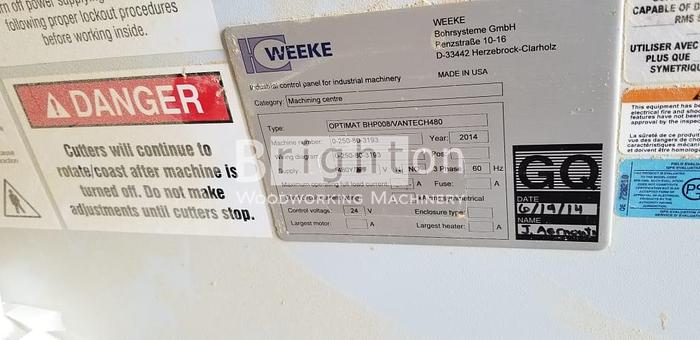

| Manufacturer | Weeke |
| Model | Optimat BHP008 / Vantech 480 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 1939BM |
| Electrics | 480 V / 3 Ph / 60 Hz |
| Weight | approx 7700 lbs |
| Shipping dimensions | main table 16ft x 8ft x 7ft high, controller 4ft x 3ft x 7ft. |
| Condition info | Very Good |
Additional Features
Technical Data (Basic Machine):
Working Field: 2520mm/99.2" (X) , 1250mm/49.2"(Y), 100mm/3.9" (Z)
Travel Range: 3710mm / 146.1" (X), 1660mm / 65.4" (Y), 245mm / 9.6" (Z)
Floor Space (Basic Machine): 6580mm / 259.1" (L), 4420mm / 172.0" (W)
Floor Space (Handling Concept Outfeed): 8100mm / 318.9" (L), 4420mm / 172.0" (W)
Vector speed X/Y - Z-axis: 96 - 25 m/min
Compressed air connection: R1⁄2 inch
Compressed air required: 7 bar
Dust extraction port: Ø 200* mm
Dust extraction volume: min. 3170** m3/h
electrical power – total connection load: 27.5** kW.
