1966 Dovetailer - Shoda DV131
Sold
1966 Dovetailer - Shoda DV131
Location:Uxbridge, Canada
Description
Very clean, great condition , 16 spindle, Shoda dovetail machine. Model DV131. Ref # 1921BBM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications
| Manufacturer | Shoda |
| Model | DV 131 |
| Year | 1966 |
| Condition | Used |
| Stock Number | 1921BM |
| Electrics | 550 V / 3 Ph / 60 Hz |
| Weight | approx 1320 lbs |
| Shipping dimensions | 40" x 24" x 42" high |
| Condition info | Very Good |
Additional Features
Used Shoda(Japan) model DV-131/ 16 spindles Dovetail Machine.

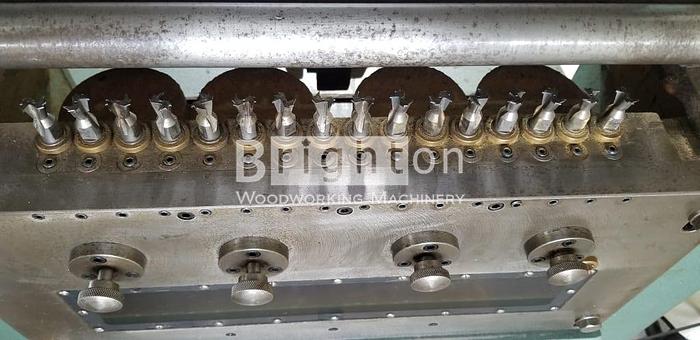

Manual and lever operated. Including 16 TCT dovetail bits(just sharpened)
Max.effective work piece thickness: 10mm -25mm (3/8" - 1")
Max. effective work piece width: 410mm (16")
Cutter spindle speed: 4,100 rpm
Number of cutter bit: 16
Pitch of cutter bit: 25mm (1")

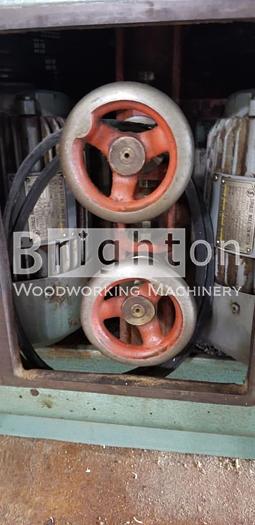

Electric motors: 2 x1.5 kw
Net Weight: 600kg (1320 lbs)
