*SOLD* Compressor - King KC5160V1

Sold

*SOLD* Compressor - King KC5160V1

Location:Uxbridge, Canada

Description

Vertical, 60 gallon, USA made, Used King model KC5160V1 compressor. Approx new replacement cost Canadian $1300. REF# 1925BM. Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Show All

Specifications

ManufacturerKing
ModelKC-5160V1
ConditionUsed
Stock Number1925BM
Electrics208/230 V / 1 Ph / 60 Hz
Weight280 lbs
Shipping dimensions31” x 20” x 67”high.
Condition infoVery Good

Additional Features

3 cylinder cast iron single stage oil lubricated pump
High output 18.5 CFM @ 100 PSI
150 PSI max pressure for optimum tool performance
60 gallon ASME registered tank provides longer run times
ASME safety valve

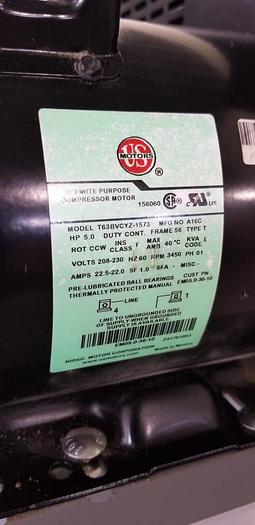

Thermally protected American 6.5 peak HP motor with reset
Belt drive with sturdy enclosed metal belt guard
Large intake “Auto-drop” metal filters
Heavy-duty 1/2” ball valve and easy to read tank pressure gauge
Pump with “V” style design minimises vibrations, improves cooling and extends compressor life
High efficiency reed valves for maximum performance
Technical Specifications:

Motor: 6.5 Peak HP
Factory pressure setting (adjustable to): 95-125 PSI (Max 150 PSI)
Air Delivery @ 40 PSI: 22.6 SCFM
Air Delivery @ 90 PSI: 18.5 SCFM
Tank Size: 60 Gal.
Motor amperage: 23 Amp.
RPM: 3,450
Voltage: 208/230V, 1 phase, 60 Hz
Assembled dimensions (LxWxH)/weight: 31” x 20” x 67” / 280 lbs
Package dimensions (LxWxH)/weight: 31” x 24” x 73-1/2” / 290 lbs
