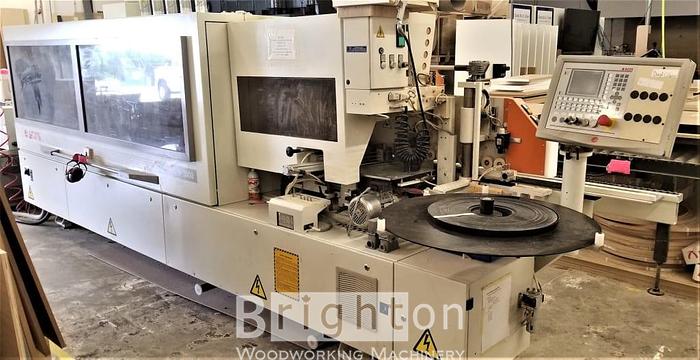

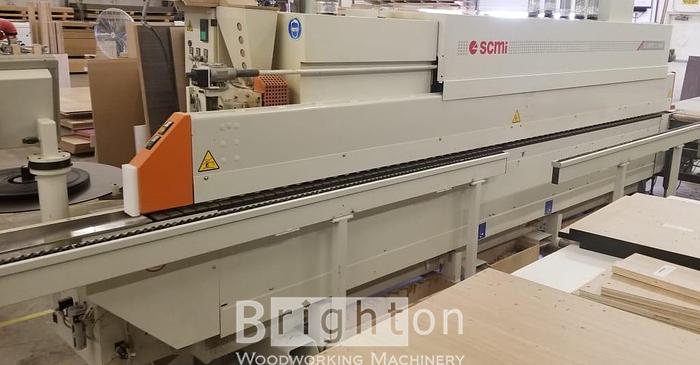

2005 SCM Olimpic S3000 Edgebander for parts
2005 SCM Olimpic S3000 Edgebander for parts
Location:Uxbridge, Canada
Description

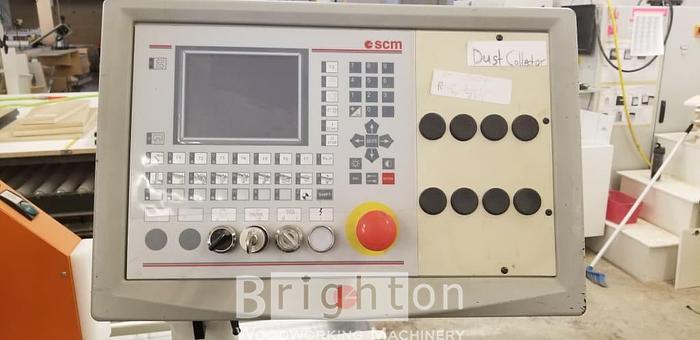

Controller communication issue. All the other parts are great. Used egdebander for parts.
Very heavy duty SCM S3000 edgebander c/w with premelt station.
Specifications
Manufacturer | SCM |
Model | Olimpic S3000, Used egdebander (for parts) |
Year | 2005 |
Condition | Used |

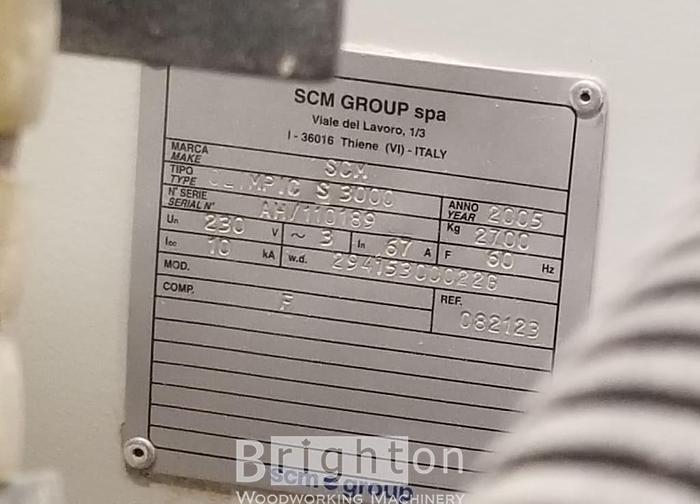

Serial Number | AH/110189 |
Stock Number | 1941BM |
Electrics | 230 V / 3 Ph / 60 Hz (with transformer for 600 volt. ) |
Weight | 2700 kg (6000 lbs) |
Shipping dimensions | 19'L x 48" x 80" high |
Condition info | Very Good |
Additional Features
Used egdebander for parts.
15 mm Max. edge cap., 2" max. banding height; 2-3/8" min. panel width and 6-5/16" min. length.

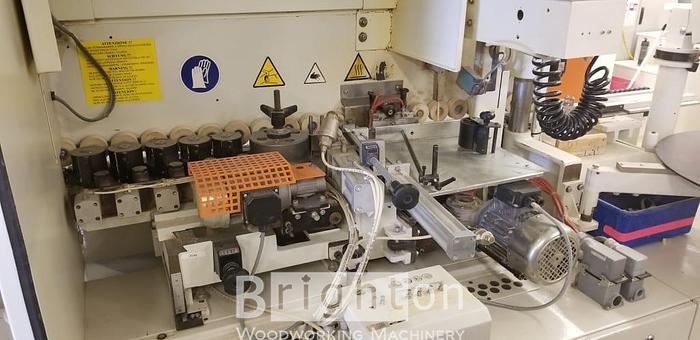

Automatic strip & coil feed magazine w/Heavy Duty 3 mm PVC cap. guillotine. "Quick melt" glue system over an Teflon coated "Quick release" glue pot with "reversible" glue roller (through controller), application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control; 5-roll pressure unit w/pneumatic controls for all pressure rollers.
Double motor front & rear end trim (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide, Heavy Duty casting with dust collection system

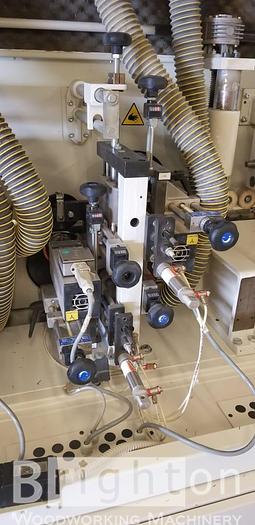

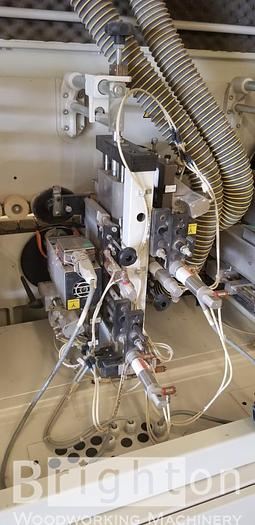

Top & bottom fine/radius trimmer (0.8 HP - 12,000 RPM motors) with quick change/discsonnect motors tits 0-25°.
Second Top & bottom fine/radius trimmer (0.8 HP - 12,000 RPM motors) with quick change/discsonnect motors tits 0-25°.

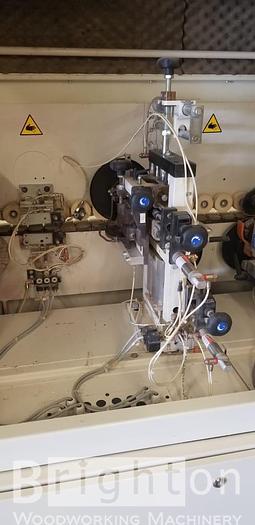

Top & bottom PVC scraper for 3 mm radius PVC controlled through controller, Pneumatic positioning and "quick change" for switching between 3mm and 2mm PVC.
Top & bottom glue scraping station.

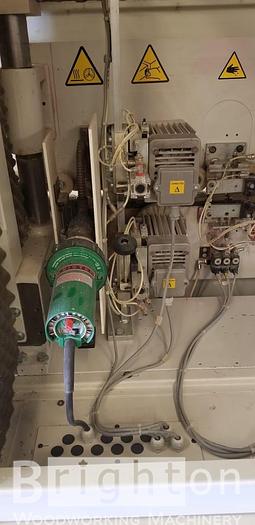

Top & bottom oscillating buffing station (0.33 HP - 2,800 RPM motors). Heat gun to bring luster back to PVC after scraping.
40-59 FPM feed speed, 1 HP drive; heavy 3/4" drive chain with chain pads traveling on round & flat tracks.
