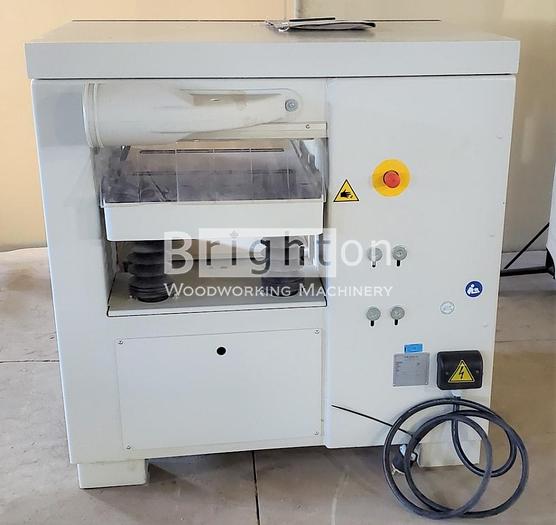

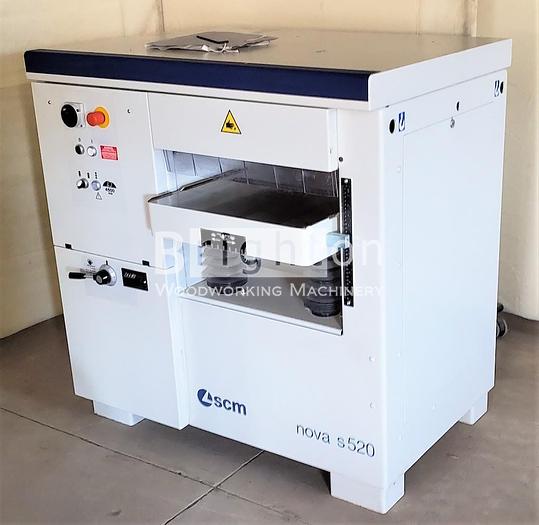

2018 Planer - SCM Nova S520

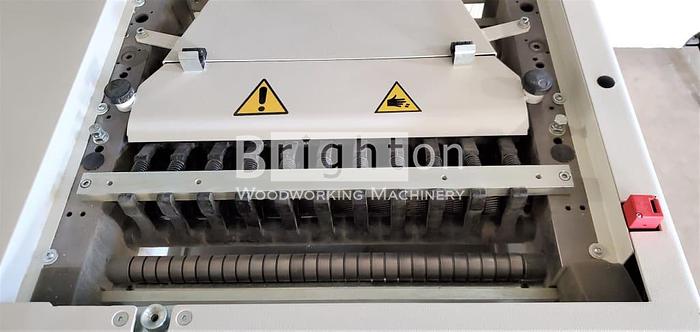

Feed system

Reliability and efficiency are combined. Either two or three motorized large diameter upper feed rollers, together with the rubber-coated outfeed rollers, guarantee efficient and constant feed with all type of wood.
Table Mechanism

4large diameter screws support the worktable. They ensure high rigidity in all conditions. This movement system allows to keep the table position steady without need to lock it.
Max working width 520mm
Main motor power 5.5kw (S1) 7kW (S6) max
Worktable dimensions 520 x 900mm
Working height (min / max) 3.0 / 250mm
Maximum stock removal 8mm
Minimum working length 220mm
Minimum working width 10mm
Cutterblock speed 4500rpm
Cutterblock diameter 120mm
No of knives 4
Dimensions of standard knives 520 x 35 x 3mm
Feed speeds 5 - 8 - 12 - 18 m/min
Dust exhaust diameter 150mm
Complete with:

thicknessing table with vertical moving by means of 4 steel screws, 1 rubber covered thicknesser outfeed roller
2 idle table rollers in thicknesser bed
1st sectional feed roller in steel
powered lifting of thicknessing table, 2 speeds with micrometric adjustment

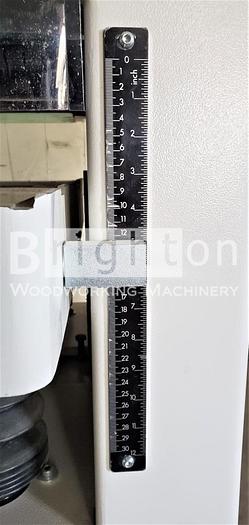

numerical readout of working height with decimal controls
c.e. norms consisting of:

protection on access of in feed roller
cutter block and knife fitting gibs with technical specs and instructions engraved on same

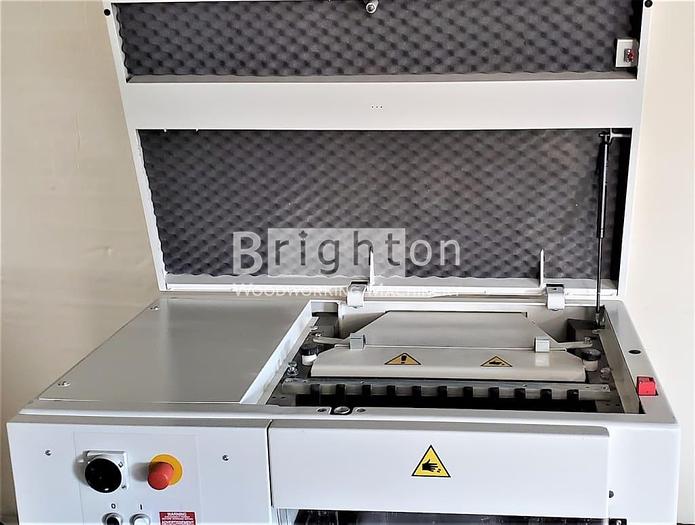

soundproof infeed and outfeed barrier
safety bar for max. Stock removal
safety microswitch on protection hood
automatic brake on motor
emergency pushbotton on exit side of rear table
padlockable main switch
overload switch protection
auxiliary low voltage circuit (110 volts)
manual start-delta-start
Features:

Digital Readout to thickness table,
Table running on 4 precision screws
Automatic braking

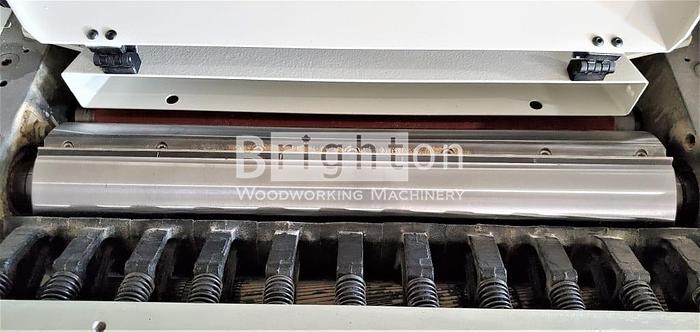

Large diameter 4 knife planer block
