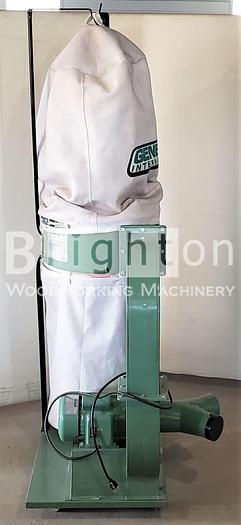

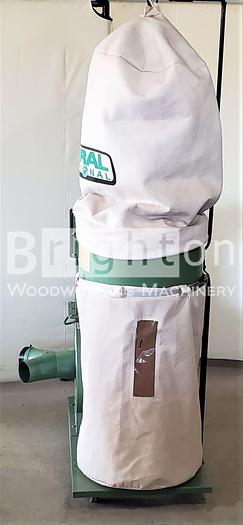

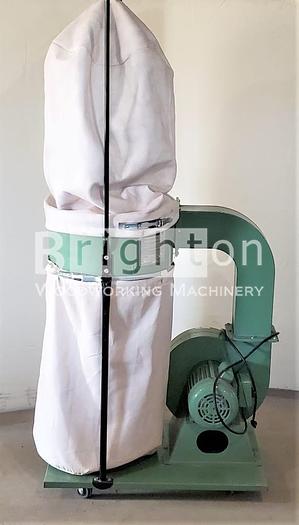

2001 Dust Collector - General 10-110M1

Heavy-duty motor design with a continuous duty rating for industrial applications.
Equipped with totally enclosed, fan cooled, permanently lubricated motor.
Heavy-duty base, mounted on four swivel casters for total mobility and stability.
Precision spin-balanced aluminum impeller for smooth operation, minimal noise and to reduce the risk of sparking.
Equipped with 2 micron filter bag (not included on “CF“ canister filter model).
Quick-release bag clamps with metal straps.
Safety switch with key, prevents unit from being started when key is removed.
Heavy-duty collection bag made from extra thick, transparent, recyclable plastic.
Inlet diameter (1) 6” (152 mm) / (or 2) 4" (102 mm)
Airflow capacity 1550 cfm
Blower wheel diameter 12 3/4” (323 mm)
Sound rating 80 to 90 dB
Bag diameter 20” (508 mm)
Bag capacity 42 gallon (190.9 l)
Static pressure (without bag) 11 1/4” of water
Motor M1, 2 HP, 240 V, 1 Ph, 9 A
Weight 132 lbs (60 kg) - 10-110M1
