SCM *****************SI16-WA Used Sliding Table Saw #CBM2331
SCM *****************SI16-WA Used Sliding Table Saw #CBM2331
Location:Uxbridge, Canada
Description
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | SCM |
| Model | *****************SI16-WA Used Sliding Table Saw |
| Condition | Used |

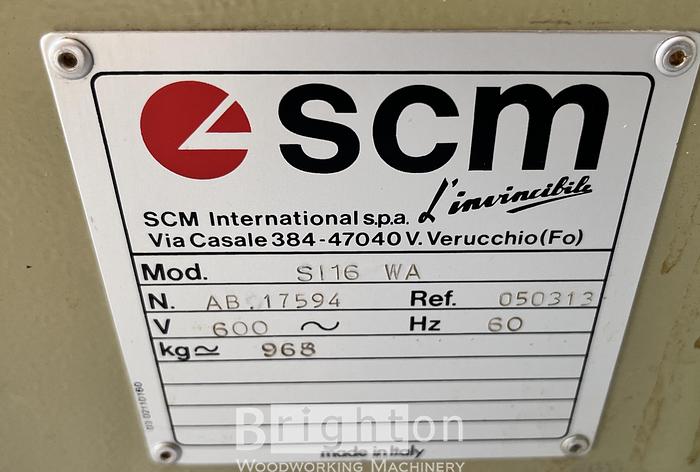

| Serial Number | AB. 17594 |
| Stock Number | CBM2331 |
| Quality | Very Good |
| Electrics | 600V / 3Ph / 60 Hz |
Shipping details
| Weight | 968 kg |
Additional Features
Known for their traditional machines, SCM make some of the most popular panel saws around. This SI16WA is an older model, which was heavily overengineered to have a wide working table and cast iron tables.
The rip fence is mounted on a solid round bar. The aluminium fence rotates for handling thin material and blade tilting. The mainblade assembly has both tilt and rise and fall operations, with the angle being measured off a large, easy to read scale.
Advantages:
Sawblade tilt to 45 degrees
3m sliding table
Panel loading roller on the outrigger
2 flipover stops
Oversized aluminium cross cut fence
Additional panel support
126" (3,200 mm) Stroke of the sliding table with scoring.

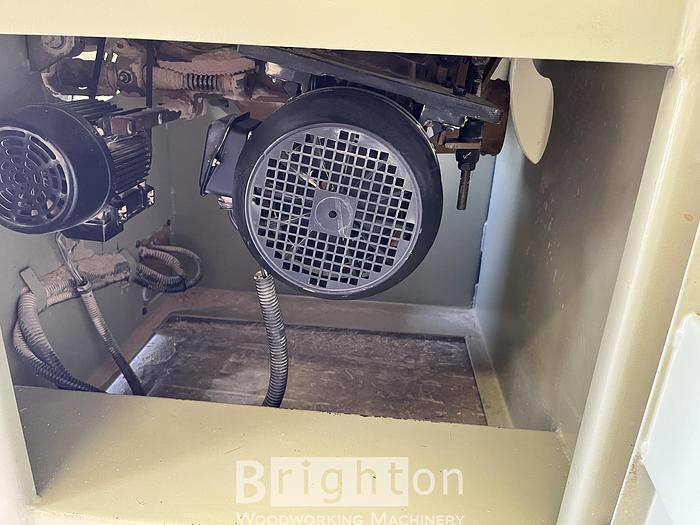

9 HP main motor and 1 HP scoring motor, with (3) main arbor speeds at 3,200 - 4,500 & 6,000 RPM and (1) scoring arbor speed at 9,800 RPM.
Anodized surface on the slide made from light alloy, 0° - 45° tilting arbor.
4-1/2" Depth of cut with standard 13-3/4" blade dia.; max blade is 15-3/4"; 30 mm main arbor & 20 mm scoring arbor; 39" max. width to rip fence; 45-1/4" x 24-3/4" fixed table.
Includes: Dust outlet, crosscut fence with (2) large flip stops, & 2-position sliding table lock
