2004 Thermwood CS40 5x10 Used CNC c/w 2 x 7.5hp vacuum pumps #BM2314
2004 Thermwood CS40 5x10 Used CNC c/w 2 x 7.5hp vacuum pumps #BM2314
Location:Uxbridge, Canada
Description
2004 Thermwood CS40 5x10 Used CNC with 2 vacuum pumps
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Thermwood |
| Model | CS40 5x10 Used CNC c/w 2 x 7.5hp vacuum pumps |
| Year | 2004 |
| Condition | Used |
| Stock Number | BM2314 |
| Quality | Very Good |
| Electrics | 380V / 3Ph / 60 Hz |
Additional Features
Moving table style
Table size 60" x 120"
Travels
X 126"
Y 73"
Z 8.8"
Feed rates
X 2100 IPM
Y 1200 IPM
Z 1200 IPM
Spindle Type HSD BT30
Router 10.5 HP
Router speed 3000-24,000 RPM
Overall dimensions 95"x140"x 85"H
Weight (Approx.) 9,000 lbs
Equipped With
Thermwood Model 91,000 Super control.

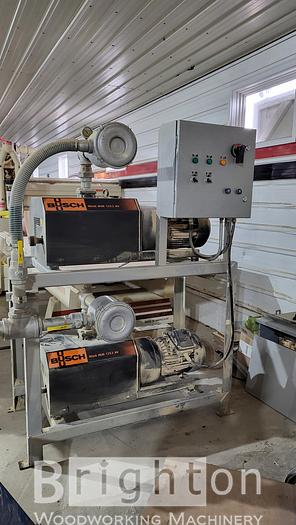

High Flow Vacuum Pumps

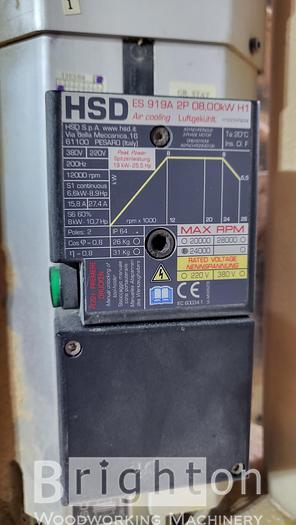

10.5 Variable Speed HSD Spindle, 3000-24,000 RPM Model ES 919A
Tool measuring device.
2 x bush pumps Vacuum Table
Automatic Tool Changer, 4 Position on table.
