2005 Homag Brandt Optimat KDN 650C used edgebander #BBM2290
2005 Homag Brandt Optimat KDN 650C used edgebander #BBM2290
Location:Ontario, Canada
Description

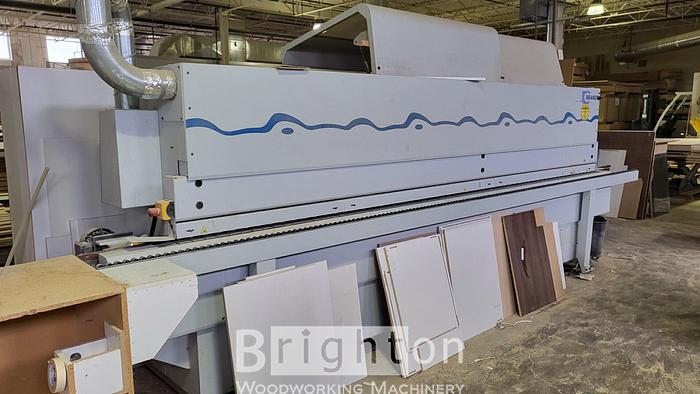

2005 Homag Brandt Optimat KDN 650C used edgebander with Corner Rounding
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Homag |
| Model | Brandt Optimat KDN 650C used edgebander |
| Year | 2005 |
| Condition | Used |

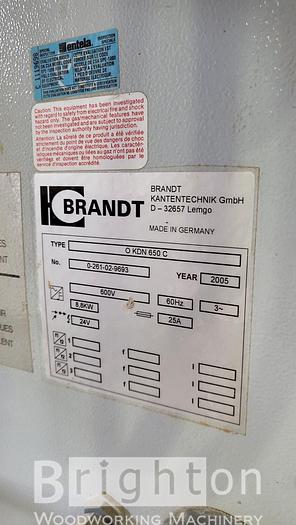

| Serial Number | 0-261-02-9693 |
| Stock Number | BBM2290 |
| Quality | Very Good |
| Electrics | 600 / 3Ph / 60 Hz, 25 amp |
| Weight | approx 4000 lbs |
| Shipping dimensions | 216" L x 48" W x 80" H |
Additional Features
Brandt "KDN 650 C" Edgebander
0.4 - 12 mm (1/2") Edgeband thickness cap.; 12 - 60 mm (1/2" - 2-3/8") edgeband height; panel thickness 8 mm (5/16") min. and 55 mm (2-3/16") max.; min. panel length 160 mm (6-3/8") and min. width 65 mm (2-3/8").

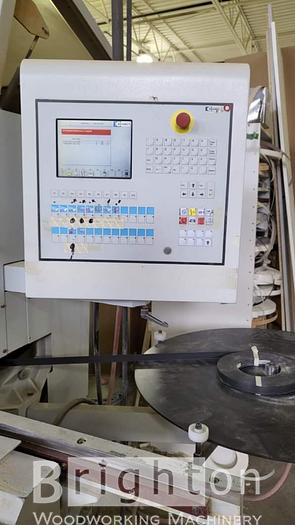

Line control (NO limit switches) for workstation function; automatic height adjustment top pressure beam for all work station; equipped with digital height indicator.

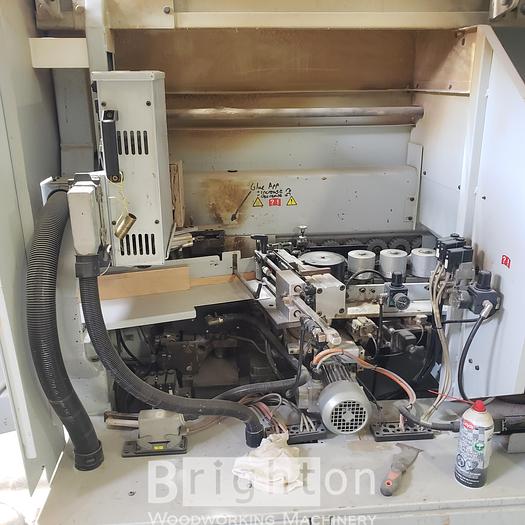

Quick heat-up hot-melt granulate glue system (12 Min heat up time) "quick-change" glue tank for maintenance & extra included; reversible and retractable glue application roller.
Automatic magazine for strip & coil, large coil table 800 mm dia. to accommodate large coils of 3 mm PVC, 3 mm PVC guillotine.
One (1) driven roller and (3) three idle rollers
End trim (1/3 HP - 12,000 RPM motors), chamfers 0° - 15° with program controlled indexing from straight to bevel.
Top & bottom fine/radius trim, (0.75 HP - 12,000 RPM motors) with insert knives for 3 mm PVC radius; bevels 0° - 25° w/program controlled indexing.

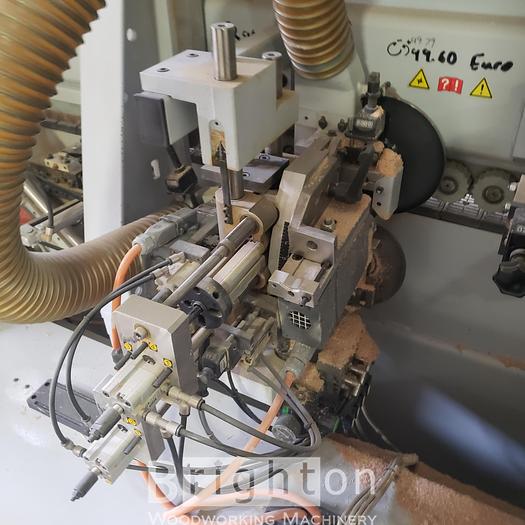

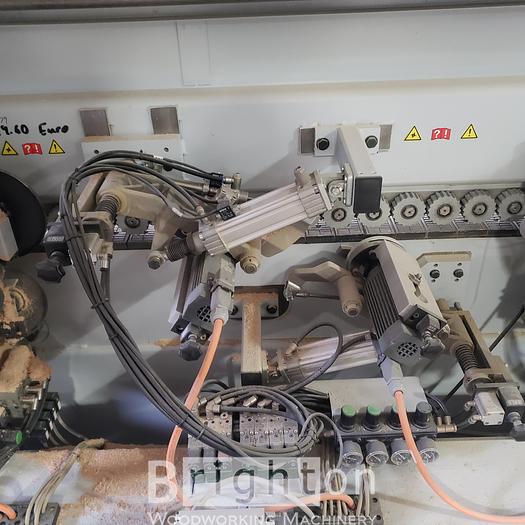

2-Motor (4-corners) contour trim for profile corner rounding with (2) 0.5 HP - 12,000 RPM motors, insert knives for 3 mm PVC radius.
Top & bottom scraping for 2 - 6 mm radius w/program controlled indexing, pneumatically controlled blow-off nozzles. External collection box.
Top & bottom buffing (0.25 HP - 2,800 RPM motors), inlcinable horiz. and vertically.
2-Speed feed chain, 36 FPM slow speed (used when corner rounding) & 46 FPM fast speed, 3 HP feed drive motor; automatic feed track lubrication system.
