2018 Silver *******SOLD, payment not complete, SMZ- 54B Like new Used line boring machine #BM2284
2018 Silver *******SOLD, payment not complete, SMZ- 54B Like new Used line boring machine #BM2284
Location:Ontario, Canada
Description
*Reduced from $6500!*
Like new Used line boring machine.
Owner sold because they needed Vertical and Horizontal boring machine with a smaller foot print. This was taken in on trade. 2018 Silver SMZ- 54B
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Silver |
| Model | *******SOLD, payment not complete, SMZ- 54B Like new Used line boring machine |
| Year | 2018 |
| Condition | Used |
| Stock Number | BM2284 |
| Quality | Very Good |

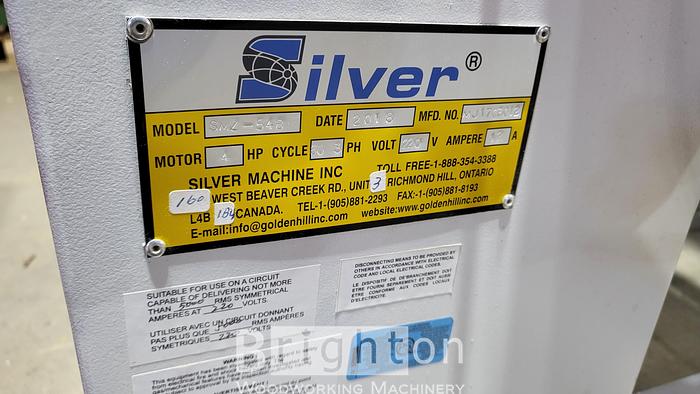

| Electrics | 220 / 3 Ph / 60 Hz |
Shipping details
| Width | 8 ft |
| Height | 3 ft |
| Length | 5 ft |
| Weight | 600 kg |
Additional Features

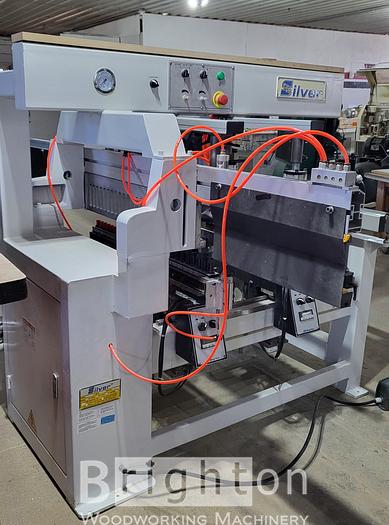

SMZ-54B two-line vertical boring machine has 27 spindles each line with pneumatically-controlled pedal, which controls the hold-down clamps and raise up the spindles for simultaneous boring. The boring head has air-loaded positioning pin, which are very easy for setting up longer line boring. Distance between two lines can be adjusted with digital measurement display.
Features:

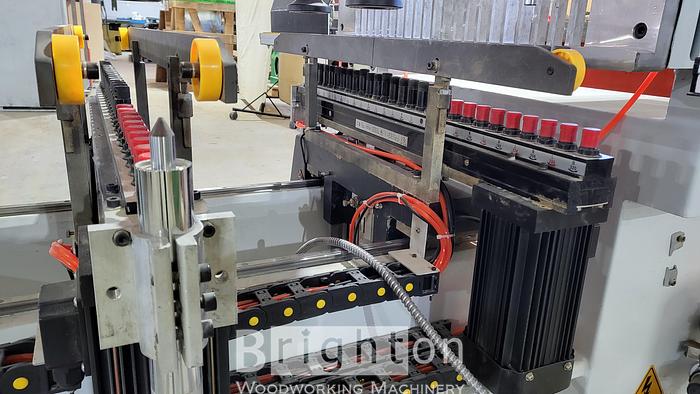

• Double paralleled line vertical boring machine with 27 spindles each line at 32mm centers
• Pneumatic boring cycle by convenient foot pedal
• Adjustable boring feed speed
• Adjustable boring depth for fast changeover
• 2 pairs of Pneumatic cylinder clamp for solid hold-down to the material.
• long back fence for long line boring with air stops
• pneumatic positioning pins at the end of boring head to set up for longer line boring quickly

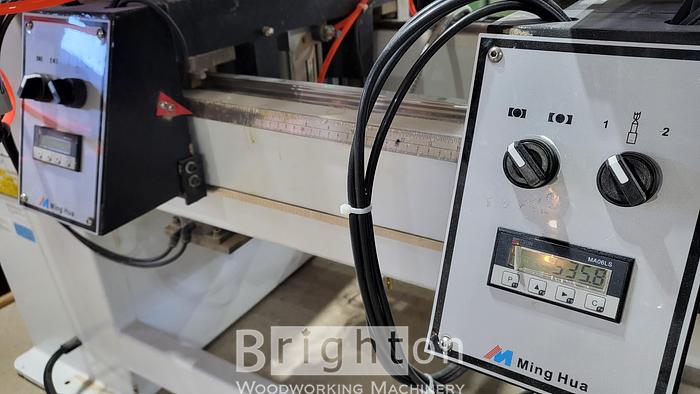

• Distance between 2 line is easily adjusted by slide linear guide with digital measurement display and air lock.
• Quick change chuck for fast changeover (28pcs included)
Specifications:
No. of Spindles................................................................................27pcs x 2
Distance between each spindle ..........................................................32mm
Distance between 2 line ............................................................ 160~700mm
Max Boring Depth ................................................................................80mm
Motor Power ....................................................................................... 2HP x 2
Spindle Rotation Speed ................................................................. 2840 rpm
Electric....................................................................................220V/60Hz/3ph
Machine Size (LxWxH)................................................... 1500x2500x900mm
Net Weight ..........................................................................................600 kgs
