2015 Felder FD921 barely used, like new, boring machine #BM2279
2015 Felder FD921 barely used, like new, boring machine #BM2279
Location:Uxbridge, Canada
Description

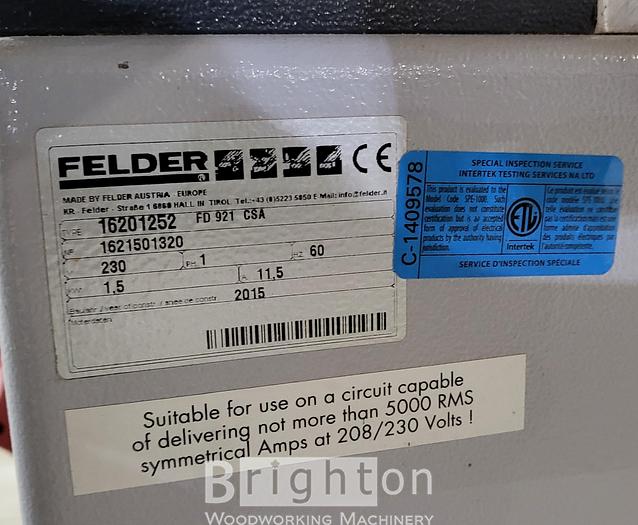

Single phase, 230 volt, 2015 Felder FD921 barely used, like new, boring machine
Specifications
Manufacturer | Felder |
Model | FD921 barely used, like new, boring machine |
Year | 2015 |
Condition | Used |
Stock Number | BM2279 |
Additional Features
Single Phase, 230 volt.
End stop: at 37 mm for cabinet hinges and line boring
Motor power 2.0 HP (1.5 kW)
Number of drilling heads 21 (11 rotate clockwise and 10 counterclockwise)
Distance between axis of drills 32 mm
drilling depth 70 mm (2¾”)
workpiece size 850 x 3000 mm (33½” x 118⅛”)
workpiece height 65 mm (2½”)
2x line boring fences 1500 mm (59”) with 2 adjustable end stops on each fence
5 Tool chucks with bayonet lock
100 psi air supply required

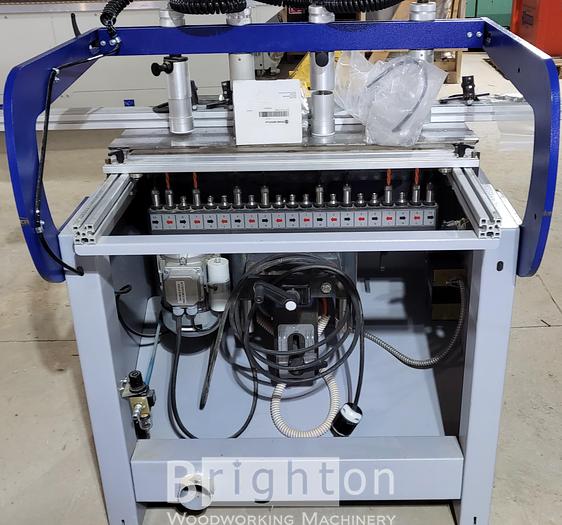

Drill head
21 spindle unit, Quick-change chucks, 32 mm system
Combination Adapter Unit for Cabinet Hinges
Adjustable throat Adjustable depth up to 300 mm
pivot the boring head to 45 degrees Boring unit tilts pneumatically
Optional Mitre fence 45°
4 x Pressure cylinders: additional pneumatic workpiece clamps; max clamping height 85 mm
Automatic drilling depth compensation unit: automatically compensates the vertical drilling depth according to the manually set horizontal drilling depth.
