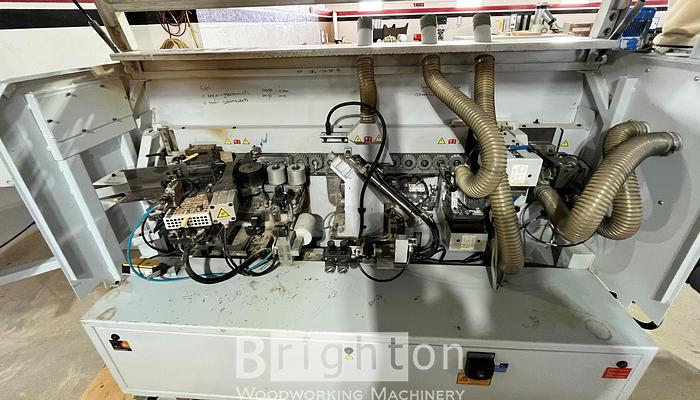

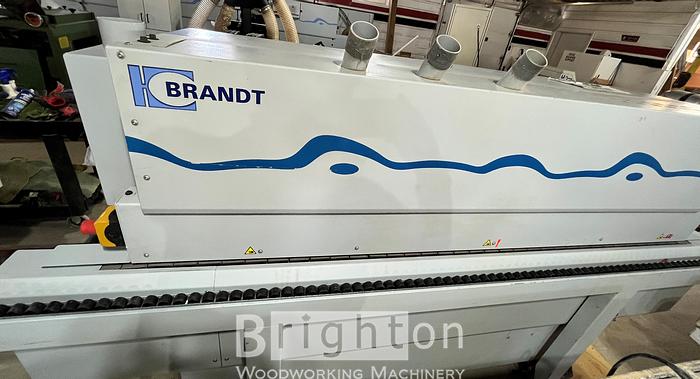

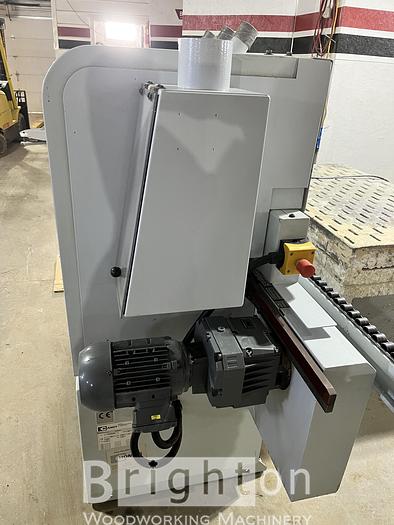

2007 Brandt KDN210 Used Edgebander #BM2269
2007 Brandt KDN210 Used Edgebander #BM2269
Location:Uxbridge, Canada
Description
The edgebander cuts with saws, milled and sanding.
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Brandt |
| Model | KDN210 Used Edgebander |
| Year | 2007 |
| Condition | Used |

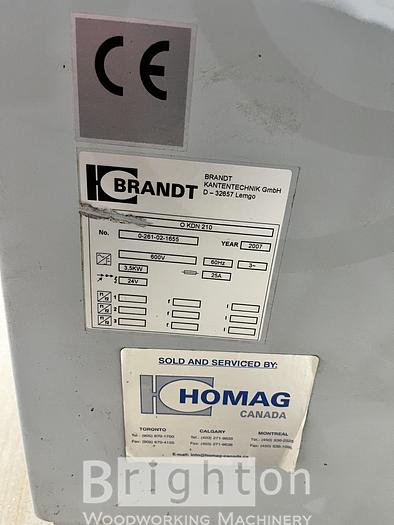

| Serial Number | 0-261-02-1655 |
| Stock Number | BM2269 |
| Quality | Very Good |
| Electrics | 600V / 3Ph / 60 Hz |
Additional Features
Used Edgebander.
30 FPM feed speed.
50 mm Panel thickness
Automatic height adjustment with top pressure beam for all work stations.
Heavy machine frame construction with heavy duty feed track design.

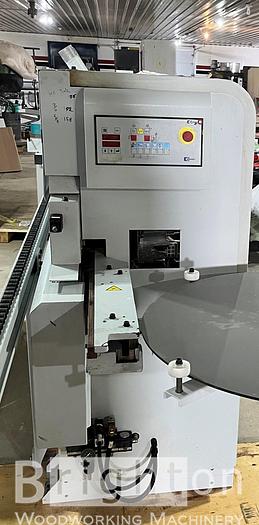

Control panel located at machine infeed for operator convenience.
Automatic magazine for strip and coil feeding.
Contact heating shoe to warm panel edge.
Hot melt granulate glue application system with 12 minute heat up time and no lubrication needed.
Automatic reduction of glue temperature if not run within 15 minutes. This feature lowers the temperature to approximately 150 degrees C. Re-heat time is approximately 2 minutes.
First pressure roller driven and two idle pressure rollers with digital setting system.
Double motor end trim unit for precision trimming with tilt range from 0>15 degrees.
Top and bottom fine trimming unit equipped with DFC cutter heads, tilt feature and radius / straight inserts.
Sound enclosure with window.
Workpiece support track extendable.
Electronic frequency changer for all trimming motors, which also includes electronic motor brakin
Power: 3.5 kW
Gluing height: 40 mm,
Machine length: 3200 mm
