2013 SCM K230 used edgebander #BM2253
2013 SCM K230 used edgebander #BM2253
Location:Uxbridge, Canada
Description

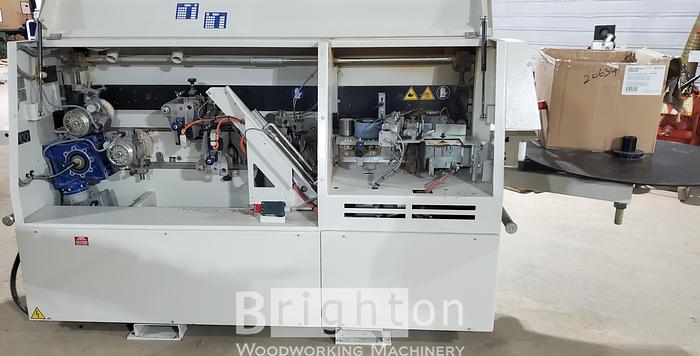

2013 SCM K 230 used edgebander
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | SCM |
| Model | K230 used edgebander |
| Year | 2013 |
| Condition | Used |
| Stock Number | BM2253 |
| Quality | Very Good |
| Electrics | 220V / 1 Ph / 60 Hz |
| Weight | 1600 lbs |
Additional Features
SCMI "Olimpic K-230" Edgebander
Edgebanding thickness, 0.4mm - 3mm (0.016" - 0.125”)
Panel height, 3/8” min – 1-15/16”
Minimum panel length, 5 1/2”
Minimum panel width, 2-3/8”
Minimum distance between panels, 22”
Feed speed, 30 FPM

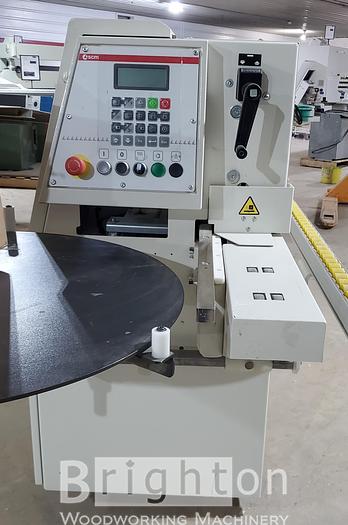

PLC with display and soft keys
Edgebanding infeed table, 32" diameter
Guillotine
3 mm capacity
Gluing station
Glue pot
Glue application roller
Pressure station
One (1) driven roller
One (1) idle roller
Two (2) motor end trimming station
Top/bottom trimming station
0.5 HP motors operating at 12,000 RPM
Top/bottom buffing station
0.25 HP motors operating at 1,620 RPM
Sound enclosure
Outboard roller track support
Forklift cutouts in frame
Estimated dimensions: 128" L x 42" W x 52" H
