2014 Cantek HS21T 21-Spindle New never used, Line Boring Machine
2014 Cantek HS21T 21-Spindle New never used, Line Boring Machine
Location:Uxbridge, Canada
Description

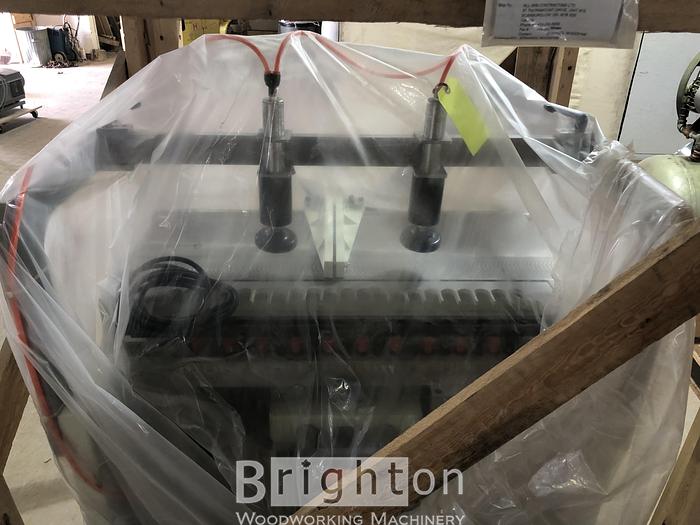

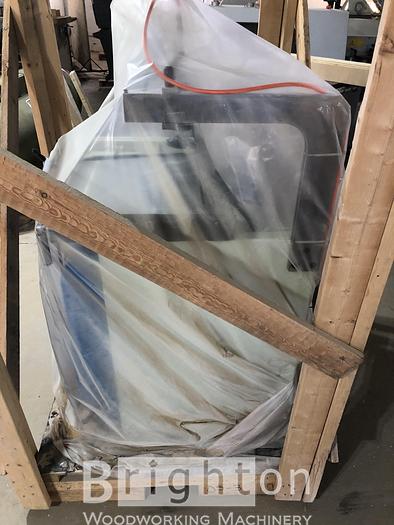

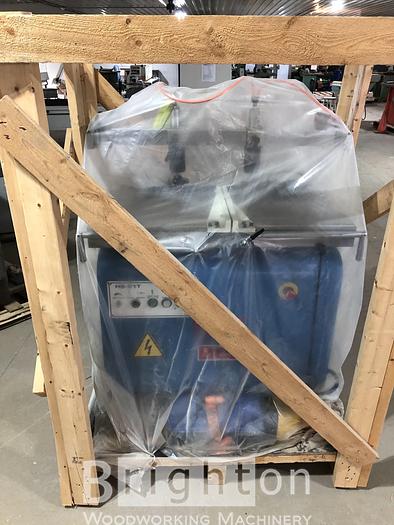

Still in original packaging/shipping crate. Single line boring machine with 21 spindles at 32mm centers. Can be changed from horizontal to vertical drilling by pneumatic setting, and tilted manually for angular drilling
2014 Cantek HS21T 21-Spindle Used Line Boring Machine
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Cantek |
| Model | HS21T 21-Spindle New never used, Line Boring Machine |
| Year | 2014 |
| Condition | Used |
| Stock Number | BM2246 |
| Quality | Excellent |
| Electrics | 575 V / 3 PH / 60 Hz |
| Weight | 946 lbs (430kgs) |
| Shipping dimensions | 45”x35”x54” (1143x889x1372mm) |
Additional Features
Features also include:
Pneumatic drilling cycle by convenient foot pedal
Adjustable drill feed speed
Two fences provides convenient positioning of the workpiece
Mechanical digital readouts are provided for precise setting of the boring head
Quick 6-position boring depth selector for fast changeover
Two fold away side fences for end boring or drilling smaller components
3 meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable
21 quick change chuck for fast changeover
SPECIFICATIONS
Distance between center 32mm
Number of spindles 21
Max. drilling depth 3” (75mm)
Boring head adjustment 0°~90°
Table size 34.33” x 19.3" (872 x 490mm)
Spindle speed 2800 RPM
Motor 2.5HP – Voltage 575/3/60
Machine weight 770 lbs (350kgs)
Shipping weight 946 lbs (430kgs)
Machine dimensions 38.11”x32 ¼” x 48” (968x820x1220mm)
Shipping dimensions 45”x35”x54” (1143x889x1372mm)
