2014 Tigerstop Tigerfence 115/1/60 new, never used Automated Rip Fence
2014 Tigerstop Tigerfence 115/1/60 new, never used Automated Rip Fence
Location:Uxbridge, Canada
Description

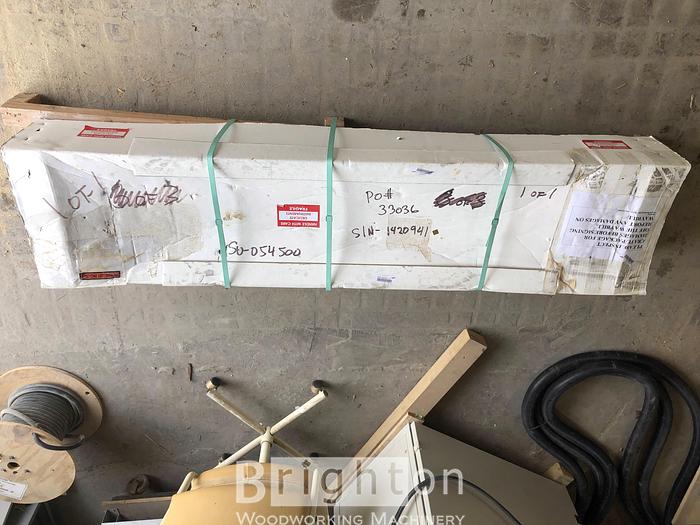

Tigerstop tigerfence 115/1/60 Used Automated Rip Fence. Still in original packing/shipping crate
INCLUDES:
Controller with stand
Controller cable
Linear positioner
Rip fence body
Precision aluminum rip fence
Installation hardware
CD Manual
Quick reference cards
Specifications
| Manufacturer | Tigerstop |
| Model | Tigerfence 115/1/60 new, never used Automated Rip Fence |
| Year | 2014 |
| Condition | Used |
| Stock Number | BM2244 |
| Quality | Excellent |
| Electrics | 115 V / 1 PH / 60 Hz |
Additional Features
SPECIFICATIONS:
Working Lengths: 51" (1295mm), Overall Length 62”
Fence Dimensions: 4.25" (108mm) x 4.25" (108mm)
Motor Box Dimensions: 5.5" (140mm) W x 4.25" (108mm) H x 10.75" (274 mm) L
Power: 120VAC @ 4 amps
Power Requirement: 120V-220V, 50Hz-60Hz
Motor Type: DC full loop servo with optical encoder
Drive Type: 3/4" multi-start hi-Lead screw drive
Precision ground linear way
Drive Speed: Up to 10" (254mm) per second
Working Weight: Not used in push applications
Repeatability: +/- 0.003" (3/1000") (+/-0.08 mm)
Absolute Accuracy: +/-0.003" (3/1000") (+/- 0.08 mm)
Display Type: Standard 4 line by 20 character high-contrast LCD
Interface Options: Can be controlled by PC or PLC
Network Options: Serial, USB, Ethernet
Standard Software: Push/pull/position/cut list
